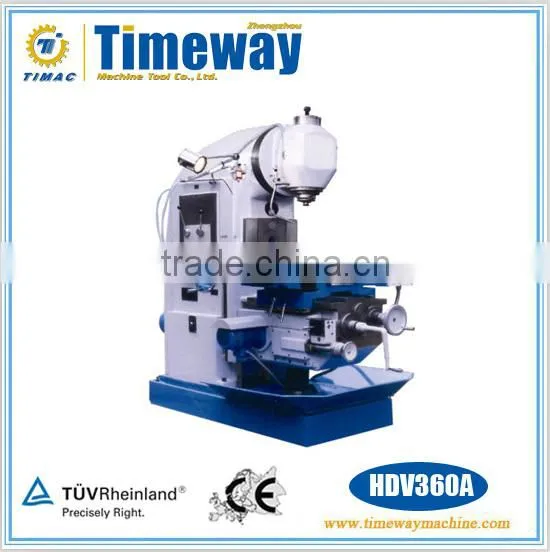

Heavy Duty Vertical Milling Machine for Sale
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
HDV320A,HDV360A,HDV400A
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Radial Arm Milling MachineNegotiableMOQ: 1 Set -
Large Diameter Gear Hobbing Machine For Cutting TeethUS$ 10,000 - 100,000MOQ: 1 Set
-
Economical Semi-Automatic and High Speed Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Economical Gear Chamfering Machine With PLC (Gear Rounding Machine)US$ 50,000 - 150,000MOQ: 1 Set
-
Universal Horizontal Screw Rod MillerUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
HDV320A,HDV360A,HDV400A
Type
Vertical
CNC or Not
Normal
Voltage
as customer's request
Power(W)
7.5KW
Dimension(L*W*H)
2360*2115*2067
Weight
4200/4500KG
Certification
CE & ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
fresadora , Heavy-duty Vertical Milling Machine
Product Description
Parameter:
| Specification | Unit | HDV320A | HDV360A | HDV400A |
| Working table | mm | 320×1400 | 360×1400 | 400×1700 |
| Number of T-slot | 3 | |||
| Width of T-slot | mm | 18 | ||
| Pitch of T-slot | mm | 80 | ||
| Longitudinal travel of table | mm | 900 | 1000 | |
| Cross travel of table | mm | 335 | 400 | |
| Vertical travel of table | mm | 450 | 480 | |
| Spindle taper | ISO50 | |||
| Range of spindle speed | rpm | 35~1830 | ||
| Max.swivel angle of vertical milling head | ±45º | |||
| Longitudinal feed range of work table | mm/min | 22-1028 | ||
| Cross feed range of work table | mm/min | 22-1028 | ||
| Vertical feed range of work table | mm/min | 9-427 | ||
| Power of main motor | kw | 7.5 | ||
| Power of feed motor | kw | 1.5 | ||
| Net weight | kg | 4200 | 4500 | |
| Overall dimension(L×W×H) | mm | 2360×2115×2067 | 2360×2515×2067 | |
