Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Fresadora , Universal Tool Milling Machine For Sale

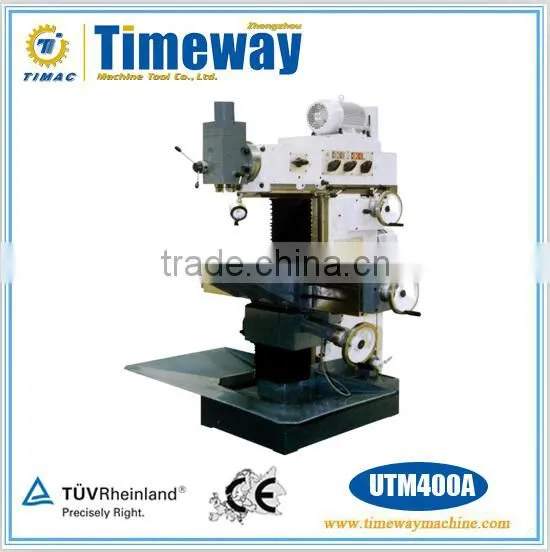

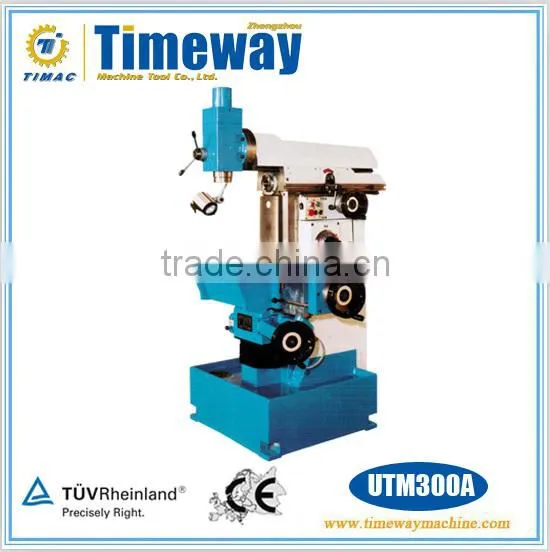

Fresadora , Universal Tool Milling Machine For Sale
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
UTM300A,UTM320A,UTM400A
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Automatic Horizontal Thread and Screw Rod MillerUS$ 10,000 - 100,000MOQ: 1 Set -
Heavy Duty Vertical Milling Machine for SaleNegotiableMOQ: 1 Set
-
Universal Radial Arm Milling MachineNegotiableMOQ: 1 Set
-
Large Diameter Gear Hobbing Machine For Cutting TeethUS$ 10,000 - 100,000MOQ: 1 Set
-
Economical Semi-Automatic and High Speed Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
UTM300A,UTM320A,UTM400A
Type
Universal
CNC or Not
Normal
Voltage
as customer's request
Power(W)
2.2KW
Dimension(L*W*H)
1170*1210*1600mm
Weight
1100/1300/1400KG
Certification
CE & ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Universal Tool Milling Machine, Chinese Tool Milling Machine
For Sale
Product Description
Standard Accessories:
Complete tool, cutter arbor(dia. φ 16,22,27,32mm), reducing sleeves(Morse1,2,3), spring collect(dia. φ 2,3,4,
5,6,8,10,12mm)
Optional Accessories:
Dividing head,machine vice, universal angular table, rotary table, boring head, 3-axis digital position indicator
Parameter:
| Specification | Unit | UTM300A | UTM320A | UTM400A |
| Work space dimensions | mm | 300×750 | 320×750 | 400×800 |
| Vertical table dimensions | mm | 225×830 | 250×1060 | |
| T-slot,work table | mm | 5×14×63 | 6×14×63 | |
| T-slot,vertical table | mm | 2×14×126 | 3×14×63 | |
| Longitudinal travel(X) | mm | 405(manual)/395 | 400 | 500 |
| Transverse travel(Y) | mm | 200 | 305(manual)/300 | 400 |
| Vertical travel(Z) | mm | 390(manual)/380 | 400(manual)/390 | 400 |
| Min.horizontal spindle | mm | 35 | 85±63 | 95±63 |
| Max.horizontal spindle | mm | 425 | 485±63 | 475±63 |
| Min.vertical spindle | mm | 85±63 | 55±63 | |
| Max.vertical spindle | mm | 440±63 | 445±63 | |
| Max.throat | mm | 188 | 160 | 540 |
| Range of spindle speed | r/min | 40-1600 | 40-2000 | |
| Spindle taper | ISO40,taper 7:24 | |||
| X,Y,Z axis feeds | mm/min | 10-380 | ||
| Rapid feed | mm/min | 1200 | ||
| Stroke of quill | mm | 80 | ||
| Power of main motor | kw | 2.2 | 3 | |
| Power of feed motor | kw | 3.59 | 5 | |
| Weight | kg | 1170×1210×1600 | 1215×1200×1800 | 1390×1430×1820 |
| Dimensions(L×W×H) | mm | 1100 | 1300 | 1400 |
