Small-type Ordinary Horizontal Milling Machine For Spline Shaft

Name: Small-type Ordinary Horizontal Milling Machine For Spline Shaft
Brand: TIMAC
SKU: 140796670
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

HM6008

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number HM6008

Type Horizontal

CNC or Not Normal

Voltage 380V 50Hz

Power(W) As actual situation

Dimension(L*W*H) 1830*1790*1700mm

Weight 4500kg

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Small-type Ordinary Horizontal Milling Machine For Spline Shaft

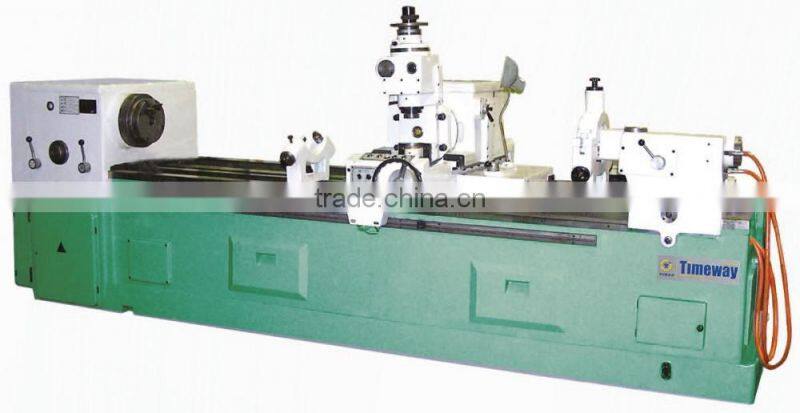

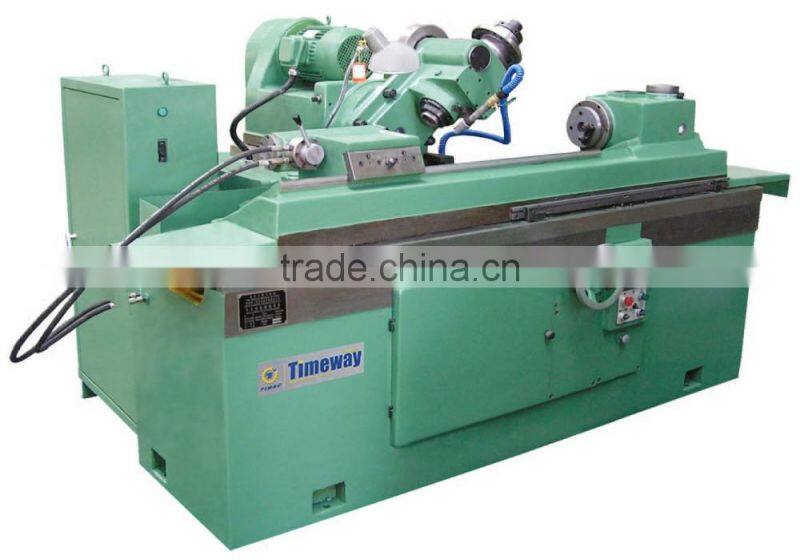

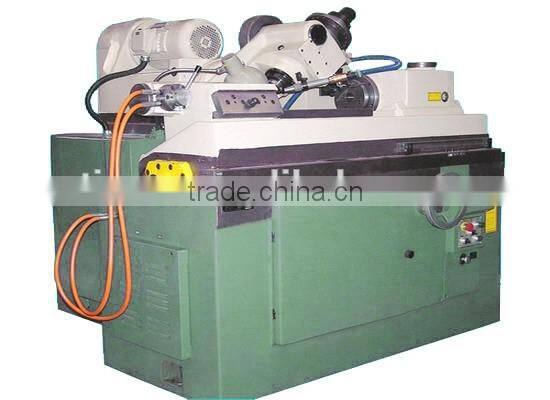

HM6008 HM6012 HM6212 HM6016 HM6020

Main Outlook

Product Description

Performance and Feature

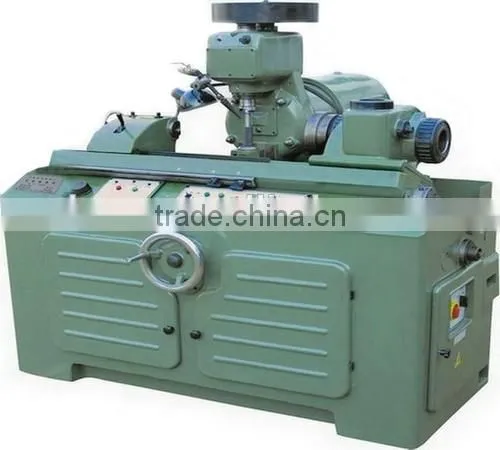

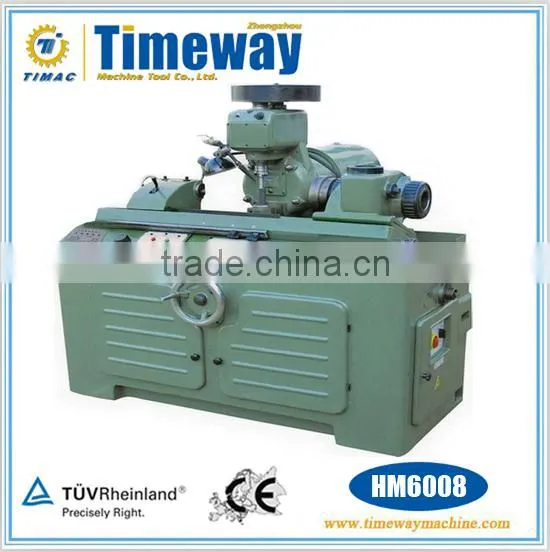

HM6008 horizontal miller can hob straight fluted splines and straight-tooth gears or the straight-tooth gears, cylindrical connecting rod gears and other gears (less than 24 teeth).
HM6212 horizontal universal milling machine can hob spline shafts with different teeth, or straight-tooth gears, skewed tooth cylindrical connecting rod gears and other gears (less than 36 teeth).

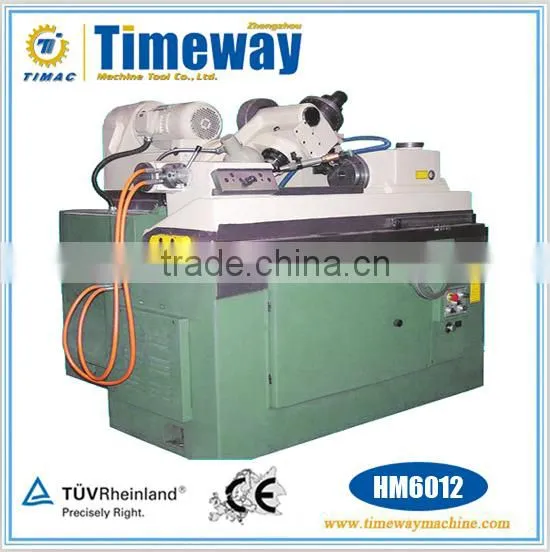

HM6012 horizontal hobbing machine can hob straight fluted splines and straight-tooth gears or the straight-tooth gears, cylindrical connecting rod gears and other gears (less than 36 teeth).

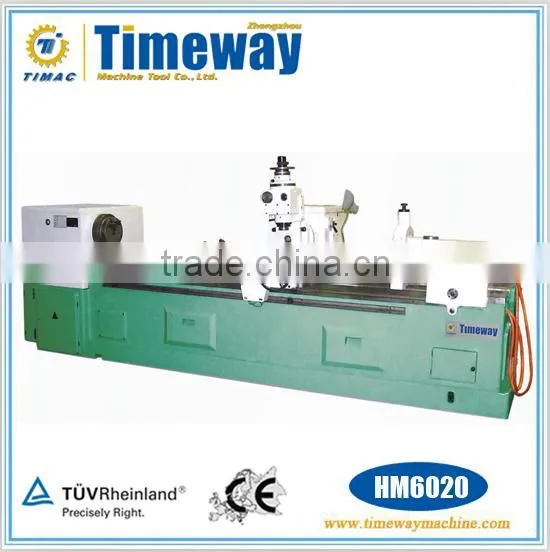

HM6016(HM6020) spline shaft milling machine can hob long spline shafts with straight flutes, or gear shafts with straight flutes.

Specifications List

Technical Parameter

Specification	HM6008	HM6012	HM6212	HM6016	HM6020
Max.diameter to be machined	80mm	125mm	125mm	160mm	200mm
Max.length to be machined	600mm	400mm	900mm	1350mm	2300mm
No.of teeth to be machined	4~24	4~36	4~36	4~36	4~50
Max.diameter of milling cutter to be mounted	140mm	130mm	130mm	130mm	130mm
Max.length of milling cutter to be mounted	140mm	115mm	115mm	130mm	110mm
Max.shifting of hob	40mm	40mm	40mm	40mm	40mm
Overall dimensions (LxWxH)	1830x1790x1700mm	1905x1868x1653mm	2575x1868x1653mm	3225x1607x1640mm	4225x1607x1640mm
Weight of the machine	4500kg	4500kg	5800kg	6800kg	8500kg
Workpiece to be machined	Straight flute	Straight flute	Straight flute Helical flute	Straight flute	Straight flute
