Stocking ! Vertical Knee - type Milling Machine VM320W
- 50 Set / Sets per Month
- China Port
- T/T
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | VM320W |
Type: | Vertical | CNC or Not: | Normal | Voltage: | As cutomers' request |
Power(W): | 7.5kw | Dimension(L*W*H): | 2294 x 1770 x 1904mm | Weight: | 2800kg |
Certification: | CE; ISO9001 | Warranty: | 1 Year After Delivery |
Product Description
Specifications

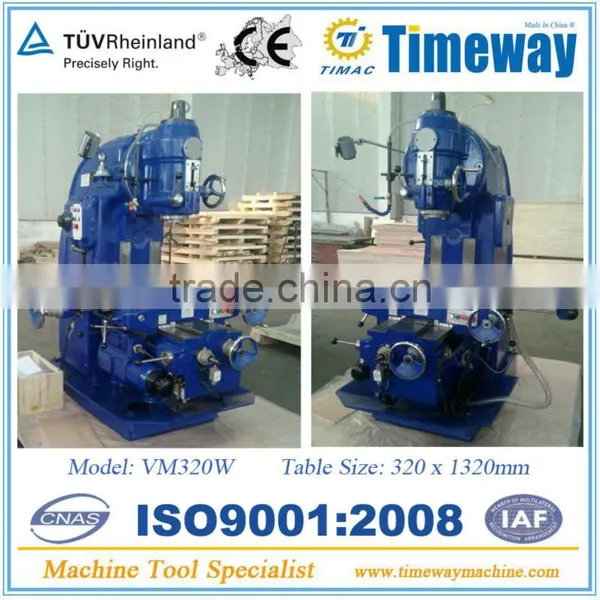

Vertical Knee - type Milling Machine- 320 x 1320mm Table Size
- 700(680) x 255(244) x 350(330)mm Table Travel (X/Y/Z axis)
Promotion ! Stocking Machine On Sale With Lowest Price
Name: Vertical Knee - type Milling Machine
Model: VM320W
Feature Included:
- 320 x 1320mm Table Size
- 700(680) x 255(244) x 350(330)mm Table Travel (X/Y/Z axis)
- 7:24, No.50 Spindle Taper
- 30-1500r.p.m Spindle Speed(18steps)
- 7.5kw Main Motor Power
- Machine Weight: 2800kg
- Overall Size: 2294 x 1770 x 1904mm
Name: Universal Knee - type Milling Machine
Model: US260A
Feature Included:
- 260 x 1120mm Table Size
- 600 x 270 mm Table Travel (X/Y-axis)
- 125mm Max. End Milling Capacity
- 25mm Max. Vertical Milling Capacity
- ISO40 Spindle Taper
- 360°Swivel Angle of Milling Head
- 45-1660r.p.m Spindle Speed
- 2.2kw Main Motor Power
- Machine Weight: 1400kg
- Overall Size: 1655 x 1500 x 1730mm
Name: Precision Gap-bed Lathe
Model: CM-400 x 1000
Feature Included:
- 1000mm Distance Between Centers
- Φ410mm Swing Over Bed
- Φ255mm Swing Over Cross Slide
- Φ580mm Swing Over Gap
- Φ52mm Spindle Bore
- 45-1800r.p.m Spindle Speed(16steps)
- 2.8kw Main Motor Power
- Machine Weight: 1850kg
- Packing Size: 2060 x 900 x 1640mm
Name: Precision Gap-bed Lathe
Model: GH-1860
Feature Included:
- 1500mm Distance Between Centers
- Φ450mm Swing Over Bed
- Φ285mm Swing Over Cross Slide
- Φ696mm Swing Over Gap
- Φ80mm Spindle Bore
- 40-1600r.p.m Spindle Speed(12steps)
- 5.5kw Main Motor Power
- Machine Weight: 2800kg
- Packing Size: 2920 x 1140 x 1680mm
Name: Vertical Drilling Machine
Model: D3
Feature Included:
- 25mm Max.Drilling capacity
- 100mm Column Diameter
- 150mm Spindle Travel
- MT3 Spindle Taper
- 100-2900r.p.m Spindle Speed (8steps)
- Φ440mm Table Size
- 560mm Table Travel
- 225mm Throat Depth
- 630mm Spindle to table
- 1.1kw Motor Power
- Machine Weight: 300kg
- Packing Size: 1760 x 600 x 830mm
Name: Hack Sawing Machine
Model: HS7125
Feature Included:
- Max.cutting capacity
Round bar: Φ250mm
Square bar: 220 x 220mm
- 45°Oblique Saw
- 43,50,60,86,100,120time/min Sawing speed
- 450 x 40 x 2.25mm Saw Blade Size
- 3.22kw Motor Power
- Machine Weight: 830kg
- Packing Size: 2000 x 950 x 1300mm
