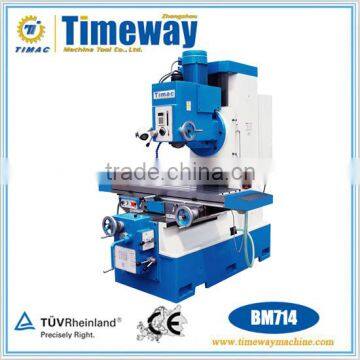

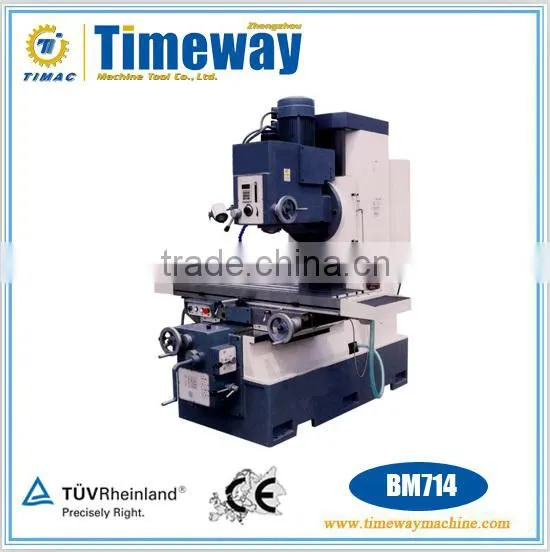

Bed Type Vertical Milling Machine For Sale (BM714)
Features:
* Large sturdy box construction and ribbed frame to reduce vibration.
* Large flat guides, hardened and ground, guarantee stability, even under heavy milling loads.
* Manual quill stroke, service is effected via a handwheel.
* Infinitely adjustable speed range(18-1800rpm) with high torque and spindle brake.
* High table load capacity(800kg) due to massive MEEHANITE cast iron construction.

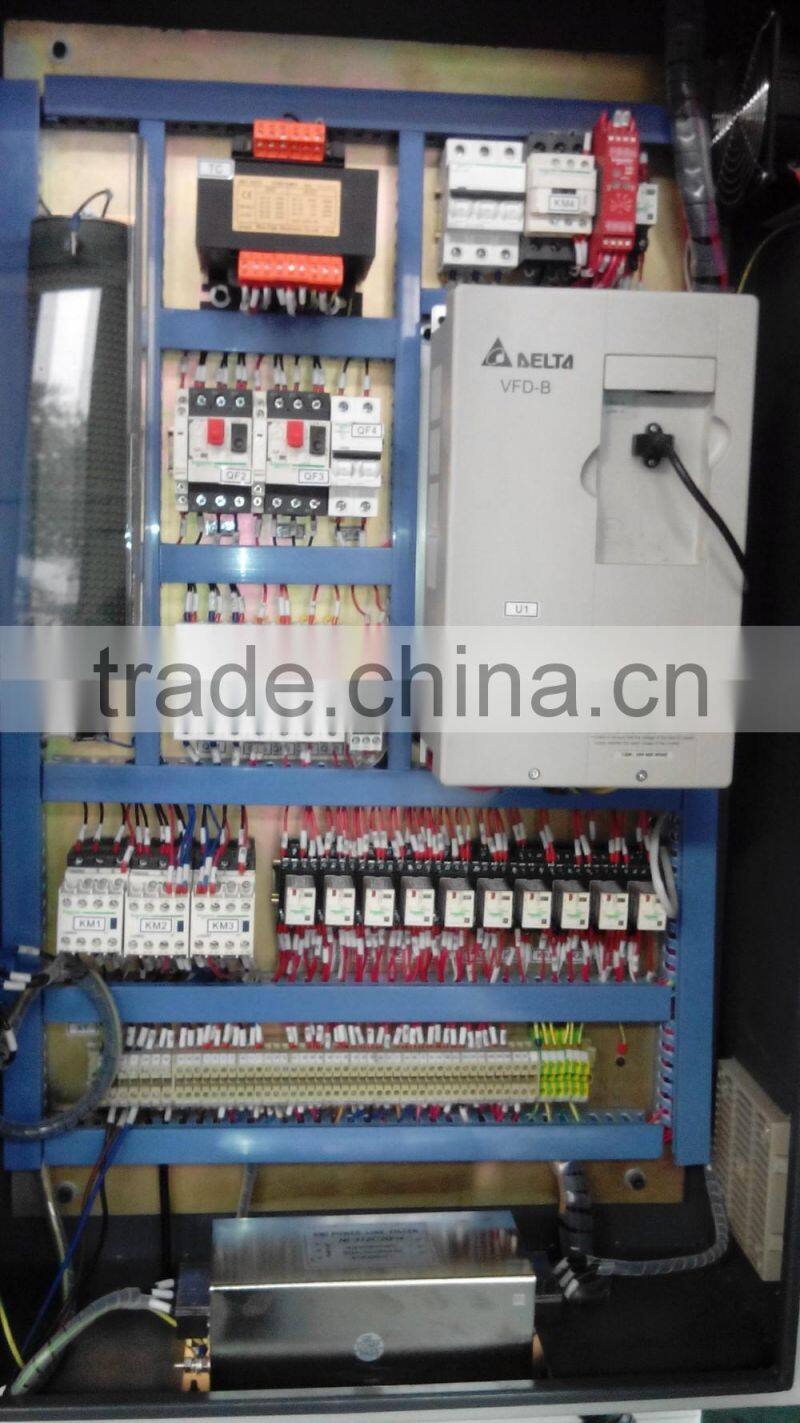

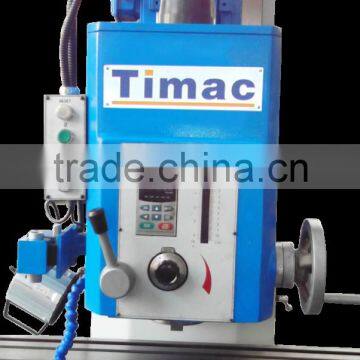

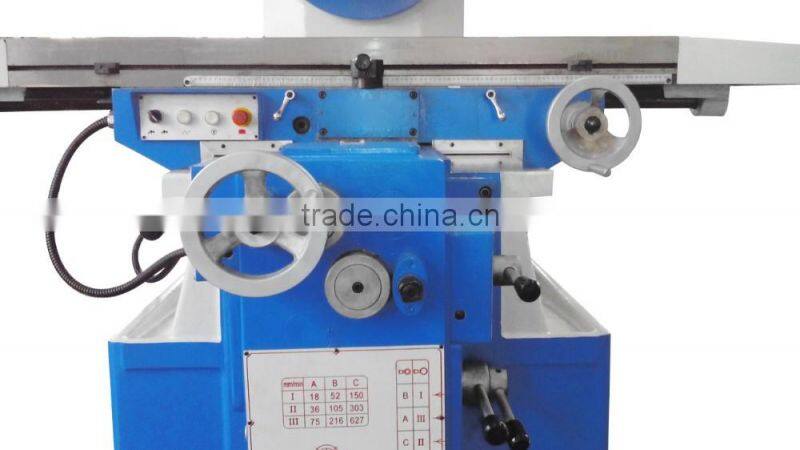

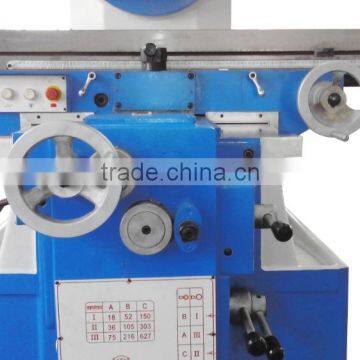

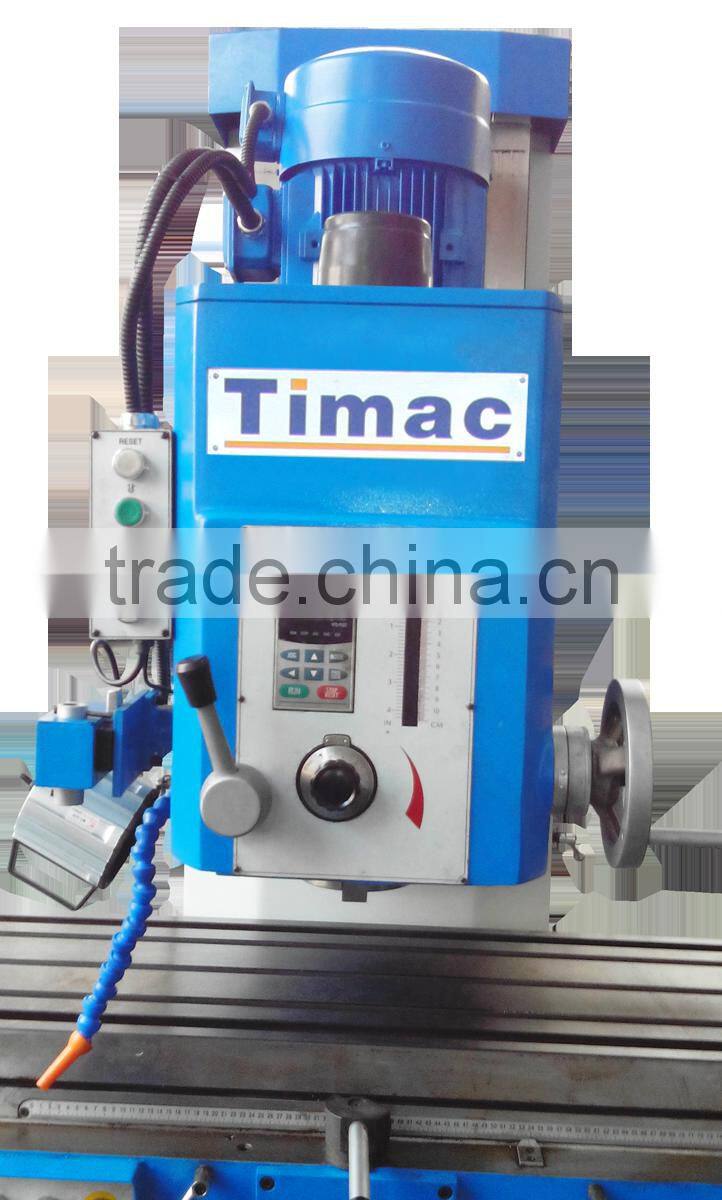

• Spindle • Worktable • Electronic Cabinet
Standard Accessories:
7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling chuck
Optional Accessories:
3 axes digital readout system (DRO), Vice, 58pcs clamping kits, Rotary worktable, Dividing head
Parameter:
| Technical specifications | BM714 | |
| Table dimensions | 1400x400 mm | |
| T-slots (number x width x spacing) | 3x14x100 mm | |
| Axis travel: | X | 800 mm |
| Y | 400 mm | |
| Z | 500 mm | |
| Spindle taper | 7:24 SK 50 (DIN 2080) | |
| Spindle speed (infinite) | 18–1800 rpm | |
| Head swiveling angle | ±30° | |
| Quill travel | 105 mm | |
| Extension | 510 mm | |
| Spindle-to-table distance | 150–650 mm | |
| Axis travel: | X | 18–627 mm/min (9 steps) |
| Y | 18–627 mm/min (9 steps) | |
| Z | 1000 mm/min | |
| Rapid traverse in Z-axis | 1670 mm/min | |
| Main motor | 7.5 kW | |
| Dimensions (LxWxH) | 2290x1840x2120 mm | |
| Weight | 3860 kg | |
