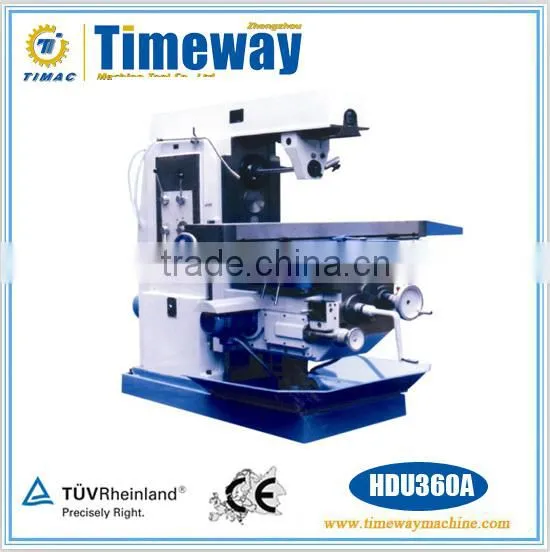

Fresadora / Swivelling Worktable Heavy Duty Universal Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
HDU320A,HDU360A,HDU400A
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bed Type Vertical Milling Machine For Sale ( BM713 )NegotiableMOQ: 1 Set -
Stocking ! Vertical Knee - Type Milling Machine VM320WUS$ 4,000 - 5,500MOQ: 1 Set
-
Bed Type Vertical Milling Machine For Sale ( BM714 )US$ 2,000 - 30,000MOQ: 1 Set
-
Universal Tool Milling Machine for Sale ( UTM400A )NegotiableMOQ: 1 Set
-
Universal Self-Automatic Horizontal Thread and Screw Rod MillerUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
HDU320A,HDU360A,HDU400A
Type
Universal
CNC or Not
Normal
Voltage
as customer's request
Power(W)
7.5KW
Dimension(L*W*H)
2360*2115*2067
Weight
4200/4300KG
Certification
CE & ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
fresadora , Heavy-duty Universal Milling Machine
Product Description
Parameter:
| Specification | Unit | HDU320A | HDU360A | HDU400A |
| Working table | mm | 320×1400 | 360×1400 | 400×1800 |
| Number of T-slot | 3 | |||
| Width of T-slot | mm | 18 | ||
| Pitch of T-slot | mm | 80 | ||
| Longitudinal travel of table | mm | 900 | 1000 | |
| Cross travel of table | mm | 335 | 400 | |
| Vertical travel of table | mm | 450 | 480 | |
| Spindle taper | ISO50 | |||
| Range of spindle speed | rpm | 30~1525 | ||
| Max..swivel angle of working table | ±45º | |||
| Min.distance between spindle and table surface | mm | 30 | ||
| Longitudinal feed range of work table | mm/min | 22-1028 | ||
| Cross feed range of work table | mm/min | 22-1028 | ||
| Vertical feed range of work table | mm/min | 9-427 | ||
| Power of main motor | kw | 7.5 | ||
| Power of feed motor | kw | 1.5 | ||
| Net weight | kg | 4200 | 4300 | |
| Overall dimension(L×W×H) | mm | 2360×2115×2067 | 2360×2515×2067 | |
