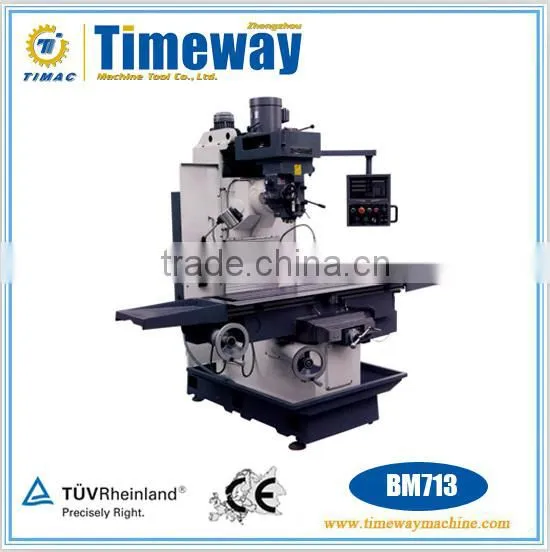

(1525mm*320mm table size) Bed Type Vertical Milling Machine Made in China For Sale ( BM713 )
Features:
* Large sturdy box construction and ribbed frame to reduce vibration.
* Large flat guides, hardened and ground, guarantee stability, even under heavy milling loads.
* Manual quill stroke, service is effected via a handwheel.
* Infinitely adjustable speed range(18-1800rpm) with high torque and spindle brake.
* High table load capacity(800kg) due to massive MEEHANITE cast iron construction.
Standard Accessories:
7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling chuck
Optional Accessories:
3 axes digital readout system (DRO), Vice, 58pcs clamping kits, Rotary worktable, Dividing head
Parameter:
Specification |
Unit |
BM713 |
Spindle taper |
|
ISO40 |
Table size |
mm |
1525×320 |
Table travel |
mm |
1050×470 |
Spindle quill travel |
mm |
127 |
NO./width/distance of T-slot |
mm |
3-14-80 |
Spindle speed steps |
|
10 steps |
Spindle speed range |
r.p.m |
70~3620 |
Spindle feed rate capacity |
r/min |
0.045mm; 0.086mm; 0.142mm /rev |
Distance between spindle axis and column guideway |
mm |
450 |
Distance between spindle nose and table surface |
mm |
75-595 |
Spindle motor power |
HP |
5 |
Overall dimension(L×W×H) |
mm |
2565×1920×2290 |
Net weight |
kg |
2520 |
