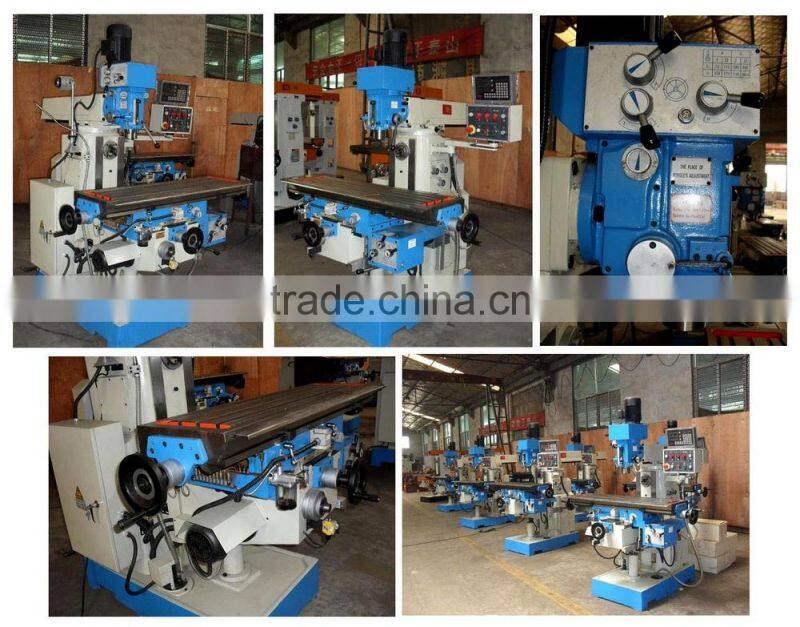

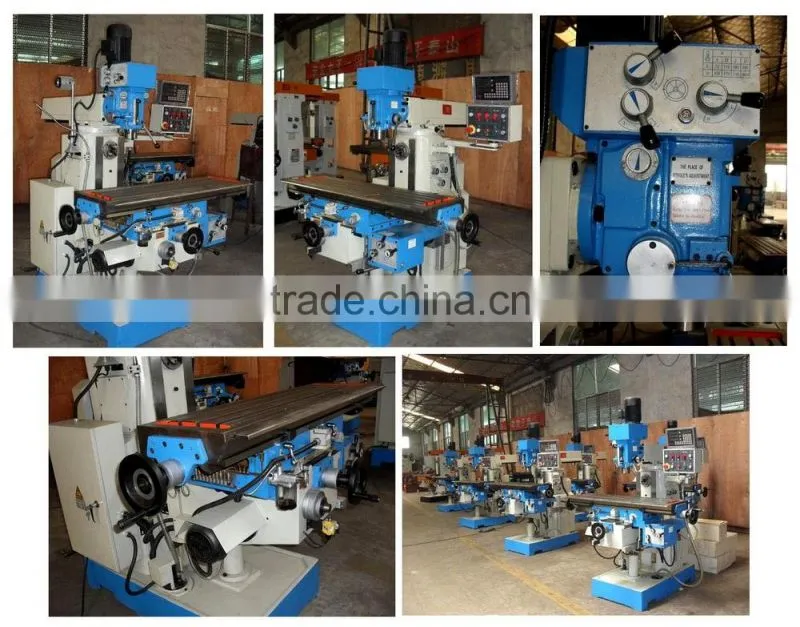

Milling Drilling Machine For Sale Made In China
Features:
1. Headstock swivels ±90°;
2. Drill depth stop with display of measurement;
3. Spindle sleeve automatic feed with 3 speeds;
4. There is hand wheel to realize manual type fine feeding of spindle sleeve;
5. Hardened and ground table surface with high stability;
6. Automatic feeds on X, Y axes, motorized lifting and lowering of table on Z axis
Standard Accessories:
Drill chuck, Mill collets, Draw bar, Machine vise, Horizontal mill arbor, Coolant system, Work lamp, Table elevating motor, Convergent panel, Wrench, Spanner, Middle sleeve, Elevating rotary handle, Oil collecting plate, Operation manual.
Optional Accessories:
3-axes DRO, 58pcs clamping kits, Rotary worktable, Universal dividing head
Parameter:
Specification |
Unit |
MD600 |

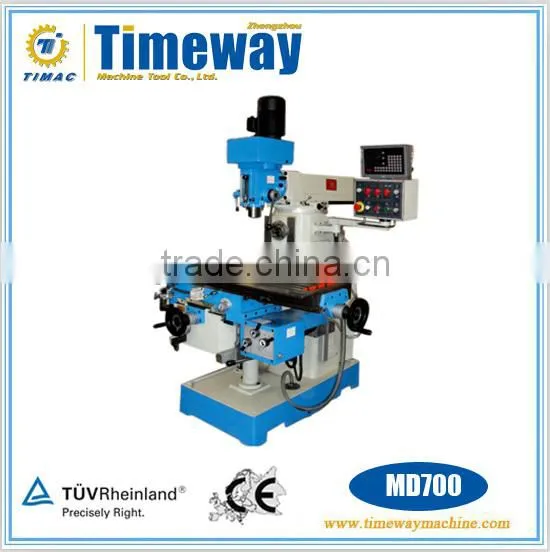

MD700 |

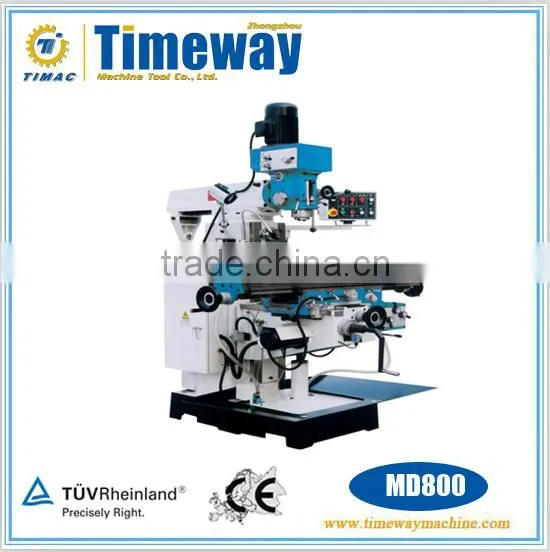

MD800 |
Spindle taper |
|
ISO40(V),ISO40(H) |
||
Diameter of quill |
mm |
100 |
||
Distance from spindle to table |
mm |
90-370 |
90-490 |
|
Distance from horizontal spindle |
mm |
0-280 |
0-400 |
|
Distance from spindle to column |
mm |
200-700 |
||
Spindle speed |
rpm |
(8steps)115-1750(V), |
(8steps)60-1500(V), |
(8steps)90-2000(V), |
Spindle travel |
mm |
120 |
||
Quill feed |
mm |
------ |
(3steps)0.15, 0.08, 0.25 |
|
|
Max. drilling capacity of auto-feeding |
mm |
------ |
12 |
14 |
Head swivel |
|
±90º |
||
Table size |
mm |
1250×320 |
1250(1370)×320 |
|
Table travel |
mm |
600/300/280 |
600(720)/300/400 |
|
X,Y axes feed speed |
mm/min |
22-555 |
||
X,Y axes rapid feed speed |
mm/min |
1080 |
||
Z axis rapid elevate speed |
mm/min |
590 |
||
Z axis rapid elevate motor power |
w |
750 |
||
Max. weight of workpiece |
kg |
200 |
300 |
|
T-slot(No./width/distance) |
mm |
3/14/70 |
||
Main motor |
kw |
1.5(V),2.2(H) |
2.2(V),2.2(H) |
|
X,Y axes auto-feed drive motor |
w |
750 |
||
Coolant pump power |
w |
40 |
||
Overall dimension |
mm |
1780×1500×2100 |
1700×1500×2270 |
|
Net/gross weight |
kg |
1450/1550 |
1550/1650 |
|
