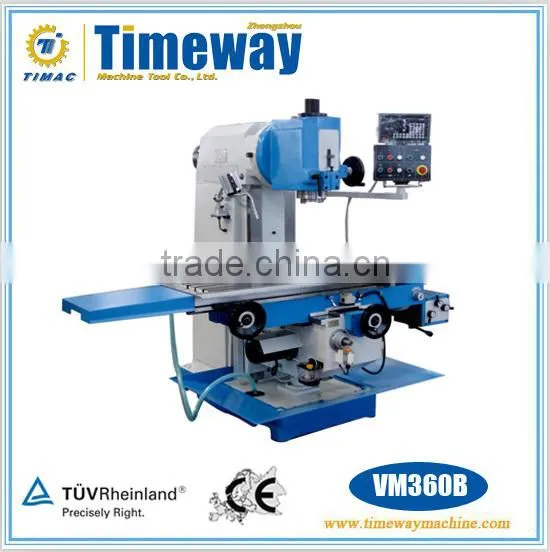

Fresadora, Vertical Knee Type Milling Machine for Sale

Name: Fresadora, Vertical Knee Type Milling Machine for Sale
Brand: TIMAC
SKU: 140796622
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

VM360A,VM360B

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number VM360A,VM360B

Type Vertical

CNC or Not Normal

Voltage as customer's request

Power(W) 4KW

Dimension(L*W*H) 1900*1850*1800

Weight 2100kg

Certification CE & ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Vertical Knee Type Milling Machine For Sale At a Low Price

Product Description

Features:

* Hardened and ground table surface;

* Automatic feeds on X,Y axes, motorized rise and fall of table on Z axis;

* Rectangular column guide way with high stability.

Parameters:

Specification	Unit	VM360A	VM360B
Spandle taper		IS050
Distance from spindle nose to table	mm	6-540
Spindle speed	r.p.m	(12steps)60-1700
Table size	mm	1250×360
Table travel (longitudinal/cross/vertical)	mm	600/320/450	1000/320/450
X,Y axes feed speed	mm/min	22-555(steps)
X,Y axes rapid feed speed	mm/min	1080
Z axes rapid elevate speed	mm/min	590
Max. weight of worlpiece	kg	400
T-slot (No./width/distance)	mm	3/18/80
Main motor	kw	4
X,Y axes auto-feed drive motor	w	750
Z axis motor power	w	1100
Coolant pump power	w	90
Overall dimension(L×W×H)	mm	1900×1850×1800	2500×1850×1880
N.W/G.W	kg	2100/2200	2200/2300
