Fresadora , Vertical Turret Milling Machine
- 100 Set / Sets per Month
- China Port
- T/T
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | 4SF/4VF, 4S/4V, 5S/5V, 5SF/5VF, 6S/6V, 6SF/6VF |
Type: | Vertical | CNC or Not: | Normal | Voltage: | as your request |
Power(W): | depends on different models | Dimension(L*W*H): | depends on different models | Weight: | depends on different models |
Certification: | CE & ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

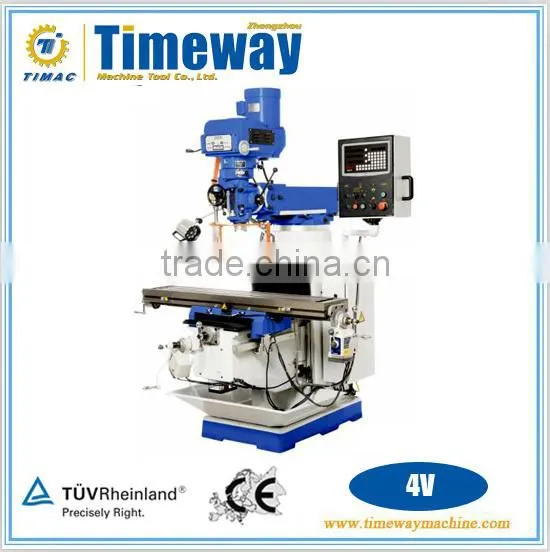

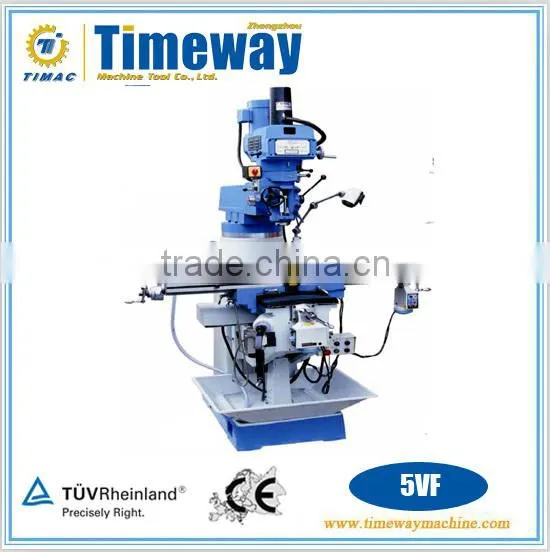

Vertical Turret Milling Machine / Universal Radial Arm Miller
Features:
The large number of mill head adjustments makes these robust and stable universal milling machine idea for drilling and milling simple to difficult workpiece in single part production, repair work training etc.
1.Work table features large clamping area, surface hardened and polished,
2.Universal mill head can be turned, tilted and swiveled.
3.Hardened and polished guideways in all axis.
4.3 automatic spindle feeds come standard.
5.Spindle is chromium plated and features micrometer depth stop.
6.Powerful coolant device included in machine base.

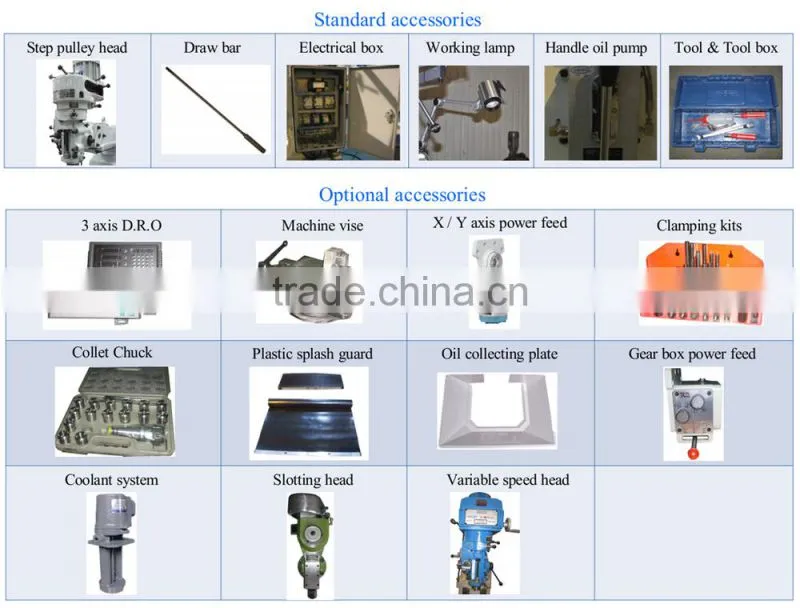

Standard Accessories:
Draw bar, Electric cabinet, LED machine light, Handle oil pump, Coolat device, Tool box & tools,
Operation manual(English)
Optional Accessories:
Inverter milling head, Air drw bar, 2/3-axis digital readout(DRO), Spindle feed ruler, Spindle protect guard, Worktable protect guard, Plastic splash guard, Electronic central lubrication, Coolant tray,Electro power feed for X/Y/Z axis, Gear box power feed, Table lifting motor,
Rotary table, Dividing head, Slotting head, Machine vise with swivel base,
Milling chuck collects kits 8/15 pcs, Deluxe clamping kit set 58 pcs.
Parameter:
Specification | Unit | 4SF/4VF | 4S/4V | 5S/5V | 5SF/5VF | 6S/6V | 6SF/6VF | |
mm | M250C | M250D | M300 | M300A | M330 | M330A | ||
Table size | mm | 254×1270(10"×50") | 305×1370(12"×54") | 330×1370(13"×54") | ||||
mm | 254×1370(10"×54") | 305×1500(12"×58") | 330×1500(13"×58") | |||||
Longitudinal travel(X) | mm | 850/950 | 870/1000 | 870/1000 | ||||
Cross travel(Y) | mm | 400 | 380 | 360 | ||||
Vertical travel(Z) | mm | 400 | 380 | 400 | ||||
T-slot (No.*Size) | mm | 3×16 | ||||||
Over ram travel | mm | 470 | 500 | |||||
Spindle to table | mm | 0-400 | 0-350 | 0-450 | ||||
Spindle taper |
| ISO40 | ||||||
Spindle travel | mm | 127 | ||||||
Spindle speed | r.p.m | 50HZ:65-4540 60HZ:80-5440(16steps) | ||||||
60-3600(Variable) | ||||||||
Auto.quill feed | mm/r | Three steps:0.04 (0.0015") / 0.08(0.003") / 0.15(0.006") | ||||||
Spindle motor | HP | 3.75KW(5HP) | ||||||
Head swivel(L&R) | º | 90 | ||||||
Head tilting(F&B) | º | Fix | 45º | Fix | 45º | Fix | ||
Type of guide way | X | Dovetail | Dovetail | Dovetail | ||||
Y | Rectangular | Rectangular | Rectangular | |||||
Z | Rectangular | Rectangular | Rectangular | |||||
Packing | One | mm | 1516×1550×2080 | 1566×1650×2080 | 1800×2016×2180 | |||
Two | mm | 1650×1790×2170 | 1720×1800×2175 | 1800×2200×2180 | ||||
Three | mm | 1650×2285×2235 | --- | --- | ||||
Gross weight | kg | 1490 | 1490 | 1430 | 1650 | 2200 | 2250 |
Note:
1.S models equip with Taiwan Made Step Pulley Milling Head.
2.V models equip with Taiwan made Variable Speed Milling Head.
3.X,Y axis adopt Auto.feed gear box as Stanardard(3SU/3VU).
4.Z axis adopts high speed lifting motor as standard (5S/5V, 5SF/5VF, 6S/6V, 6SF/6VF).
