Fresadora / Bed Type Universal Swivelling Head Milling Machine ( BM716 )

Name: Fresadora / Bed Type Universal Swivelling Head Milling Machine ( BM716 )
Brand: TIMAC
SKU: 140796614
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

BM716

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number BM716

Type Other, Universal Swivelling Head Milling Machine

CNC or Not Normal

Voltage as your request

Power(W) 11kw

Dimension(L*W*H) 4300 * 3200 *3300

Weight 10000kg

Certification CE & ISO

Warranty One year after delivery

After-sales Service Provided Engineers available to service machinery overseas

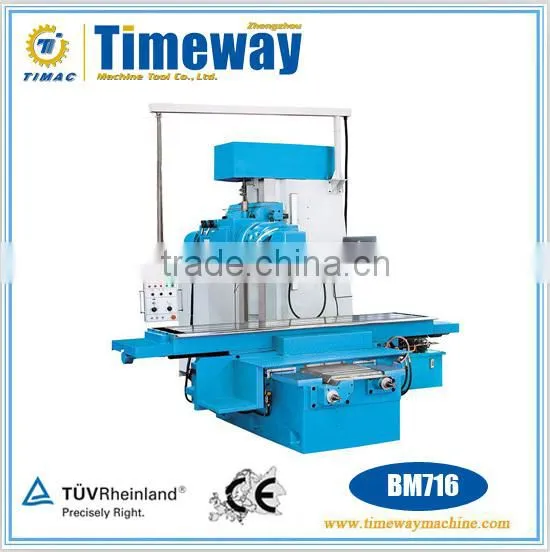

Bed Type Universal Swivelling Head Milling Machine ( BM716 )

Product Description

Main features:

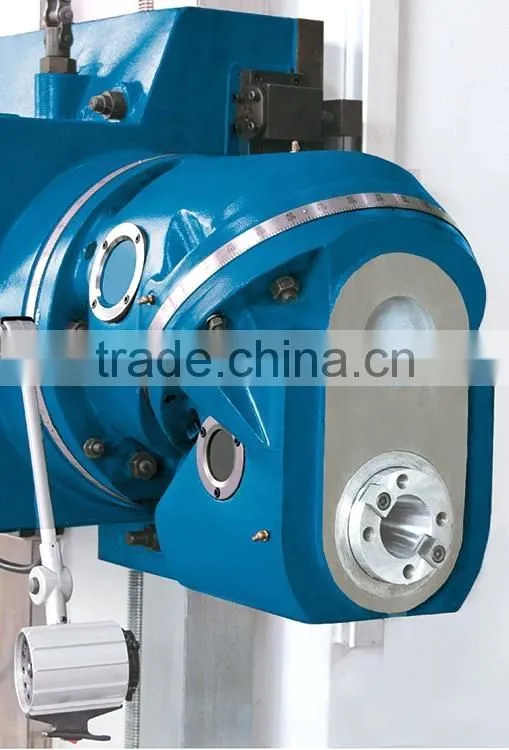

*Manual swivel milling head with the possibility of rotation in two planes

*The universal milling head can be adjusted to any angle in the range of 360 °

including horizontal

Parameter:

Specification	Unit	BM716
Table size	mm	2500 × 575
Table travel (X,Y,Z)	mm	1800 (2000) × 600 × 900
Min. distance from hor. spindle axis to worktable surface	mm	30
Min. distance from vertical spindle nose to worktable surface	mm	49
Distance from vertical spindle axis to column guideway	mm	110
Spindle speed range	rpm	40-1200
Number / Width / Distance of T-slot	mm	3-22-152
Spindle taper	-	ISO 50
Longitudinal, transverse feed speed range	mm/min	20-2200
Rapid feed speed (X,Y)	mm/min	3000
Feed speed range	mm/min	12-1320
Rapid feed speed (Z)	mm/min	1800
Spindle motor power	kw	11
Max. load of worktable	kg	3000
Overall dimension (L×W×H)	mm	4300 × 3200 × 3300
Machine weight	kg	10000
