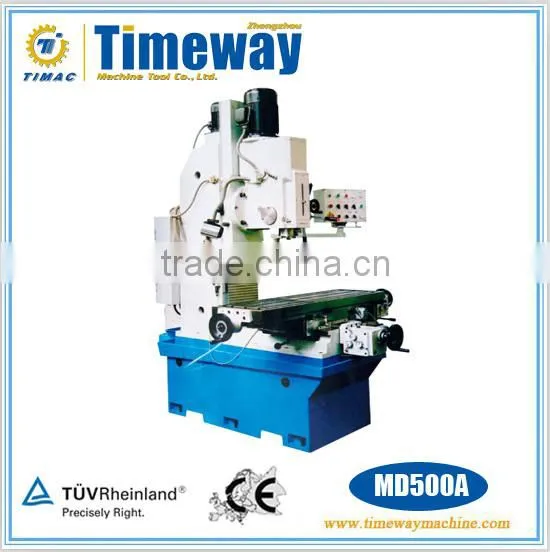

Fresadora / Milling Drilling Machine / Vertical Milling Machine ( MD500A )
- 300 Set / Sets per Month
- China Port
- T/T
You May Like
-
Universal Swivelling Head Knee Type Milling Machine
-
Fresadora , Vertical Turret Milling Machine
-
Fresadora, Vertical Knee Type Milling Machine for sale
-
Universal Milling Drilling Machine For Sale Made In China
-
Fresadora / Vertical Turret Milling Machine
-
Vertical Turret Miller , Swivel Head Milling Machine For Sale
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | MD500A | Type | Vertical | |
| CNC or Not | Normal | Voltage | as customer's request | |
| Power(W) | 1.2/2.4KW | Dimension(L*W*H) | 1730*1730*2300mm | |
| Weight | Net weight / gross weight:1760/2000kg | Certification | CE & ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Milling Drilling Machine For Sale / Vertical Milling Machine
( MD500A )
Features:
1. Rectangular table guideways with high stability;
2. Automatic spindle feed;
3. Motorized lifting and lowering of head-stock;
4. Headstock swivels +/- 45 degrees;
5. Hardened and ground table surface.
Standard Accessories:
Drill chuck, Mill collects, Draw bar, Machine Vise, Coolant syetem, Work lamp, Wrench, Spanner, Middle sleeve, Elevating rotary handle, Oil collecting plate, Convergent panel, Operation manual(English edition).
Optional Accessories:
58pcs clamping kits, 3 axes DRO, Rotary worktable, Y-axis power feed
Parameter:
Specification | Unit | MD500A |
Max. vertical Milling diameter | mm | 32 |
Max. end milling width | mm | 125 |
Max. drilling diameter | mm | 50 |
Spindle taper |
| 7:24 ISO40 |
Spindle travel | mm | 180 |
Spindle speed range | r/min | 94-2256 (16 steps) |
Automatic feed series sleeve | mm/r | 0.1/0.15/0.3 (3 steps) |
Distance from spindle to table | mm | 100-600 |
Distance from spindle to column | mm | 400 |
Swivel angle of headstock |
| ±45º |
Up/down speed of headstock | mm/min | 2000 |
Table size | mm | 1220×360 |
Table travel | mm | 600×360 |
Table feeds range | mm/min | 18-555(8 steps) 810(max.) |
T-slot of table (No./ width / distance) | mm | 3/14/95 |
Main motor | kw | 1.2/2.4 |
Motor of table power feed | w | 370 |
Up/down motor of headstock | w | 550 |
Coolant pump motor | w | 40 |
Net weight / gross weight | kg | 1760/2000 |
Overall dimension | mm | 1730×1730×2300 |
