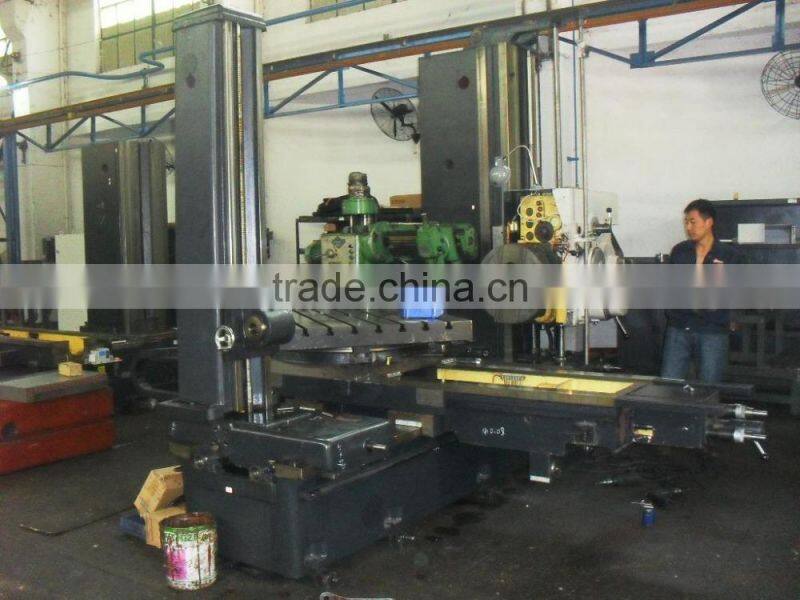

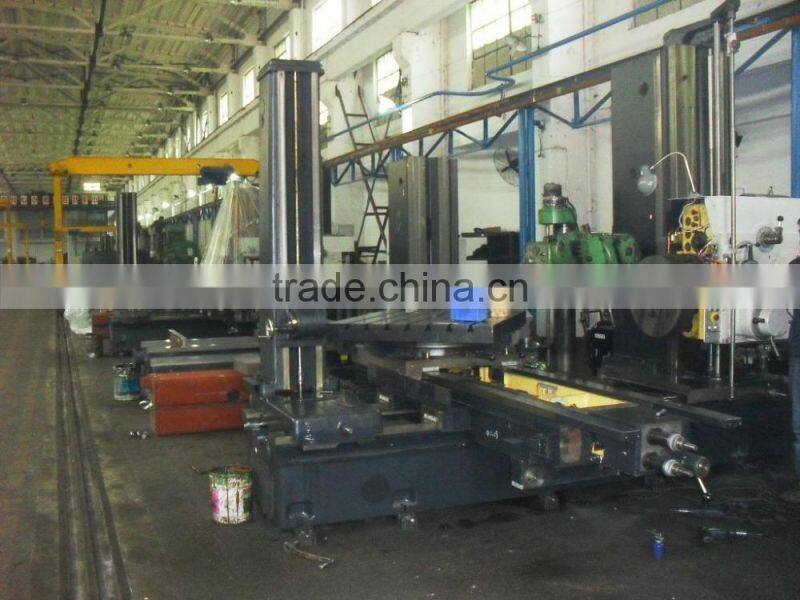

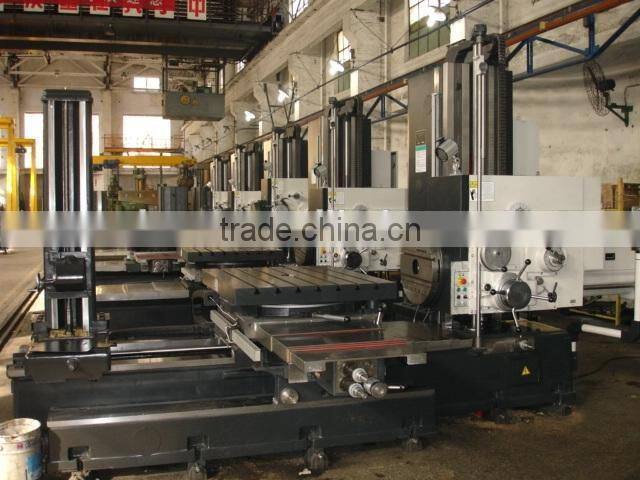

Horizontal Boring Milling Machine
Features:
1. TX-110 series horizontal boring milling machine is ordinary horizontal milling and boring machine, it adopts enhanced boring bar in the similar machine tools. It is suitable mainly for the plane milling and hole-series processing of case parts.
2. The machine tool is characterised by spindle system strong rigidity, power cutting, high processing efficiency.
3. The spindle box end is equipped with swing plate with the radial tool head, that can boring large hole and plane.
4. Choose hanging wheel rack, screw thread processing can be performed.
5. Max. load of worktable is 5T.

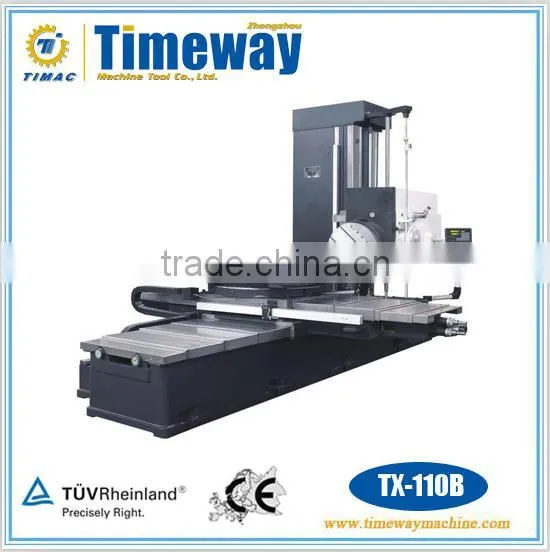

TX-110B:
1. The fundamental large parts adopt rectanglar guideway, such as bed, column, upper saddle, lower saddle, guarantee machine good stability.
2. The guideway adopt automatically centralized quantitative lubrication.
3. The machine is configurated standardly to X,Y axis digital read-out device.
4. Table adopts four single pin positioning structure,accurate positioning.

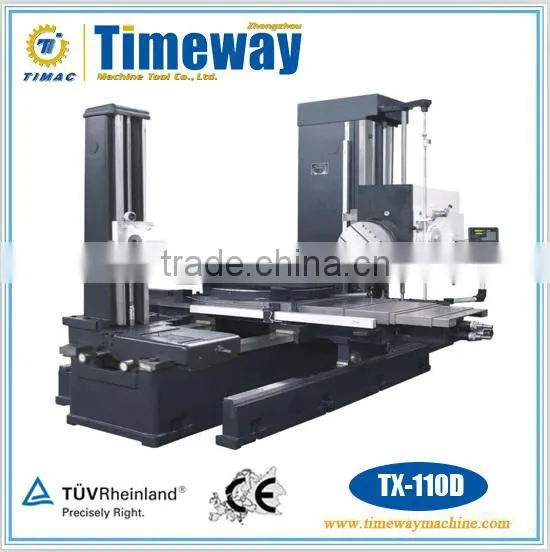

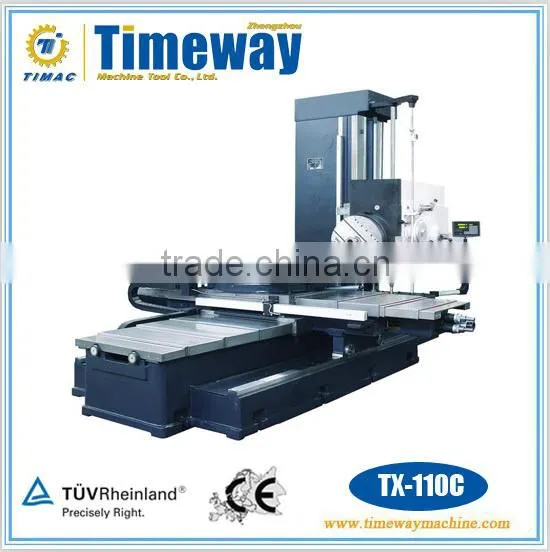

TX-110C:
The fundamental large parts adopt rectangle guideway,such as bed,column,upper saddle,lower saddle,lathe bed has inlaid steel hardening auxiliary guide rail,machine has good stability,the X coordinate schedules is bigger.
TX-110D:
The fundamental large parts adopt rectangle guideway, such as bed,c olumn, upper saddle, lower saddle, lathe bed uses disconnect-type auxiliary guide with inlaid steel hardenig, machine has good stabilit, the X coordinate schedule is bigger, machine is equipped with back column.
Optional Accessories:
Boring tool rod Facing plate frame End column Universal boring head Wrench
| Specification | Unit | TX-110B | TX-110C | TX-110D | |
| Worktable | Worktable size(L×W) | mm | 1320x1010 | 1320x1010 | 1320x1010 |
| Max. loading of worktable | kg | 5000 | 5000 | 5000 | |
| Size of T-slot | mm | 7-22-125 | 7-22-125 | 7-22-125 | |
| Machining travel | Travel of table (X) | mm | 850 | 1200 | 1800 |
| Travel of head stock (Y) | mm | 900 | 900 | 1200 | |
| Travel of table (Z) | mm | 1100 | 1100 | 1100 | |
| Travel of spindle (W) | mm | 550 | 550 | 550 | |
| Distance from spindle center to worktable | mm | 5-905 | 5-905 | 5-1205 | |
| Max. boring diameter | mm | 240 | 240 | 240 | |
| Max. machining diameter for facing plate | mm | 630 | 630 | 630 | |
| Max. drilling diameter | mm | 50 | 50 | 50 | |
| Spindle | Spindle diameter | mm | 110 | 110 | 110 |
| (optional 130) | (optional 130) | (optional 130) | |||
| Spindle speed range | rpm | 12-950 | 12-950 | 12-950 | |
| Spindle speed step | 18 steps | 18 steps | 18 steps | ||
| Spindle inner taper | Morse No.6 | Morse No.6 | Morse No.6 | ||
| Facing plate | Diameter of facing plate | mm | 550 | 550 | 550 |
| Travel of facing plate | mm | 160 | 160 | 160 | |
| Speed range of facing plate | rpm | 4-160 | 4-160 | 4-160 | |
| Facing plate speed step | 16 steps | 16 steps | 16 steps | ||
| Feeding | Rapid speed (X/Y/Z) | mm/min | 1800 | 1800 | 1800 |
| Rapid speed (W) | mm/min | 3600 | 3600 | 3600 | |
| Rapid speed | mm/min | 1120 | 1120 | 1120 | |
| (Facing plate's rack) | |||||
| Feeding range on spindle box and worktable while spindle rotates one circle | mm | 0.025-8 | 0.025-8 | 0.025-8 | |
| Feeding range on spindle box and worktable while facing plate rotates one circle | mm | 0.075-24 | 0.075-24 | 0.075-24 | |
| Feeding range on rack while facing plate rotates one circle | mm | 0.05-16 | 0.05-16 | 0.05-16 | |
| Weight of machine | kg | 12000 | 13500 | 16000 | |
| Total electric capacity | KVA | 35 | 35 | 35 | |
| Overall dimensions(L×W×H) | mm | 5016×2628×2788 | 5016x3149x2788 | 5016x3789x3148 | |
