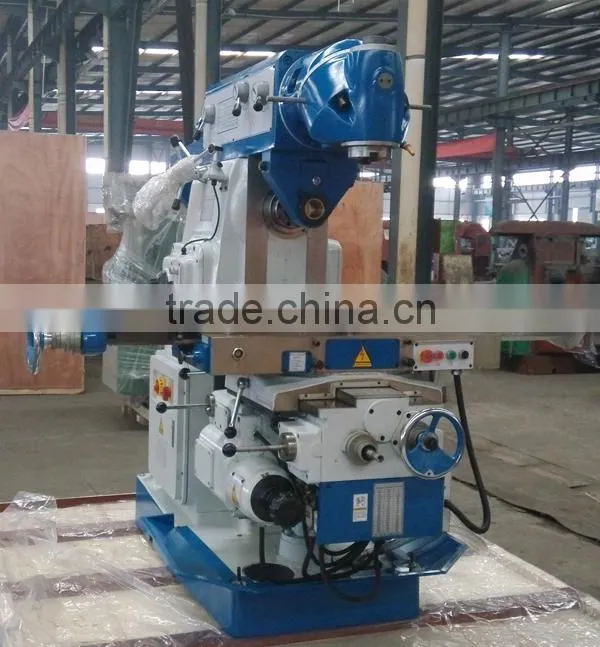

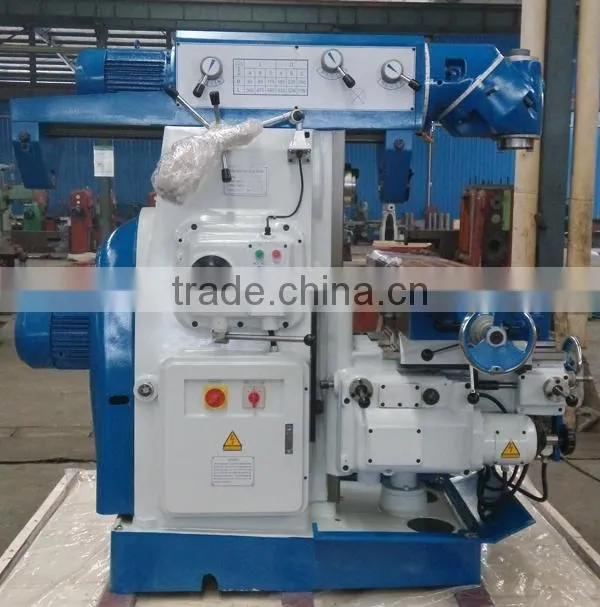

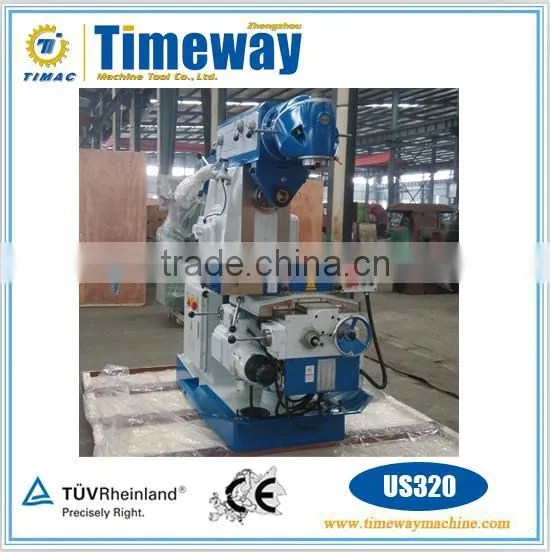

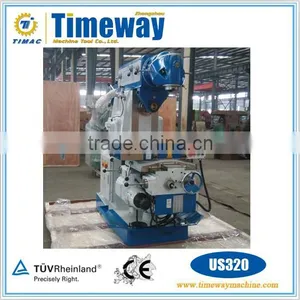

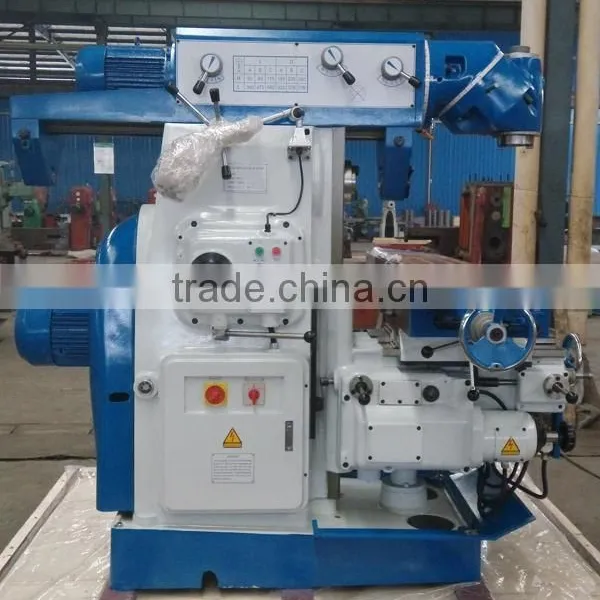

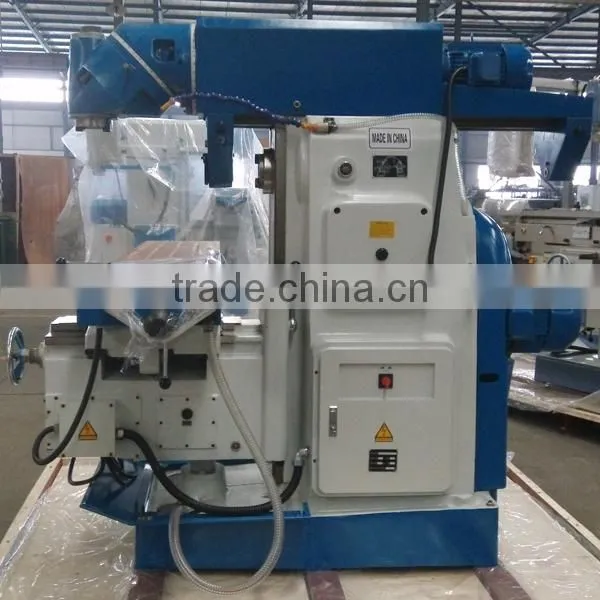

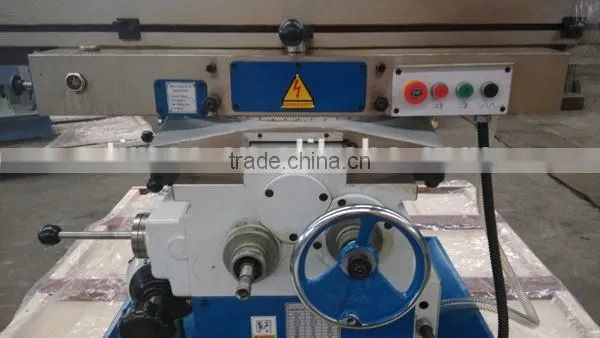

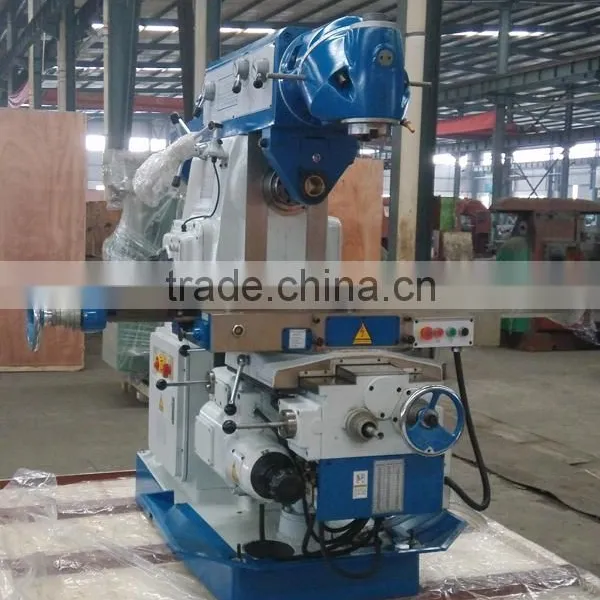

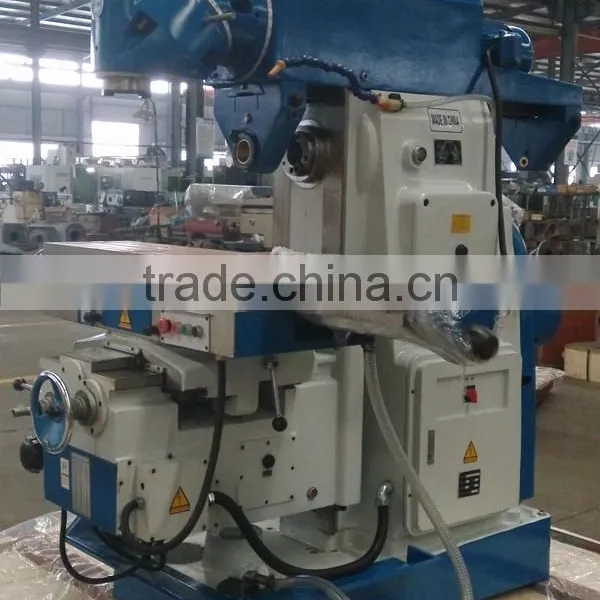

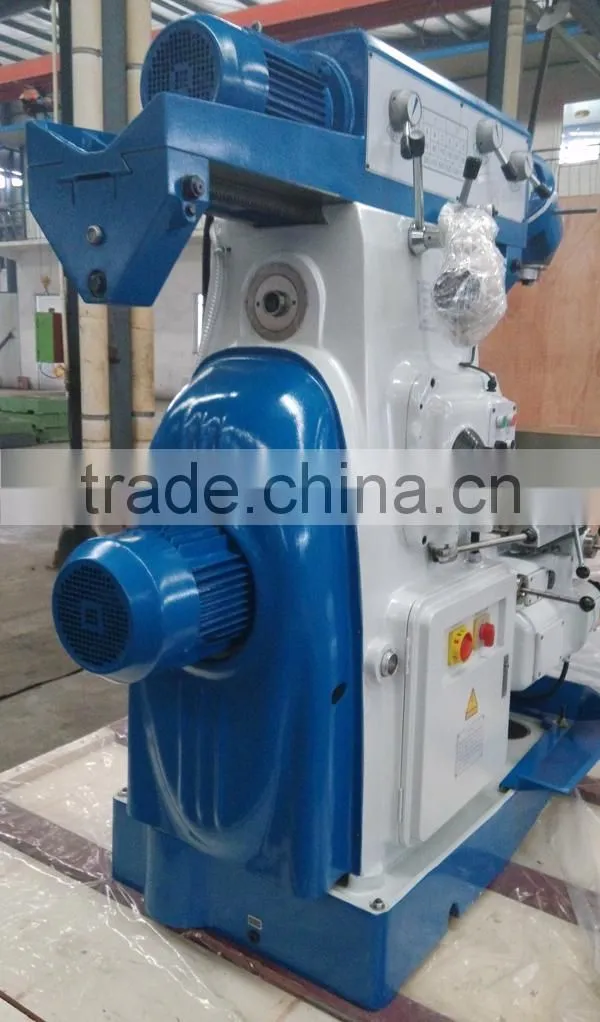

TIMEWAY Swivel Head Knee type Milling Machine US320

FOB Price

USD $16,500 - $17,900 / Set

1 Set(Min.Order)

Product Details

Swivel Head Knee type Milling Machine US320

Key Feature:

• Hardened and ground table surface;

• Rectangular column guideway with high stability;

• Automatic feeds on X, Y, Z axes;

• Worktable can swivel ±35°;

• Both horizontal spindle and swivel milling head.

Technical Specification:

Model	US320W	US360W
Table size (W×L)	320×1320mm	360×1320mm
Table travel (X/Y/Z)	1000×300×440mm	1000×280×400mm
Table t-slots(No./Width/Pitch)	5-14-63mm	3-14-95mm
Max.rotation angle of table	-	±35º
Max. loading of worktable	300kg	300kg
Spindle taper	ISO40	ISO50
Spindle speed range - Vertical	45-1660r.p.m (11steps)	50-1800r.p.m (11steps)
- Horizontal	38-1310r.p.m (12steps)	60-1750r.p.m (12steps)

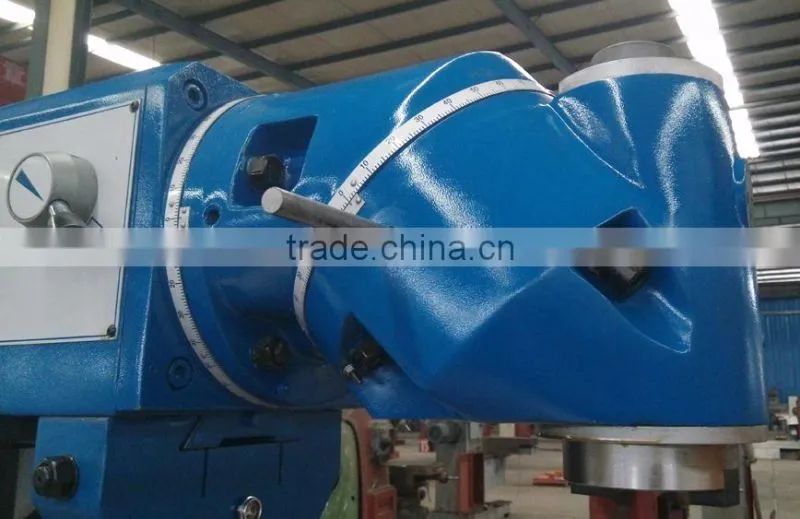

Swivel angle of milling head	±360°	±360°
Table longitudinal & cross feed (X/Y)	20-360mm/min (8steps)	22-393mm/min
Table vertical feed (Z)	422mm/min (1step)	10-168mm/min
Table rapid speed (X/Y/Z)	1200/1200/422mm/min	1290/1205/513mm/min
Vertical spindle - table	200-640mm	170-570mm
Vertical spindle - column	200-760mm	220-720mm
Horizontal spindle - table	30-450mm	0-400mm
Horizontal spindle - arm	175mm	175mm
Ram travel	460mm	500mm
Main motor power	3 kw	4 kw
Feed motor	0.55kw (X/Y), 0.75kw (Z)	1kw (X/Y/Z)
Overall dimensions (L×W×H)	2020×1710×1994mm	2070×2025×2020mm
Packing size (L×W×H)	2260×1870×2250mm	2070×1930×2250mm
N.W/G.W	2000/2200kg	2250/2450kg
Price (FOB China)

Standard Configuration:

7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling Chuck, Draw bar,

Cooling system, Working light, Operator manual.

Options & Extra Cost:

3-axis SINO D.R.O, 58pcs clamping kit, Spindle guard, Machine vise, Dividing head, Rotary table

Packaging & Shipping

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size: 2.3 x 1.77 x 1.78M N.W./G.W.: 2900/3100kg

Container loaded: 3 sets / 20'GP
