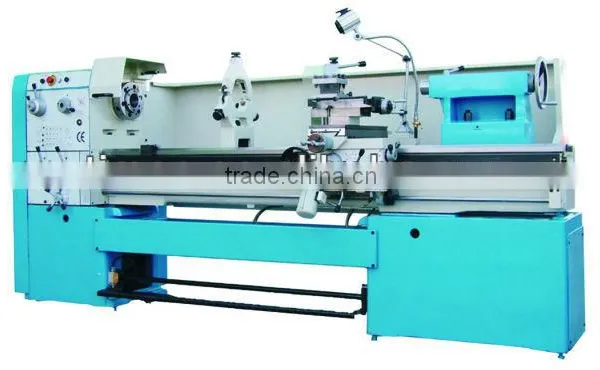

Precision Gap-bed Lathe/Universal Gap Bed Lathe/Precision Bench Lathe FL-600C

Precision Gap-bed Lathe/Universal Gap Bed Lathe/Precision Bench Lathe FL-600C thumbnail-1
Precision Gap-bed Lathe/Universal Gap Bed Lathe/Precision Bench Lathe FL-600C photo-1
US$ 3,000 - 7,985 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 600mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number FL-600C
Voltage As request
Power(W) 7.5kw
Dimension(L*W*H) 2460x1150x1800mm
Weight 1800/2500kg
Certification ISO, CE Standard
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Swing dia.400/500/600mm
2.Centre distance:1000/1500/2000mm
3.Spindle bore:B-65mm,C-80mm
4.CE norns

Model Unit FL-600C
Max.swing over bed mm 600
Max.swing over cross slide mm 360
Max.swing in gap mm 730
Center diatance mm 1000,1500,2000
Bed width mm 330
Spindle hole mm 80
Spindle nose   ISO-C8 OR ISO-D8
Spindle taper   Metric 85
Spindle speeds rpm 24-1600
Metric threads range mm 0.5-28(66kinds)
Inch threads range TPI 1-56(66kinds)
Module threads range MP 0.5-3.5(33kinds)
Diametral threads range D.P 8-56(33kinds)
Longitudinal feed range  mm/rev 0.072-4.038
Cross feed range  mm/rev 0.036-2.019
Longitudinal rapid travel  m/min 5
Max.travel of top slide mm 130
Max.travel of cross slide mm 30
Max.size of tool(W×H) mm 25×25
Tailstock sleeve diameter mm 75
Tailstock sleeve taper   Morse No.5
Tailstock sleeve travel mm 120
Main motor kw 7.5
Net weight/Gross weight
1000mm kg 1800/2500

1500mm

2000mm

 kg

2010/2760

2250/3070


Packing size(L×W×H)
1000mm mm 2460×1150×1800

1500mm

2000mm

 mm

2950×1150×1800

3460 × 1150 × 1800



Standard Accessories:

3 jaw chuck, dead center, reduction sleeve, oil gun, coolant system, working light.



Optional Accessories:

4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator, liver center.



Optional Equipments:

Digital readout system(DRO), quick change tool post & holders, taper turning attachment.
