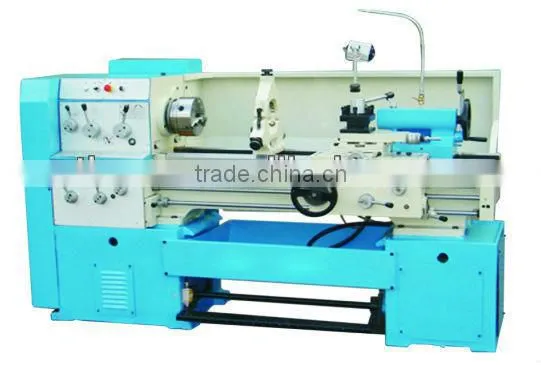

"400mm"Precision Gap-bed Lathe FL-400A

Specifications

1. Swing dia. 410mm
2. Spindle bore: 52mm
3. Center distance: 1M/1.5M

Model	Unit	FL-400A
Max.swing over bed	mm	400
Max.swing over cross slide	mm	230
Max.swing in gap	mm	560
Center diatance	mm	1000 1500
Bed width	mm	360
Spindle hole	mm	52
Spindle nose		C6
Spindle taper		Morse No.6
Spindle speeds	rpm	40-1400(9 steps)
Metric threads range	mm	0.25-14(19 steps)
Inch threads range	TPI	2-40
Module threads range	MP	0.5-3.5(11kinds)
Diametral threads range	D.P	-
Longitudinal feed range	mm/rev	-
Cross feed range	mm/rev	-
Longitudinal rapid travel	m/min	-
Max.travel of top slide	mm	95
Max.travel of cross slide	mm	180
Max.size of tool(W×H)	mm	20×20
Tailstock sleeve diameter	mm	65
Tailstock sleeve taper		Morse No.4
Tailstock sleeve travel	mm	140
Main motor	kw	4
Net weight/Gross weight
1000mm	kg	1500/2150
1500mm	kg	1650/2300
Packing size(L×W×H)
1000mm	mm	2470×1150×1590
1500mm	mm	2970×1150×1590



Standard Accessories:

3 jaw chuck, dead center, reduction sleeve, oil gun, coolant system, working light.



Optional Accessories:

4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator, liver center.



Optional Equipments:

Digital readout system(DRO), quick change tool post & holders, taper turning attachment.
