DL-800C Torno Mecanico de Bancada with Center distance 1000mm, 1500mm
- 50 Set / Sets per Month
- China Port
- T/T
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Max. Swing Diameter: | 400mm | Brand Name: | TIMAC | Model Number: | DL-800C |
Voltage: | As required | Power(W): | 7.5kw | Certification: | CE norms |
Product Description
Specifications
Universal Horizontal Gap Bed Lathe1. Swing dia. 800mm
2. Spindle bore:105mm
3. Center distance: 750-3000mm
Horizontal Gap-bed Lathe DL-800C
Features:
Universal Horizontal Gap Bed Lathe
These lathes are mainly suitable for turning internal and external cylindrical,conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways
1.Hardened by means of moddle-frequency induction method , the guideway surfaces of the beds are durable.
2.The construction rigidity and driving rigidity are higher.
3.With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4.There are three kinds of spindle bore (A:52mm; B:82mm; C:105mm) available for choice.
Parameter:
Specification | Unit | DL-400A | DL-500A | ||||
DL-400B | DL-500B | DL-610B | DL-660B | DL-800B | |||
DL-500C | DL-610C | DL-660C | DL-800C | ||||
Capacity | Center height | mm | 200 | 250 | 305 | 330 | 400 |
Max.swing over bed | mm | 400 | 500 | 610 | 660 | 800 | |
Max.swing over carriage | mm | 210 | 300 | 370 | 400 | 540 | |
Max.swing over gap* | mm | 630 | 720 | 830 | 880 | 1020 | |
Effective width of gap* | mm | 210 | |||||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | |||||
Width of bed | mm | 400 | |||||
Section of tool shank | mm | 25 x 25 | |||||
Spindle | Spindle bore | mm | A:52; B82; C:105 | ||||
Spindle taper | Morse No.6 | ||||||
Spindle speed | r.p.m | 11~1600(24steps) | |||||
Feed | Longitudinal feed range | mm/r | 0.028~6.33(64 kinds) | ||||
Cross feed range | mm/r | 0.014~3.16(64 kinds) | |||||
Threads | Range of metric threads(kinds) | mm | 1~192(44 kinds) | ||||
Range of inch threads(kinds) | T.P.I | 1~24(21 kinds) | |||||
Range of module threads(kinds) | mm | 0.25~48(39 kinds) | |||||
Range of diametric pitch threads(kinds) | D.P | 1~96(37 kinds) | |||||
Tailstock | Max.tailstock sleeve travel | mm | 150 | ||||
Tailstock sleeve diameter | mm | 75 | |||||
Tailstock sleeve taper | Morse No.5 | ||||||
Other | Main motor power | kw | 7.5 (10HP) |
***Standard items:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, dead center, oil gun, coolant system, working light,
general tools, foundation bolts, driving plate, chasing dial indicator, operation manual(English edition).
***Optional items:
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment

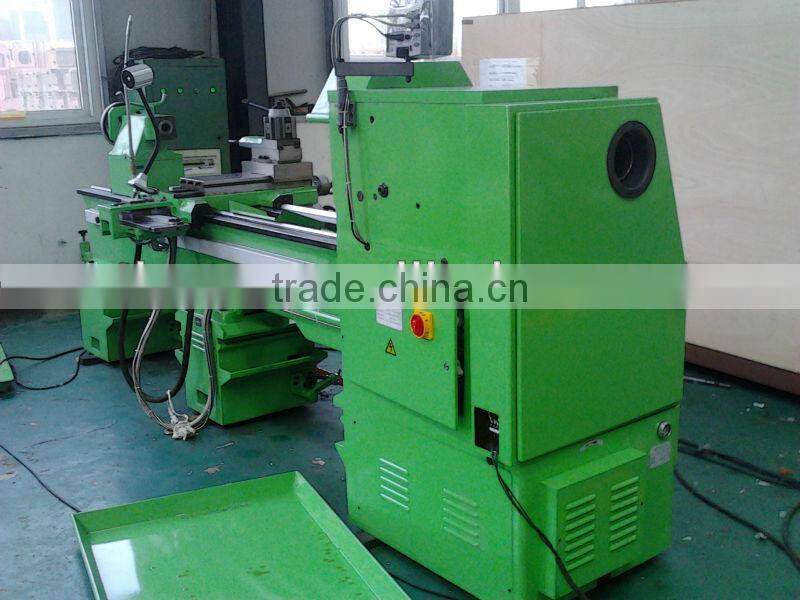

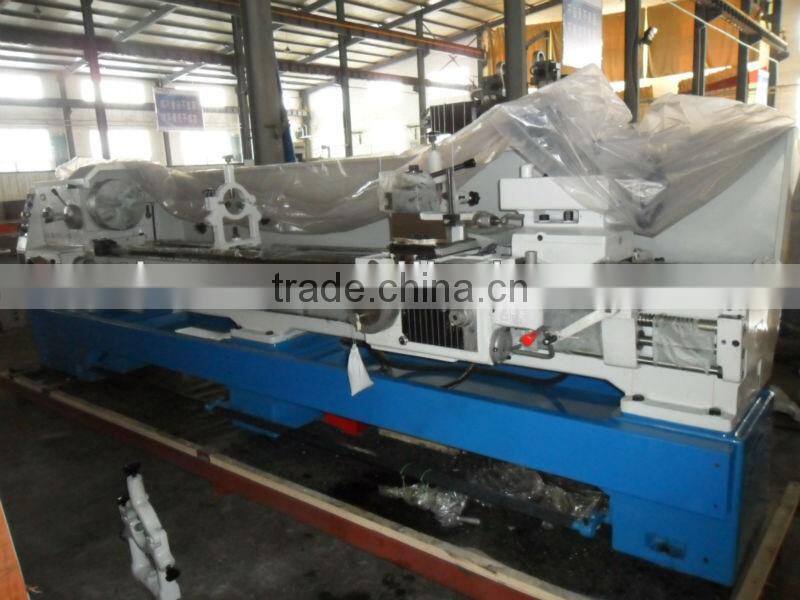

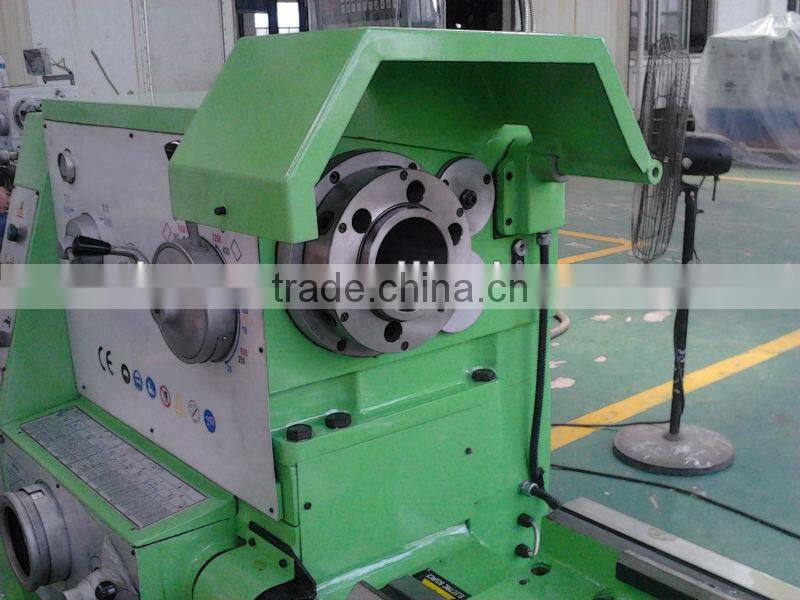

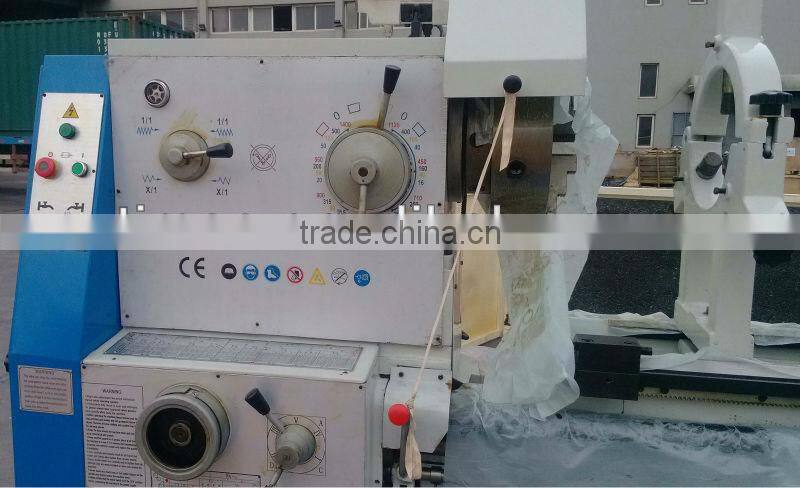

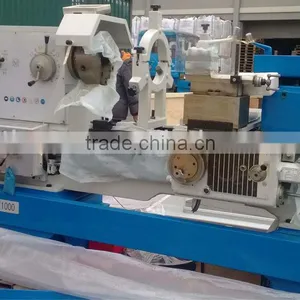

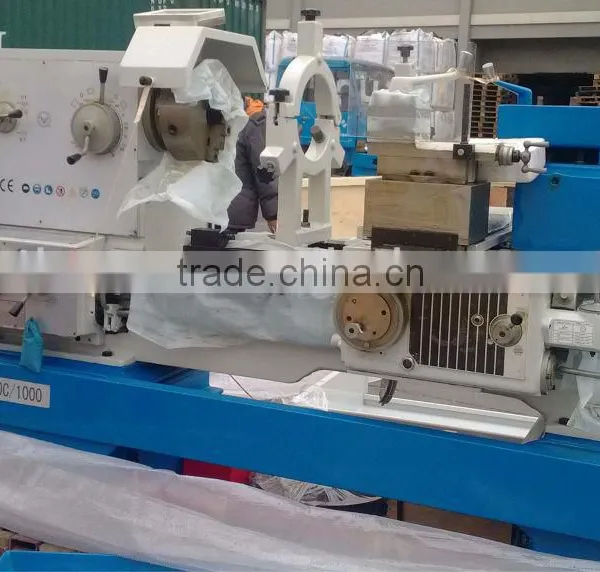

Real Machine View

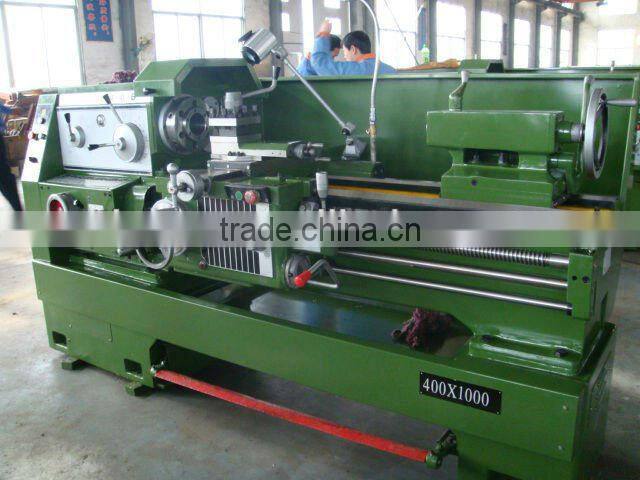

DL-400A & DL-400B
DL-500A/B/C

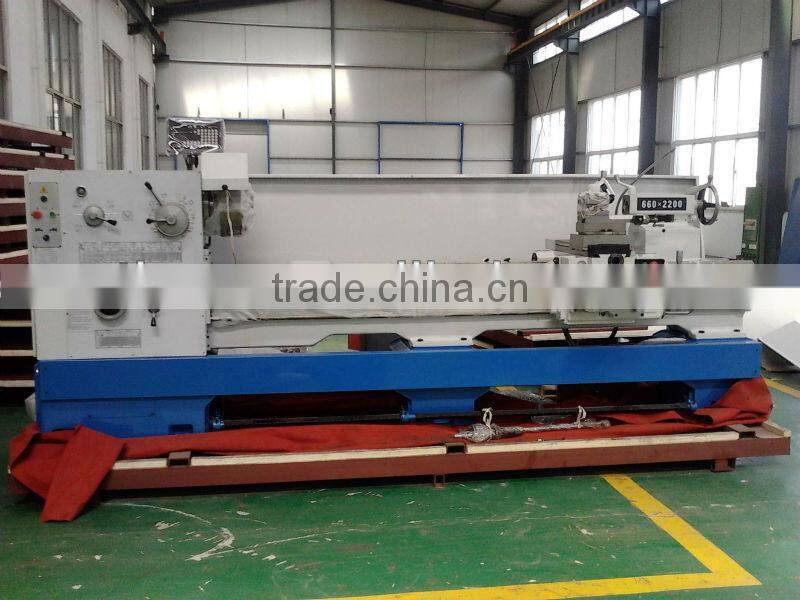

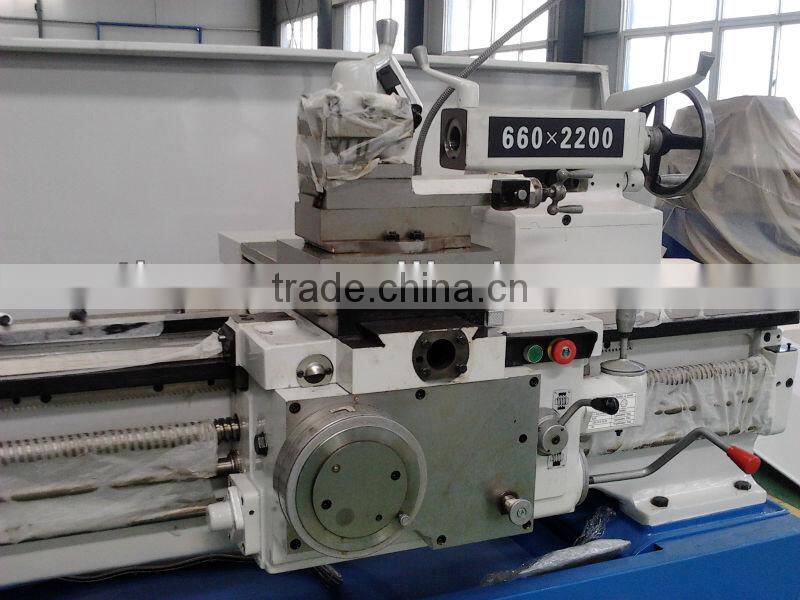

DL-610B/C; DL-660B/C
DL-800B/C
Package: Wood case(fumigated) + Steel pallet
In addtion, for this series machines, there is another headstock type designed for your choice according to your needs, but the price still same.
