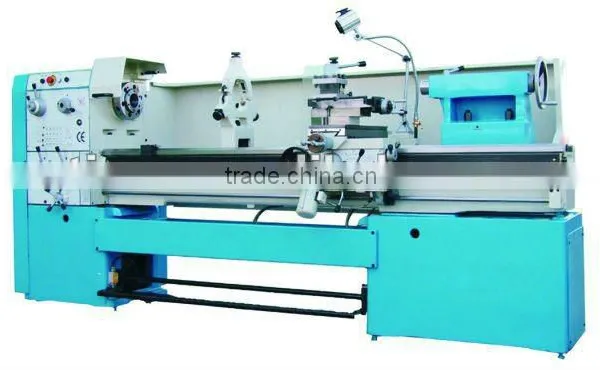

"500mm"Precision Gap-bed Lathe/Universal Gap Bed Lathe FL-500B

Zhengzhou Timeway Machine Tool Co., Ltd.
"500mm"Precision Gap-bed Lathe/Universal Gap Bed Lathe FL-500B thumbnail-1
"500mm"Precision Gap-bed Lathe/Universal Gap Bed Lathe FL-500B photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 500mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number FL-500B
Power(W) 7.5kw
Certification ISO, CE Standard
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Swing dia. over bed 400-600mm;
2. Center distance 1m, 1.5m, 2m;
3. Spindle bore 65/80mm.

ModelUnitFL-500B
Max.swing over bedmm500
Max.swing over cross slidemm325
Max.swing in gapmm630
Center diatancemm1000,1500,2000
Bed widthmm330
Spindle holemm65
Spindle nose ISO-C6 OR ISO-D6
Spindle taper Metric 70
Spindle speedsrpm22-1800
Metric threads rangemm0.5-28(66kinds)
Inch threads rangeTPI1-56(66kinds)
Module threads rangeMP0.5-3.5(33kinds)
Diametral threads rangeD.P8-56(33kinds)
Longitudinal feed range mm/rev0.072-4.038
Cross feed range mm/rev0.036-2.019
Longitudinal rapid travel m/min5
Max.travel of top slidemm130
Max.travel of cross slidemm30
Max.size of tool(W×H)mm25×20
Tailstock sleeve diametermm75
Tailstock sleeve taper Morse No.5
Tailstock sleeve travelmm120
Main motorkw7.5
Net weight/Gross weight
1000mmkg1700/2350

1500mm

2000mm

kg

1910/2610

2150/2920



Packing size(L×W×H)
1000mmmm2460×1150×1800

1500mm

2000mm

mm

2950×1150×1800

3460 × 1150 × 1800



Standard Accessories:

3 jaw chuck, dead center, reduction sleeve, oil gun, coolant system, working light.



Optional Accessories:

4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator, liver center.



Optional Equipments:

Digital readout system(DRO), quick change tool post & holders, taper turning attachment.
