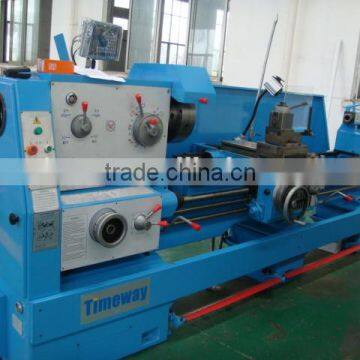

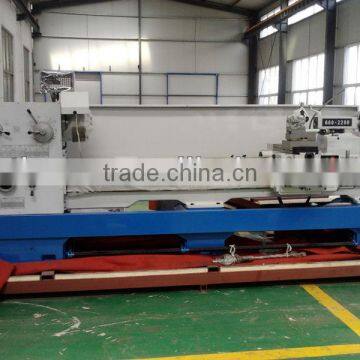

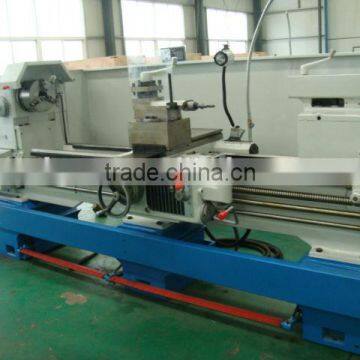

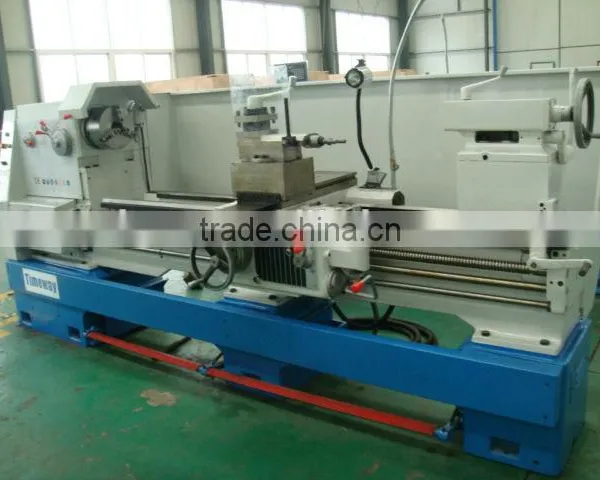

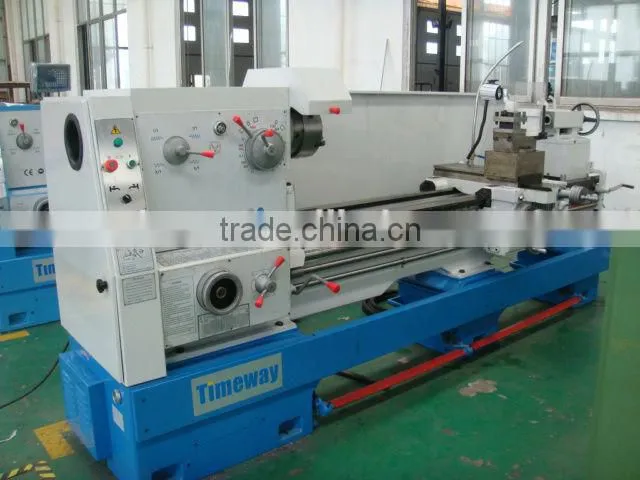

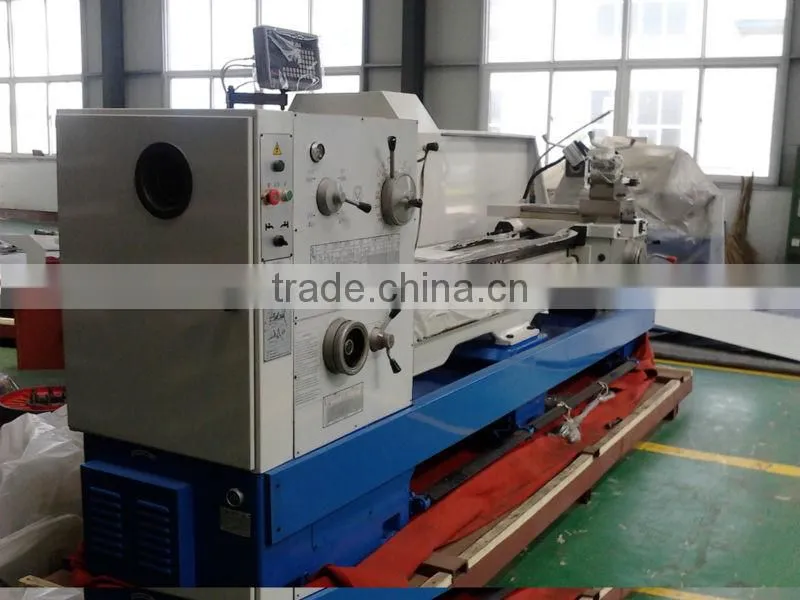

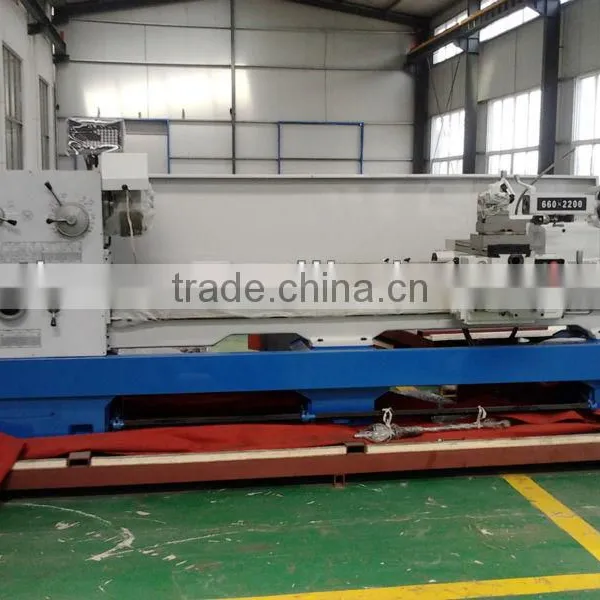

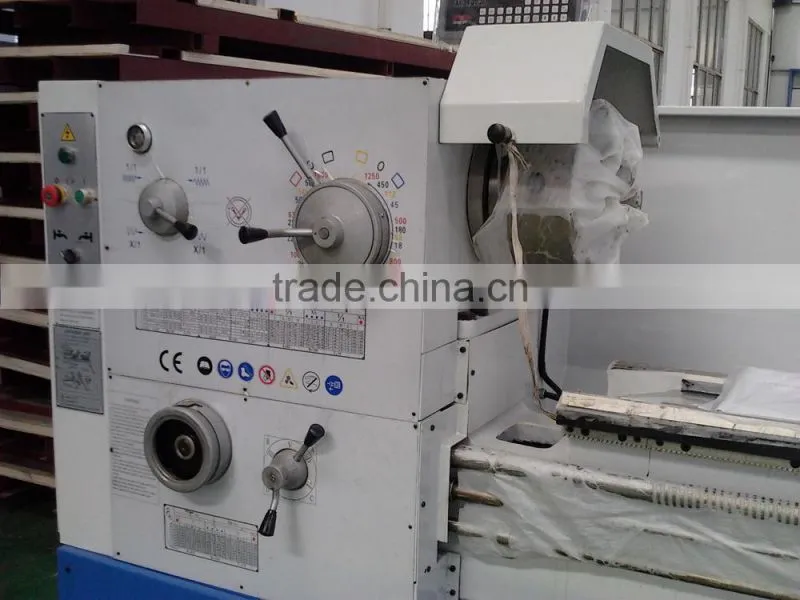

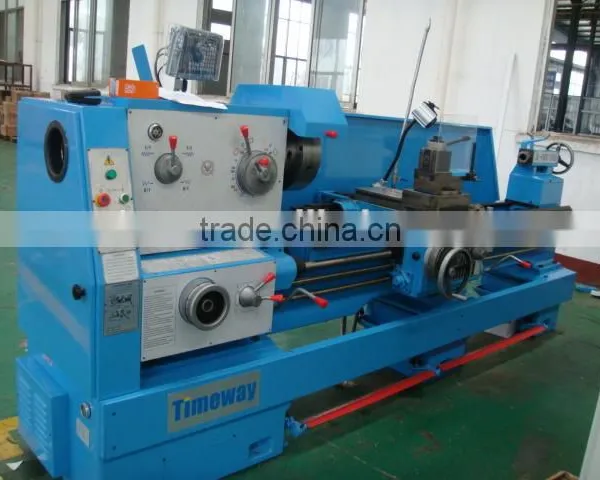

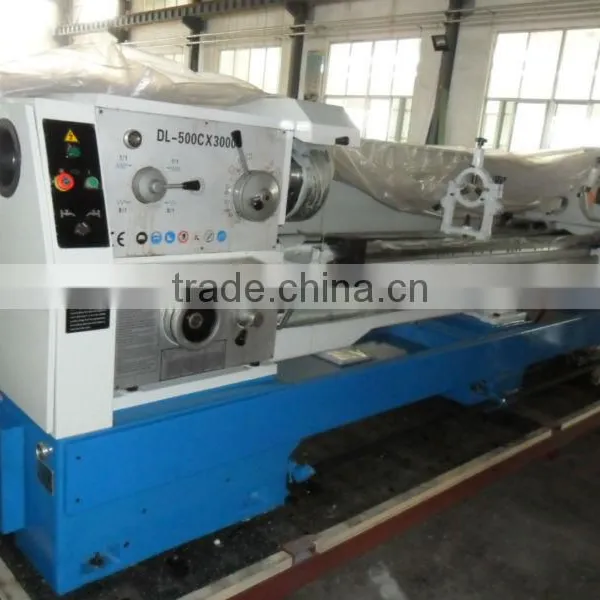

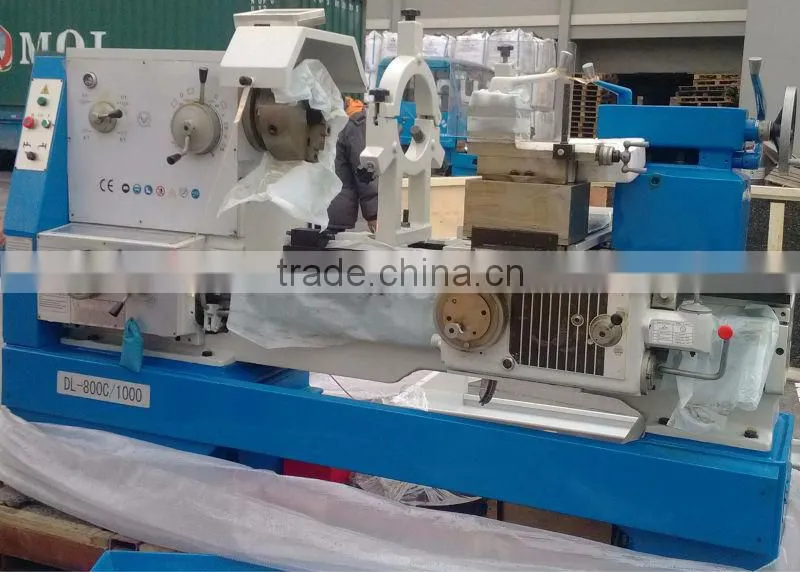

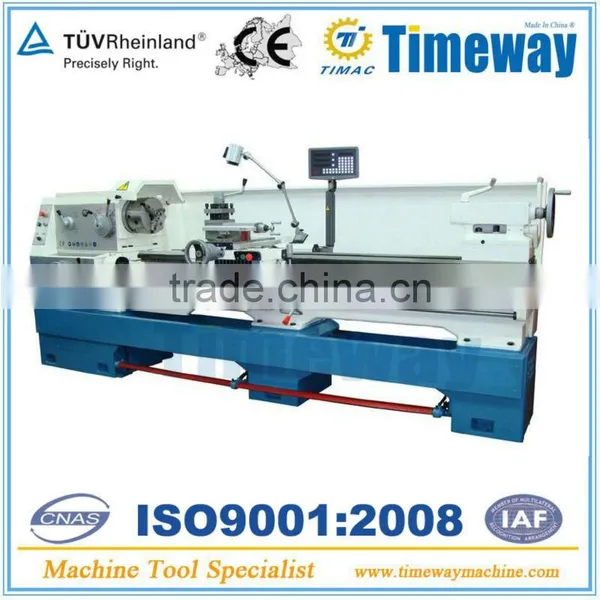

Horizontal Gap Bed Turning Lathe Machine
Features:
These lathes are mainly suitable for turning internal and external cylindrical, conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads. They also can be used for broaching oil grooves and keyways.
1. Hardened by means of middle -frequency induction method, the guideway surfaces of the beds are durable.
2. The construction rigidity and driving rigidity are higher.
3. With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4. There are thres kinds of spindle bore available for choice.
DL-...A means 52mm spindle bore;
DL-...B means 82mm spindle bore;
DL-...C means 105mm spindle bore;
| Specification | DL-400A | DL-500A | |||
| DL-400B | DL-500B | DL-610B | DL-660B | DL-800B | |
| DL-500C | DL-610C | DL-660C | DL-800C | ||
| Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. Swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
| Effective gap length | 210mm | 210mm | 210mm | 210mm | 210mm |
| Max. Length of work piece | 1000 /1500/2000/3000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25X25mm | ||||
| Spindle speeds | 11—1600r/min (24 steps) | ||||
| Hole though spindle | A:52mm, B:80mm, C:105mm | ||||
| Spindle taper | Morse No.6 | ||||
| Longitudinal feed range | 0.028--6.33mm/rev (64kinds) | ||||
| Cross feed range | 0.014--3.16mm/rev (64kinds) | ||||
| Range of metric threads | 1-192mm(44kinds) | ||||
| Range of inch threads | 1-24T.P.I(21kinds) | ||||
| Range of module threads | 0.25-48(Module 39 kinds) | ||||
| Range of diametric threads | 1-96DP(37 kinds) | ||||
| Max tailstock sleeve travel | 150mm | ||||
| Tailstock sleeve diameter | 75mm | ||||
| Tailstock sleeve taper | Morse No.5 | ||||
| Main motor power | 7.5kw(10HP) | ||||
| Packing size (LxWxH) mm |
2650/3150/ 3610/4610 x1150x1700 |
2650/3150/ 3610/4610 x1190x1800 |
2650/3150/ 3650/4650 x1190x1900 |
2650/3150/ 3650/4650 x1190x1950 |
|

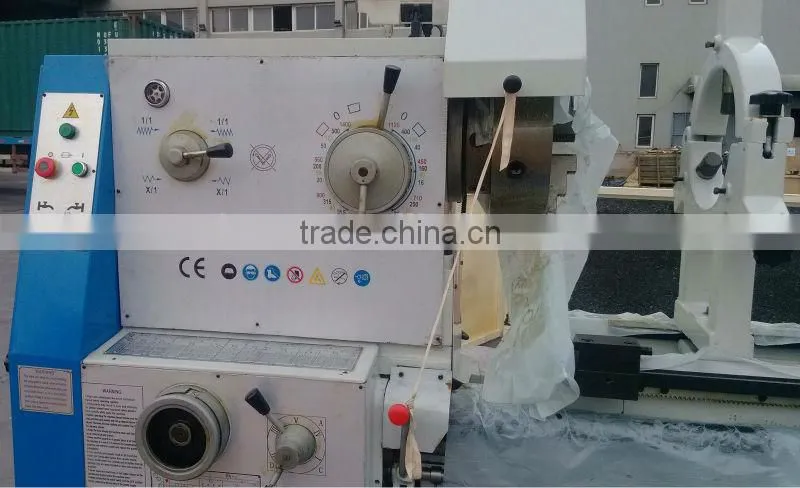

Two design of Headstock for your choice:
