Precision Gear Head Engine Lathe
US$ 500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Gear Head Engine Lathe T-1440BUS$ 1,500 - 5,000MOQ: 1 Set -
Torno - 12" Mini Manual Lathe Machine For SaleUS$ 2,000 - 5,000MOQ: 1 Set
-
Torno , 14"-24" Swing High Speed Precision Gap Lathe With Low PriceNegotiableMOQ: 1 Set
-
Torno / 8''-11'' Variable Speed Bench Lathe For Sale At Low PriceNegotiableMOQ: 10 Sets
-
Torno / Mini Horizontal Lathe For Sale (T-1340A)US$ 3,000 - 5,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
330mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
T-1340A
Voltage
380V/50HZ
Power(W)
1.5kw(main motor)
Dimension(L*W*H)
1940x760x1520mm
Weight
560kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas

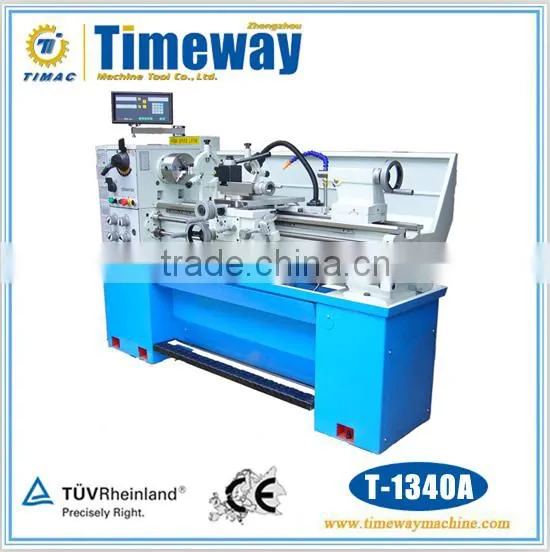

Precision Gear Head Engine Lathe
T-1340A

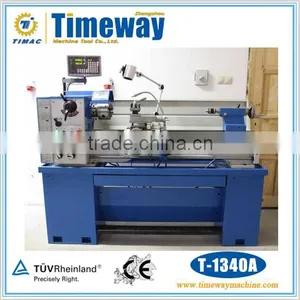

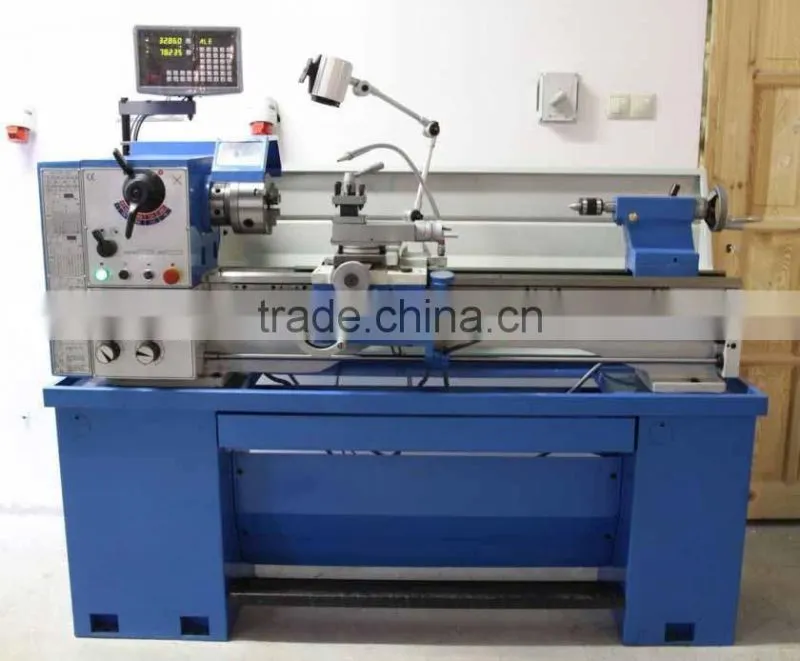

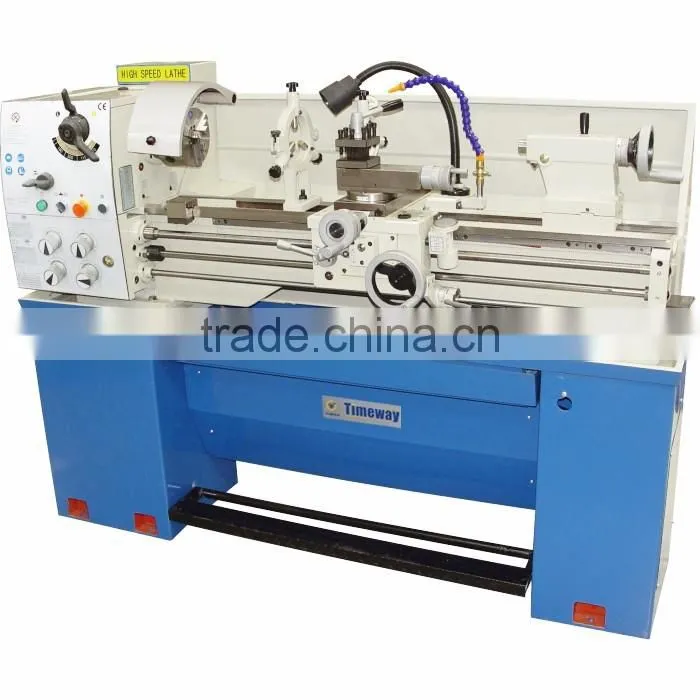

Main Outlook
Product Description
Standard accessories:
- 3 jaw chuck, 4 jaw chuck
- Face plate, steady rest
- Follow rest, oil gun
- Dead center
- Changing gears
- Reduction sleeve
- Chasing dial indicator
- Working light
- Coolant system
- Tools and tool box
- Operator manual
Optional accessories:
- Foot brake system
- Digital readout system (DRO)
- Quick change tool post & holders
- Taper turning attachment
Technical Parameter:
Specification |
Unit |
T-1340A |
Max.swing over bed |
mm |
330 |
Max.swing over cross slide |
mm |
198 |
Max.swing in gap |
mm |
450 |
Distance between centers |
mm |
1000 |
Spindle nose |
|
D4 |
Spindle bore |
mm |
38 |
Spindle bore taper |
|
M.T.#5 |
Spindle speed |
rpm |
70-2000(8steps) |
Longitudinal feed range |
mm/rev |
0.078-1.044 |
Cross feed range |
mm/rev |
0.22-0.298 |
Metric threads |
mm |
0.45-10 |
Inch threads |
TPI |
21/4-40 |
Tailstock bore taper |
|
M.T.#3 |
Main motor |
kw |
1.5 |
Net weight/Gross weight |
kg |
560/600 |
Packing dimension |
mm |
1940×760×1520 |

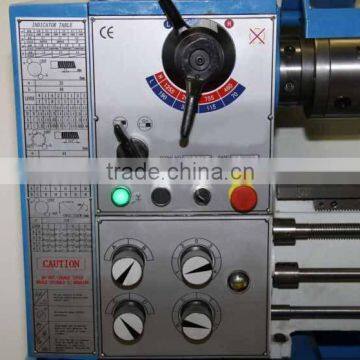

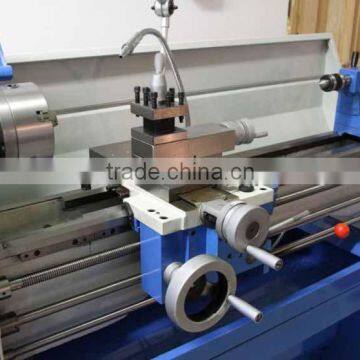

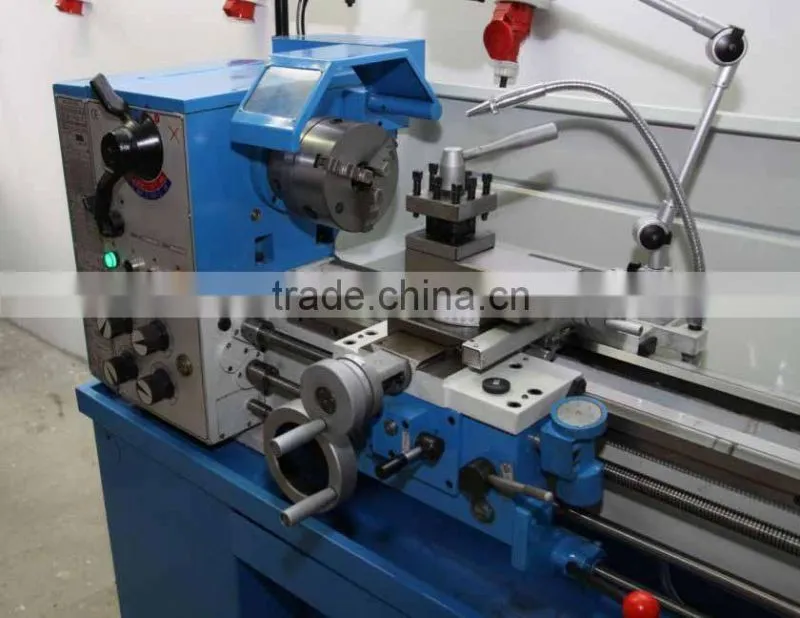

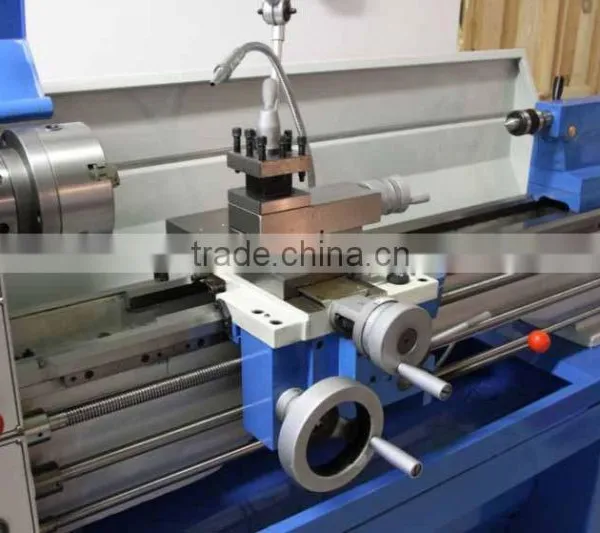

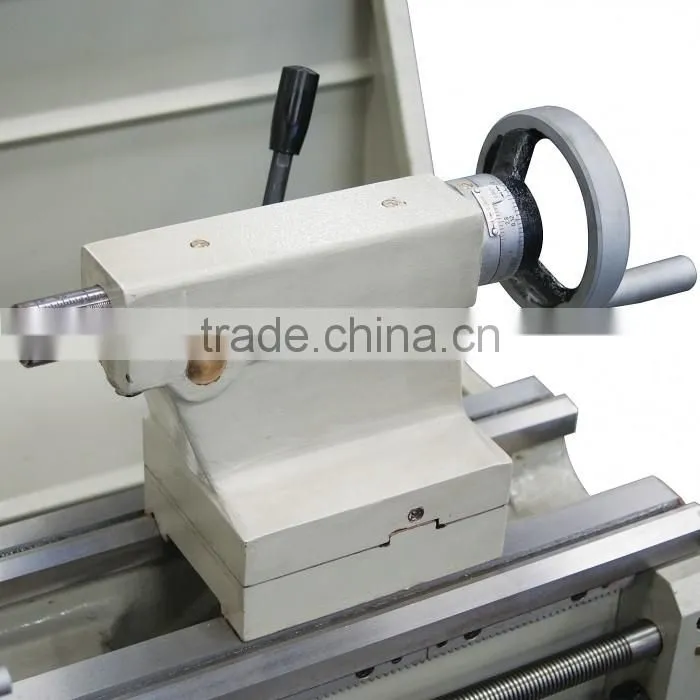

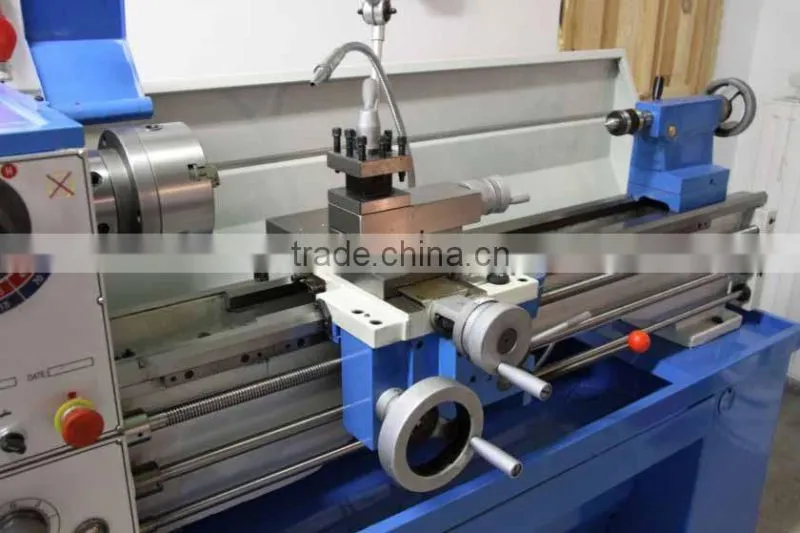

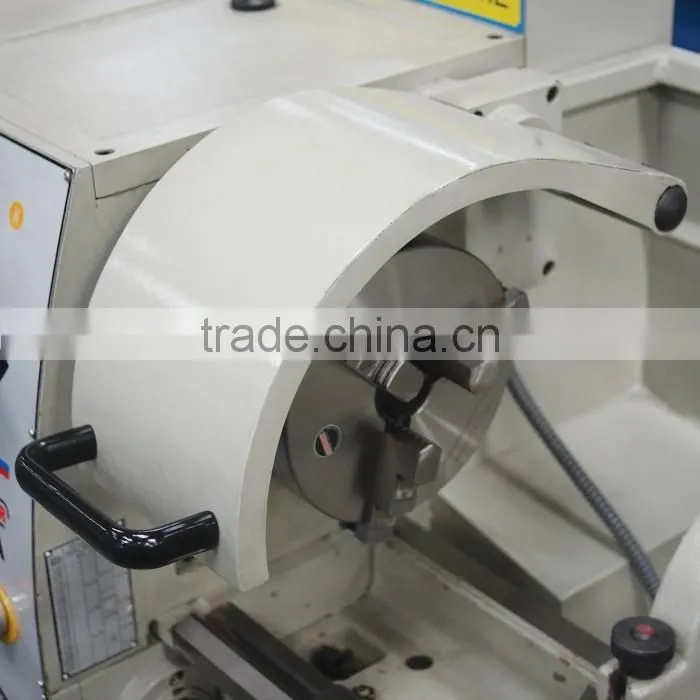

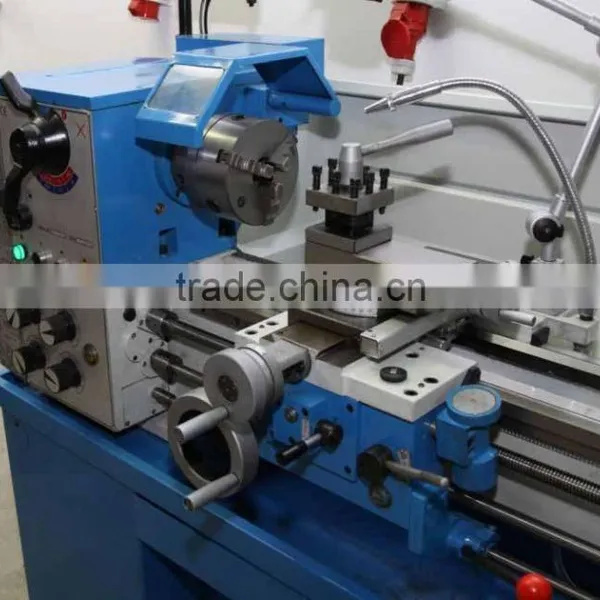

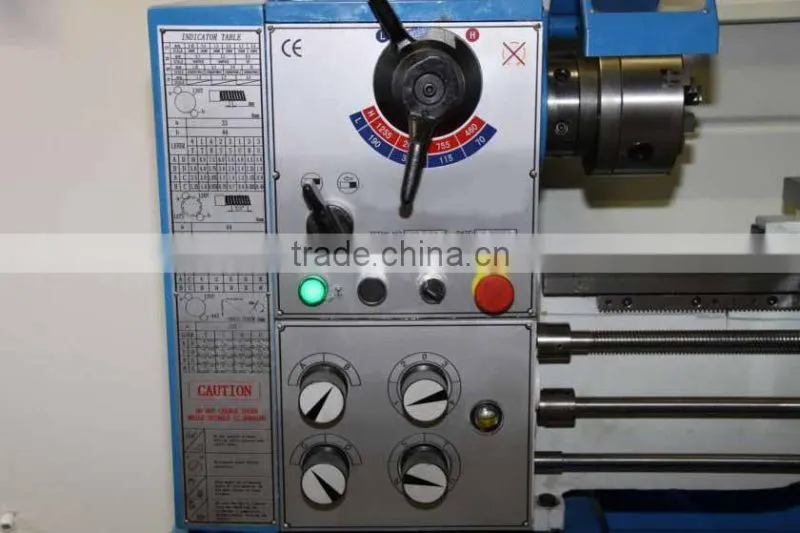

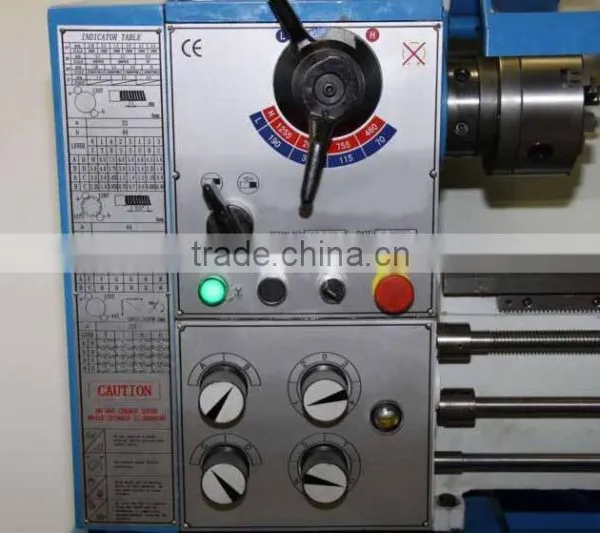

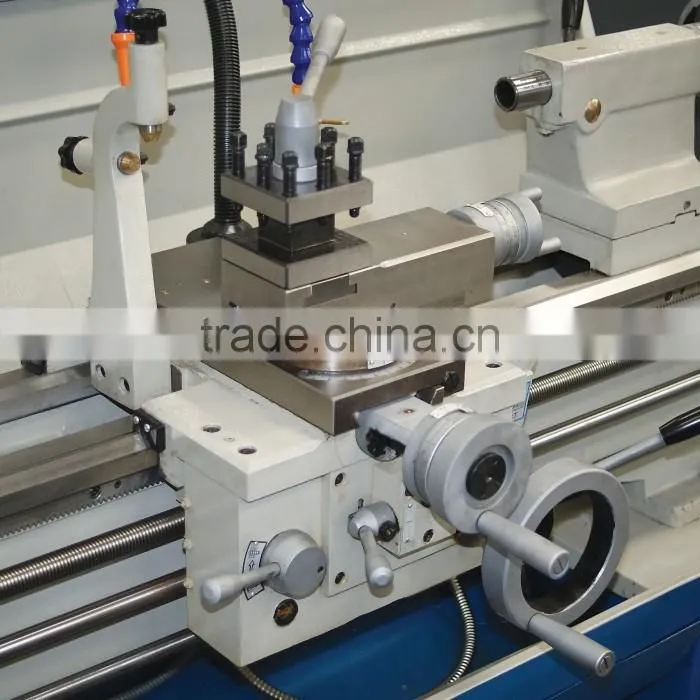

Detail Images
