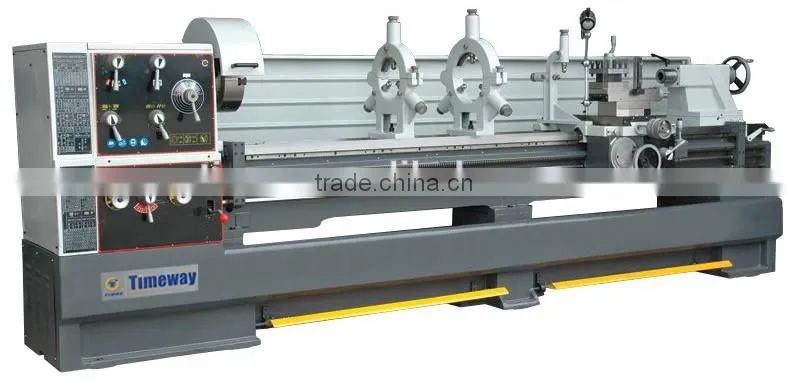

Precision Gap-bed Lathe/Tornos
CL-660 CL-800
Standard accessories:
3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, 4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator.
Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment.
Technical Parameter:
Specification |
CL-660 |
CL-800 |
Swing over bed |
Φ660mm |
Φ800mm |
Swing over cross slide |
Φ440mm |
Φ560mm |
Swing in gap |
Φ900mm |
Φ1040mm |
Distance between centers |
1500mm/2000mm/3000mm |
|
Valid length of gap |
250mm |
|
Width of bed |
400mm |
510mm |
Spindle nose |
D1-8 |
|
Spindle bore |
Φ105mm |
|
Taper of spindle bore |
Φ 113mm(1:20)/MT5 |
|
Range of spindle speed |
16changes25-1600rpm |
16changes17-1100rpm |
Max. travel of top slide |
230mm |
|
Max. travel of cross slide |
368mm |
420mm |
Max. section of tool |
25×25mm(1"×1") |
|
Pitch thread of leadscrew |
Φ40mm×2T.P.I. or Φ40mm×12mm |
|
Longitudinal feeds range |
25 kinds, 0.044-1.48mm/rev (0.00165"-0.05497"/rev) |
|
Cross feeds range |
25 kinds, 0.022-0.74mm/rev (0.00083"-0.02774"/rev ) |
|
Metric threads range |
0.45-120mm (54 kinds) |
|
Inch threads range |
7/16-80T.P.I. (60 kinds) |
|
Diametrical pitches range |
7/8-160DP (42 kinds) |
|
Module pitches range |
0.25-60MP (46 kinds) |
|
Dia. of tailstock sleeve |
90mm |
|
Travel of tailstock sleeve |
235mm |
|
Taper of tailstock sleeve |
No.5Morse |
|
Power of main motor |
7.5kw(10HP)3PH |
11kW (15HP) |
Power of coolant pump |
0.1kW(1/8HP) 3PH |
|
Overall dimension(L×W×H) cm |
321/371/471×123×167cm |
321/371/471×136×167cm |
Packing size(L×W×H) cm |
324/374/474×114×191cm |
324/374/474×127×191cm |
Net weight |
2800/2900/3300kg |
3100/3300/3900kg |
Gross weight |
3100/3200/3700kg |
3450/3750/4450kg |

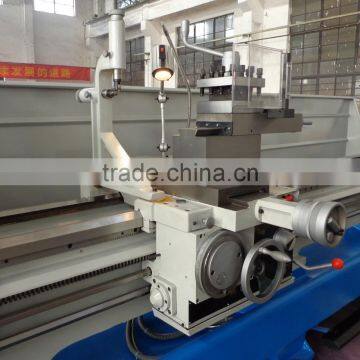

• Spindle(manual 3-jaw chuck) • Carriage

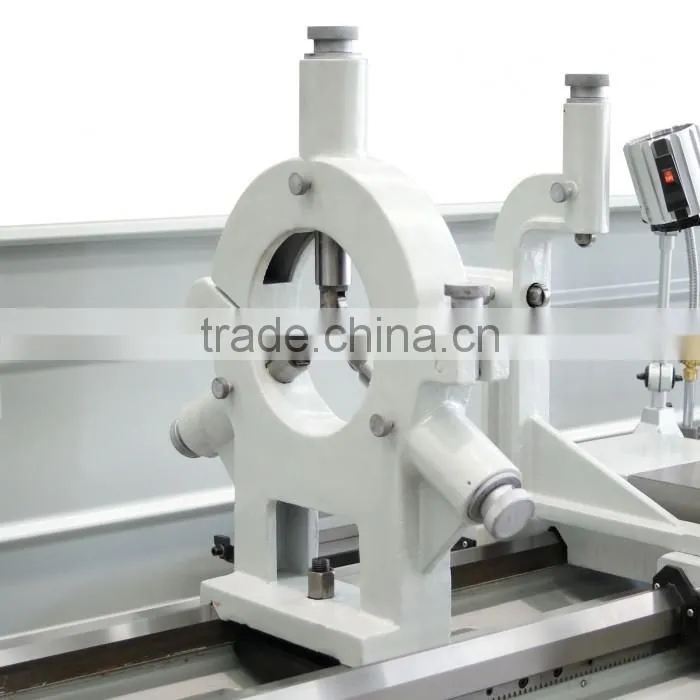

• Steady/Follow Rest • Manual Tailstock
As Cutomer's Need
• Taper Turning Attachment • Digital Readout System(DRO) • Quick Change Tool-post
