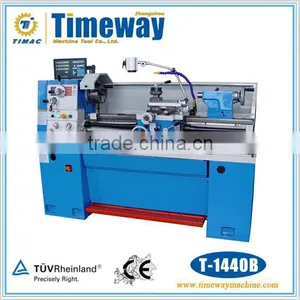

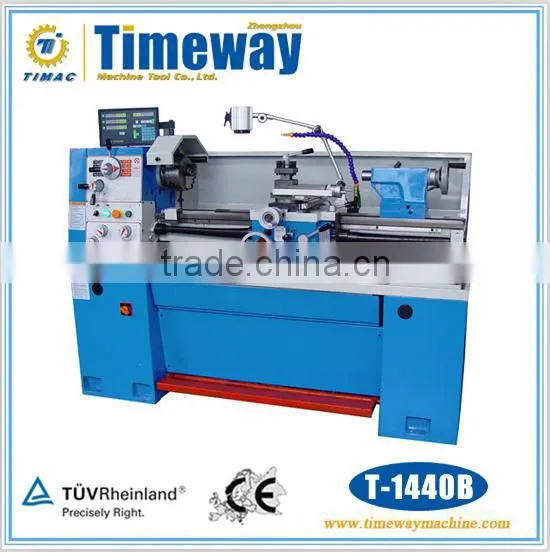

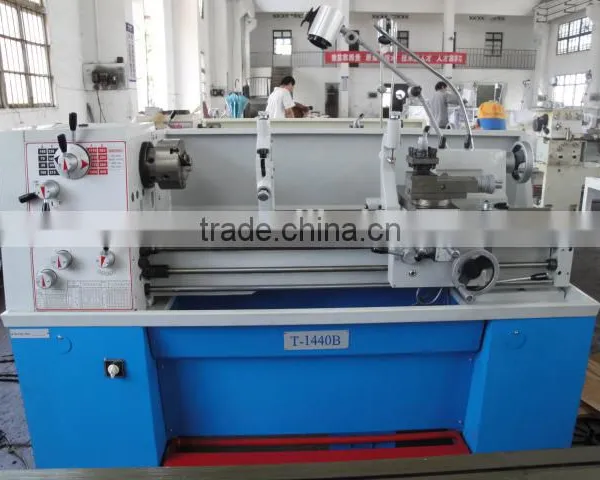

Precision Gear Head Engine Lathe T-1440B
US$ 1,500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Torno - 12" Mini Manual Lathe Machine For SaleUS$ 2,000 - 5,000MOQ: 1 Set -
Torno , 14"-24" Swing High Speed Precision Gap Lathe With Low PriceNegotiableMOQ: 1 Set
-
Torno / 8''-11'' Variable Speed Bench Lathe For Sale At Low PriceNegotiableMOQ: 10 Sets
-
Torno / Mini Horizontal Lathe For Sale (T-1340A)US$ 3,000 - 5,000MOQ: 1 Set
-
Torno Mini Manual Lathe Machine For Sale ( T-1440W )US$ 3,000 - 5,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
360mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
T-1440B
Voltage
380v 50hz
Power(W)
1.5kw(main motor)
Dimension(L*W*H)
1940x760x1520mm
Weight
750kg
Certification
ISO9001 CE
After-sales Service Provided
Engineers available to service machinery overseas
Precision Horizontal Engine Lathe

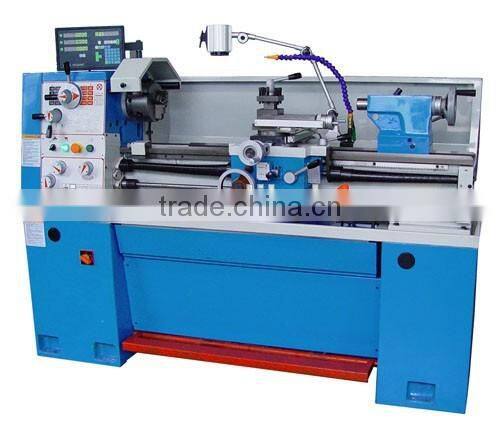

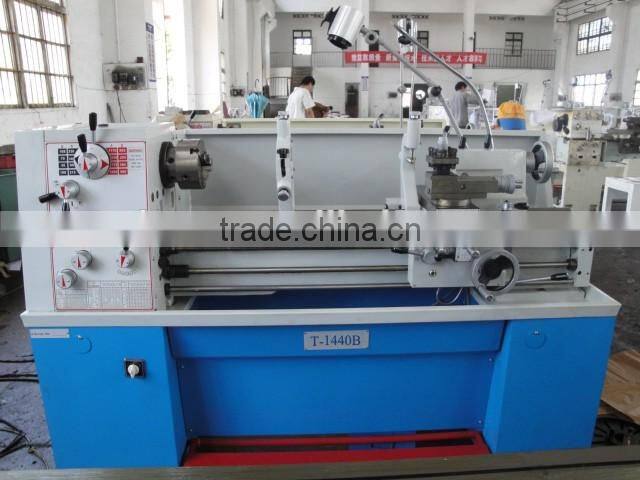

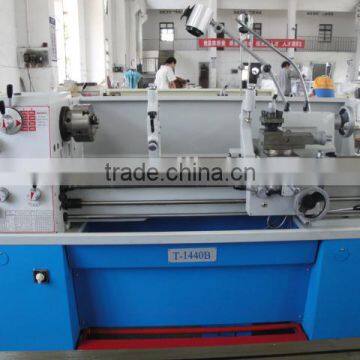

Main Outlook
Product Description
Features:
- Precision ground and supersonic frequency hardened bed ways.
- The spindle is supported with precision roller bearing.
- Headstock gears are made of high quality steel, ground and hardened.
- Removable gap is provided for larger diameter work.
- Easy operating gear box has various feeds and thread cutting function.
Techincal Parameters:
Specification |
Unit |
T-1440B |
Max.swing over bed |
mm |
356 |
Max.swing over cross slide |
mm |
220 |
Max.swing in gap |
mm |
506 |
Distance between centers |
mm |
1000 |
Spindle nose |
|
D4 |
Spindle bore |
mm |
38 |
Spindle bore taper |
|
M.T.#5 |
Spindle speed |
rpm |
45-1800(16steps) |
Longitudinal feed range |
mm/rev |
0.043-0.653 |
Cross feed range |
mm/rev |
0.015-0.220 |
Metric threads |
mm |
0.4-7 |
Inch threads |
TPI |
4-112 |
Tailstock bore taper |
|
M.T.#3 |
Main motor |
kw |
1.5 |
Net weight/Gross weight |
kg |
750/880 |
Packing dimension(LxWxH) |
mm |
1940x760x1520 |
Standard accessories:
- 3 jaw chuck
- Changing gears
- Dead center
- Reduction sleeve
- Oil gun
- Coolant system
- Working light
- 4 jaw chuck
- Face plate
- Steady rest
- Follow rest
- Foot brake system
- Chasing dial indicator
Optional accessories:
- Digital readout system (DRO)
- Quick change tool post & holders
- Taper turning attachment
- Tools and tool box
- Operator manual

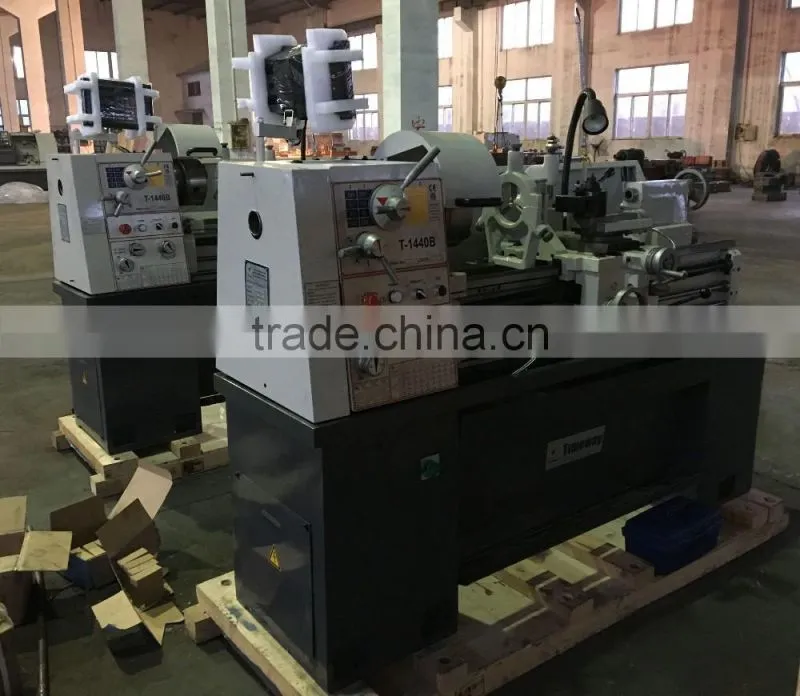

Detail Images

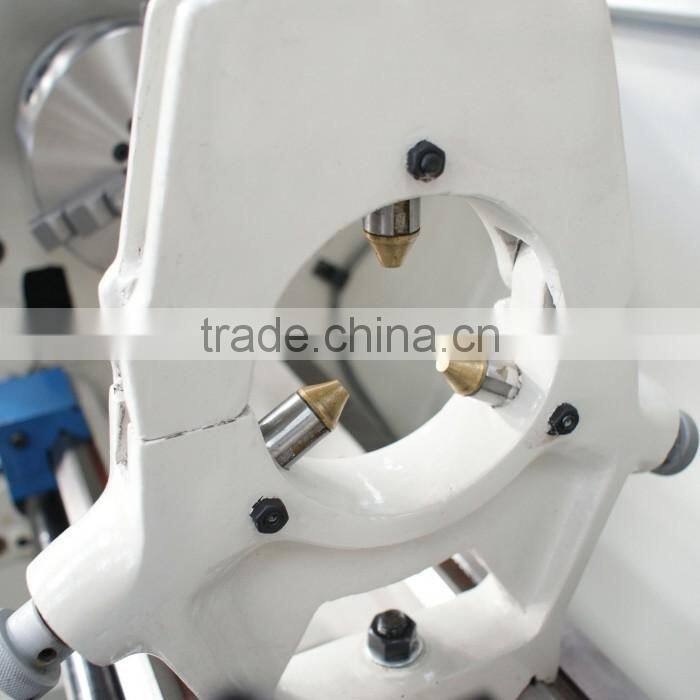

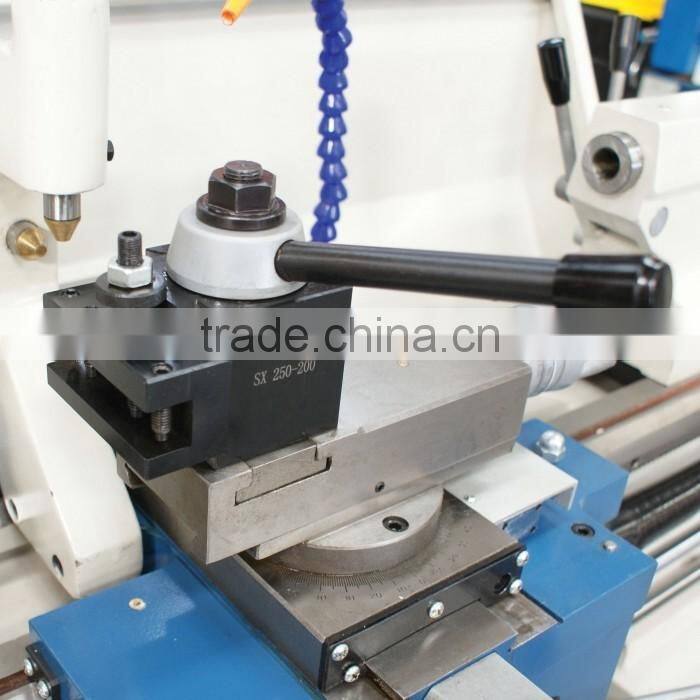

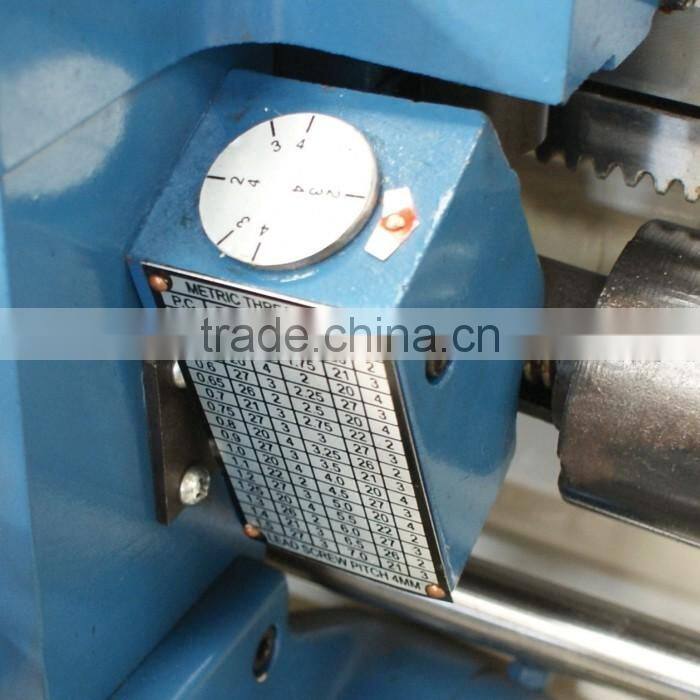

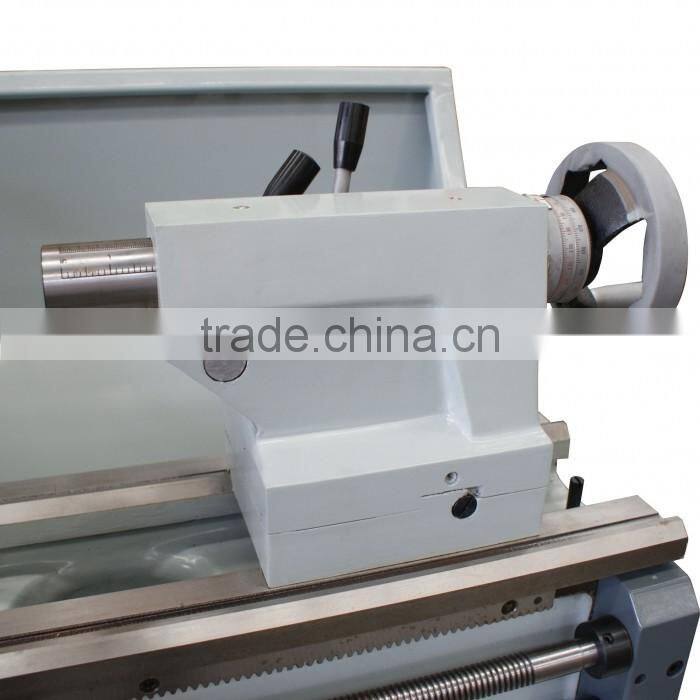

•Thread-Cutting Dial •USA-Type quick change turret •Tailstock •Steady rest
Order Machines(OEM) 220V/60HZ and Inch-type Screw

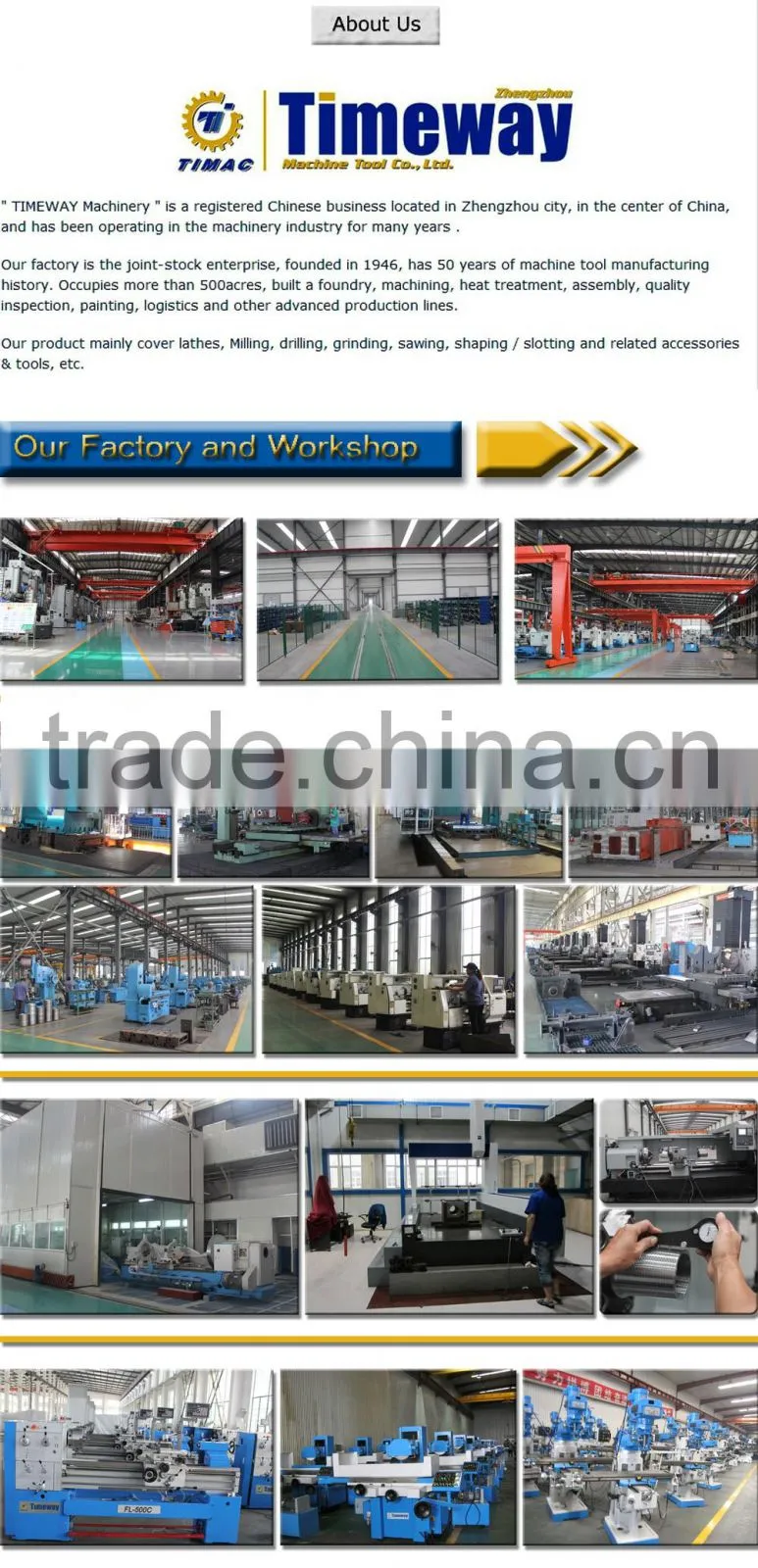

Company Information
Exhibitions
Customer Visited
Certifications

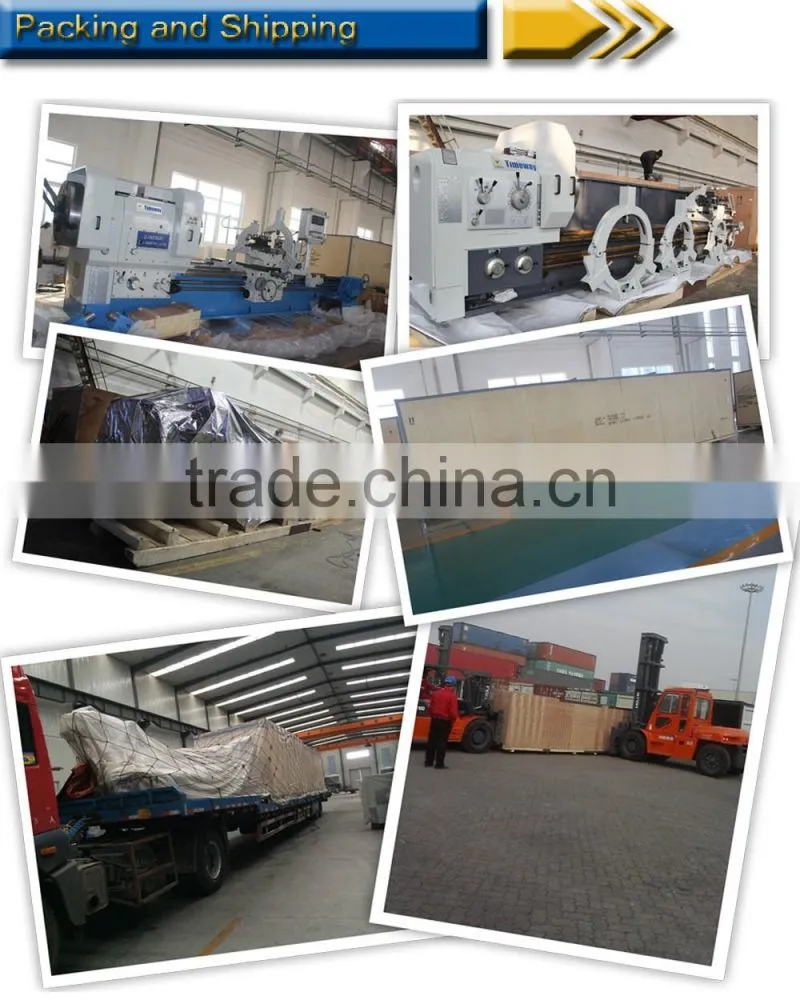

Packaging & Shipping
