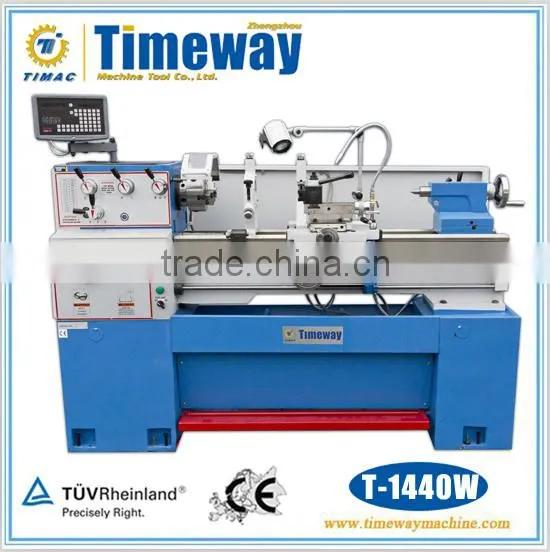

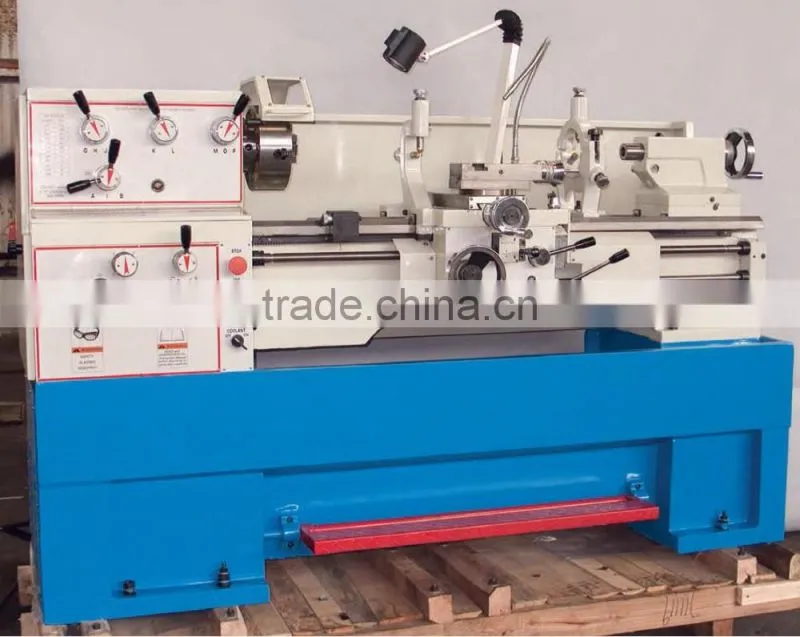

PRECISION METAL LATHE
T-1440W
Features:
1. Built in safety clutch.
2. Cross-ribbed headstock for added strength and stability.
3. Anti-friction mounted shafts and dynamically balanced components.
4. Hardened and ground alloy steel gears, shafts and splines.
5. Precision chrome alloy spindle with a big 40mm (1-1/2″) thru hole.
6. All cast iron construction.
7. Hardened & precision ground bedways.
8. Quick change gearbox will cut American and metric threads.
9. Foot brake.
10. Dual dials–inch/metric.
Technical Parameter:
Specification |
Unit |
T-1440W |
Max.Swing.over bed |
mm |
φ356mm(14inch) |
Max.Swing.over cross slide |
mm |
φ210(8-2/8inch) |
Max.Swing.over gap |
mm |
φ506(20inch) |
Bed width |
mm |
260(10inch) |
Max.Swing.over |
mm |
1000(40inch) |
Taper of spindle bore |
MT#5 |
|
Spindle bore |
mm |
φ40(1-1/2inch) |
Steps of spindle speeds |
12steps |
|
Range of spindle speeds |
r/min |
40-1800rpm |
Spindle nose |
D-4 |
|
Metric thread range |
mm |
0.45~7.5(22kinds) |
Inch screw thread range |
TPI |
4~112(40kinds) |
Range of longitudinal feeds |
mm |
0.03-0.688(0.0011-0.0271 in/rev) |
Range of cross feeds |
mm |
0.015-0.220(0.0003-0.01 in/rev) |
Diameter of leadscrew |
mm |
φ22(7/8inch) |
Pitch thread of leadscrew |
mm |
4(8T.P.I) |
Travel of tailstock quill |
mm |
120(4-3/4inch) |
Diameter of tailstock quill |
mm |
Φ45(1-25/32inch) |
Taper of tailstock quill |
MT#3 |
|
Main motor power |
Kw |
2.4(3HP) |
Coolant pump motor power |
Kw |
0.04(0.055HP) |
Overall dimention (LxWxH) |
mm |
1900x740x1150 |
Packing size (LxWxH) |
mm |
1970x760x1460 |
Net Weight |
Kg |
1050(2310ibs) |
Gross Weight |
Kg |
1150 (2530ibs) |
|
|
|
