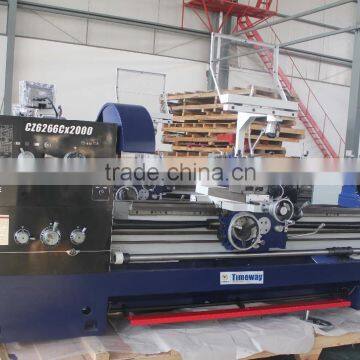

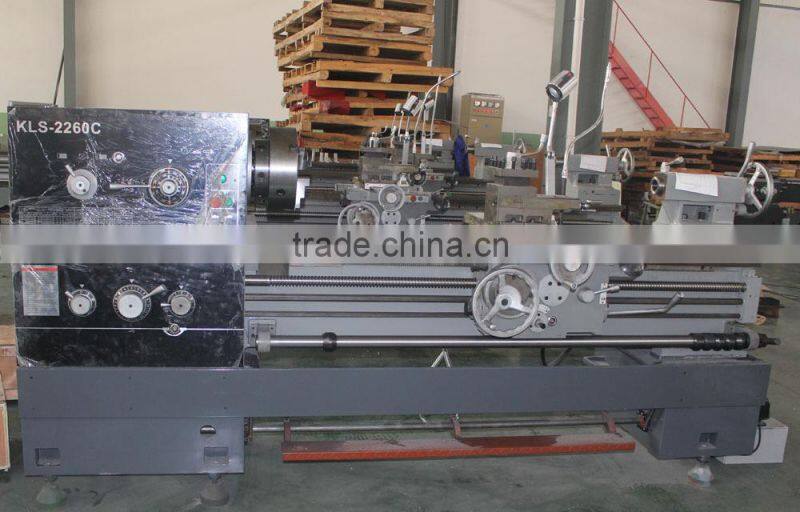

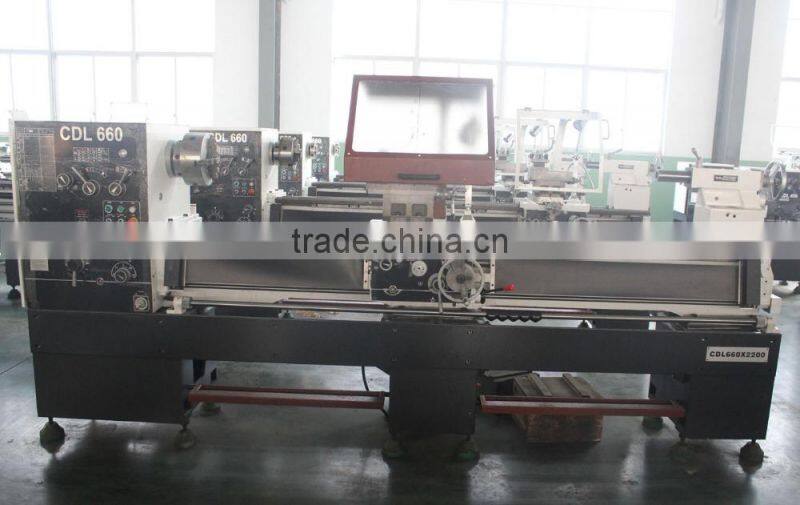

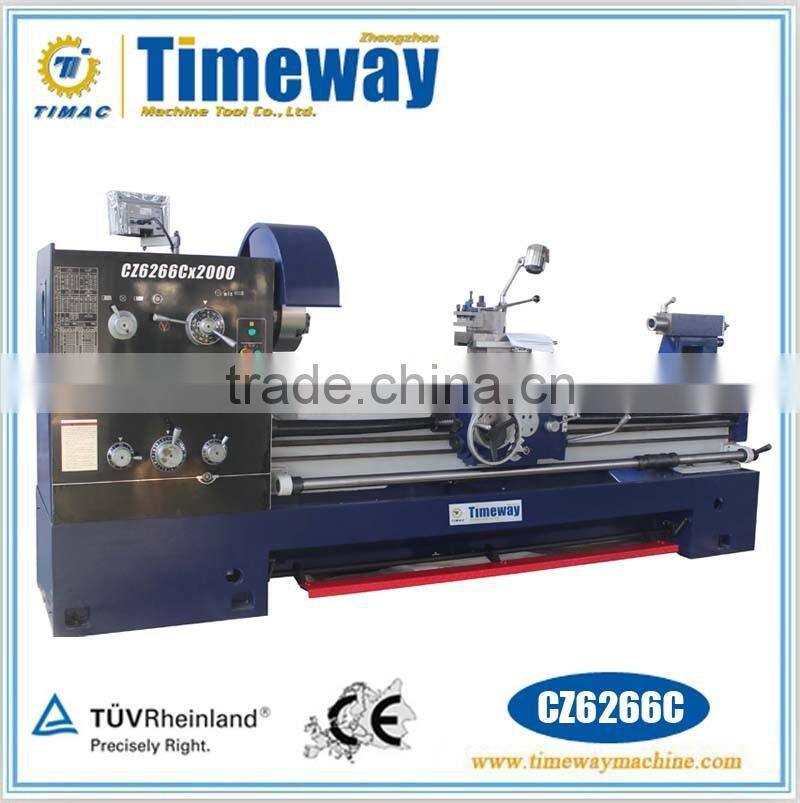

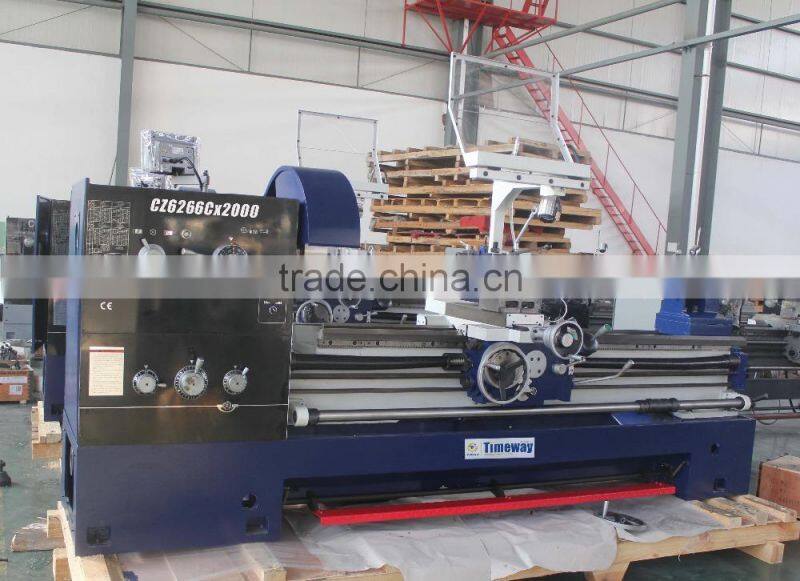

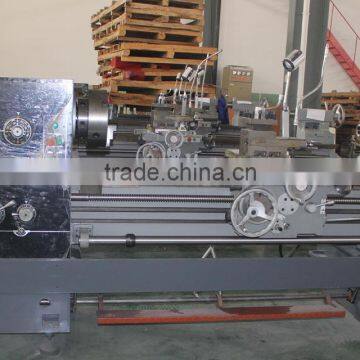

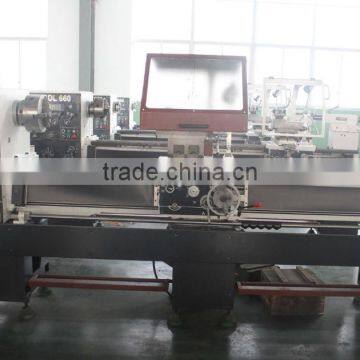

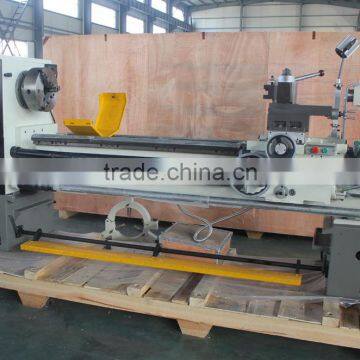

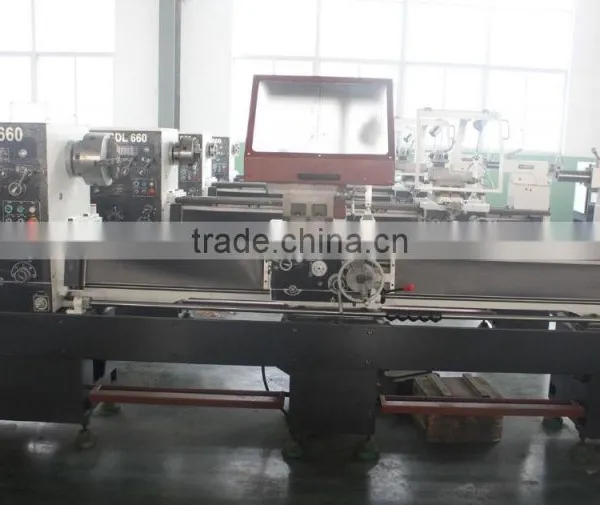

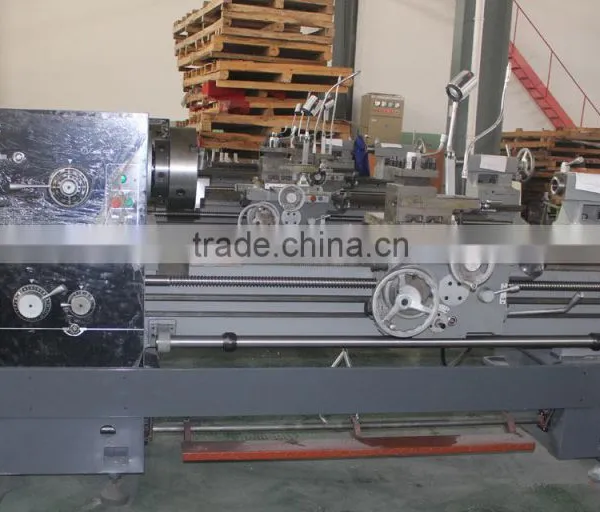

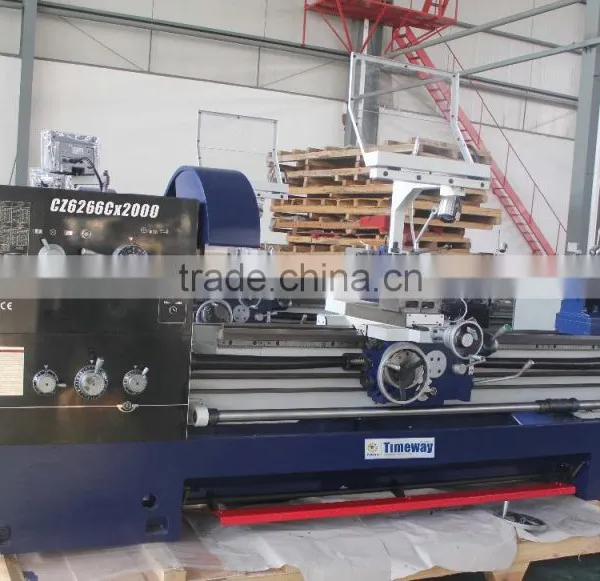

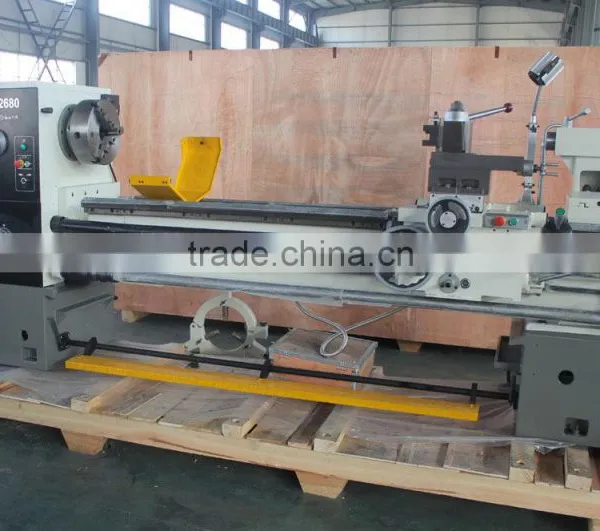

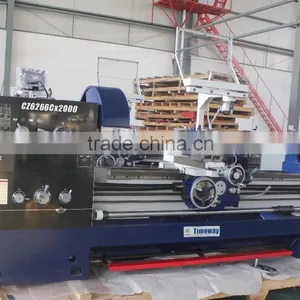

Universal Metal Centre Lathe CZ6266C

Model

Unit

CZ6250B / CZ6250C

CZ6266B / CZ6266C

Swing over bed

mm

500

660

Swing over cross slide

mm

310

420

Swing in gap

mm

720

870

Distance between centers

mm

1000/1500/2000/3000

Spindle bore

mm

(B series: 80), 105

Spindle bore taper

(B series: M.T.No.7), 113mm 1:20

Spindle speed number

(B series: 24), 12

Spindle speed range

r.p.m

(B series: 9-1600), 36-1600

Metric threads range

mm

(B series: 1-224 / 46), 1-14/22

Inch threads range

T.P.I

(B series: 28-1/8 / 46), 28-2/26

Diametrical pitches range

D.P.

(B series: 56-1/4 / 45), 56-4/24

Module pitches range

M.P.

(B series: 0.5-112 / 42), 0.5/7/18

Longitudinal feed range

mm/rev

0.063-2.52

Cross feed range

mm/rev

0.027-1.07

Longitudinal rapid travel

m/min

4.5

Cross rapid travel

m/min

1.9

Max. travel of top slide

mm

145

Max. travel of cross slide

mm

340

360

Max. size of tool (W x H)

mm

25 x 25

Tailstock sleeve diameter

mm

75

Tailstock sleeve taper

M.T.No.5

Tailstock sleeve tavel

mm

150

Main motor

kw

7.5(10HP)

Overall dimensions (L x W x H)

mm

2500/3000/3500/4500x900x1259

2500/3000/3500/4500x1100x1450

Net weight

kg

2750/3000/3250/3600

3050/3350/3850/4350
