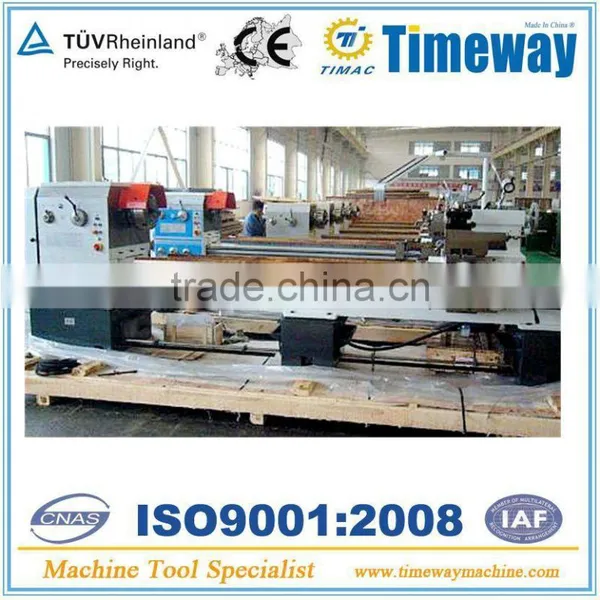

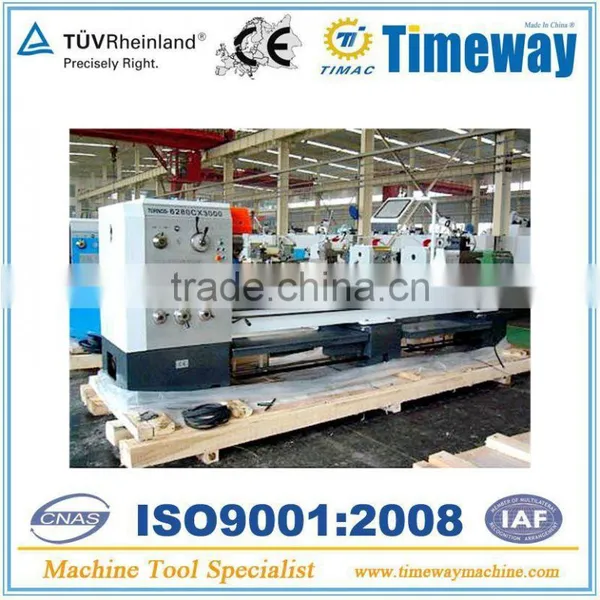

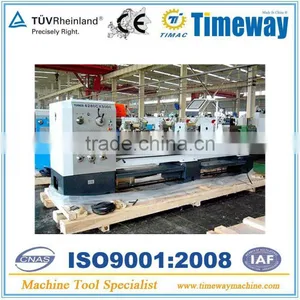

"800mm swing " High Precision Horizontal Gap-bed Lathe Machine For Sale (TORNOS-6280C)
Features :
1. The machine can perform internal and external turning ,taper turning , end facing , and other rotary turning;
2. Threading Inch , Metric , Module , and D.P. ;
3. Perform drilling , boring and groove broaching.
Standard Accessories :
3 jaw chuck , Dead center , Reduction sleeve , Oil gun , Coolant system , Working light .
4 jaw chuck , Face plate , Steady rest , Follow rest , Chasing dial indicator , Liver center.
Optional Accessories
Digital readout system (DRO) , Quick change tool post & holders , Taper turning attachment .
Parameter :
Model |
Unit |
TORNOS-6280C |
Max. Swing over bed |
mm |
800 |
Max. Swing in gap |
mm |
1000 |
Max. Swing over cross slide |
mm |
560 |
Max. Workpiece length |
mm |
2000/3000 |
Spindle bore diameter |
mm |
105 |
Spindle speed |
rpm |
12 steps 30-1400 |
Diameter of tailstock quill |
mm |
90 |
Max. Travel of tailstock quill |
mm |
150 |
Taper of tailstock quill (Morse) |
|
Morse NO.5 |
Tool O.D. size |
mm |
25×25 |
Max. Travel of top slide |
mm |
145 |
Max. Travel of cross slide |
mm |
320 |
Longitudinal feed range |
mm /r |
65 kinds, 0.063-2.52 |
Cross feed range |
mm /r |
65kinds, 0.027-1.07 |
Metric threads range |
mm |
22kinds, 1-14 |
Inch threads range |
T.P.I |
25 kinds, 2-28 |
Module threads range |
M.P |
18 kinds, 0.5-7 |
Diametrical threads range |
D.P |
24 kinds, 4-56 |
Main motor power |
kw |
7.5 |
Cooling pump motor power |
kw |
0.06 |
Overall dimension (L×W×H) |
mm |
3365/4365×1340×1490 |
Net weight |
kg |
3000/3200 |
