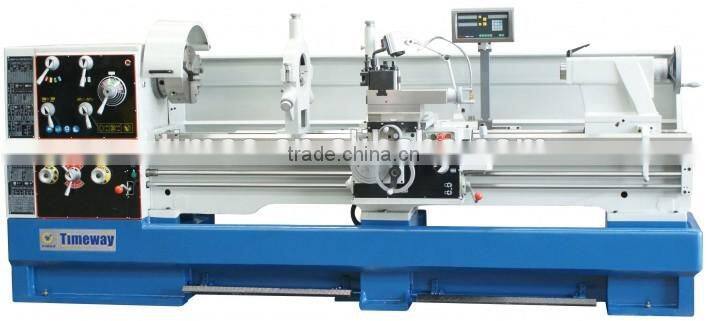

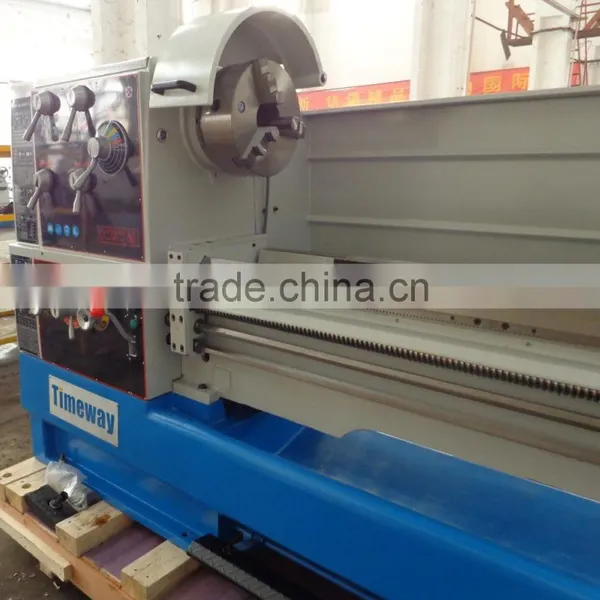

26" & 31"Manual Precision Gap bed Lathe Machine For Sale

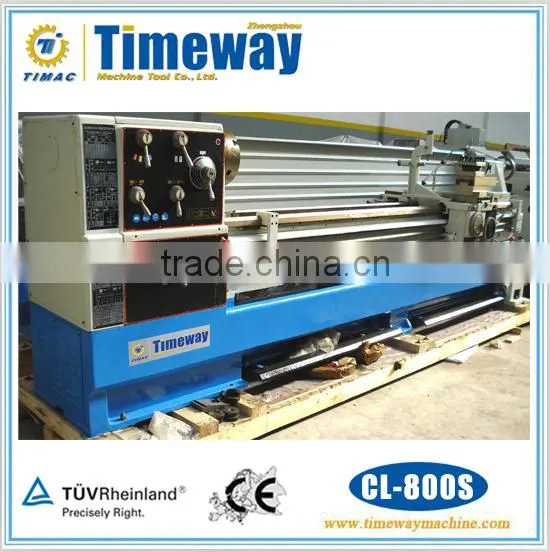

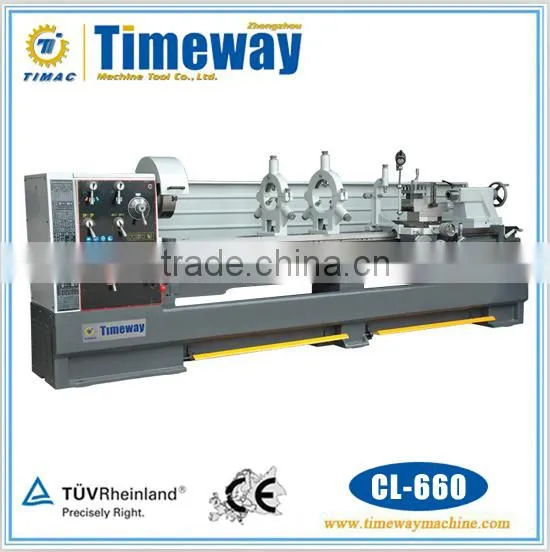

CL-600 CL-800 CL-800S
Features :
1. Three points support for spindle;
2. Powerful precision gear head lathes with cost effective;
3. Need not change any gears you can turn all the metric and inch thread indicating in chart;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

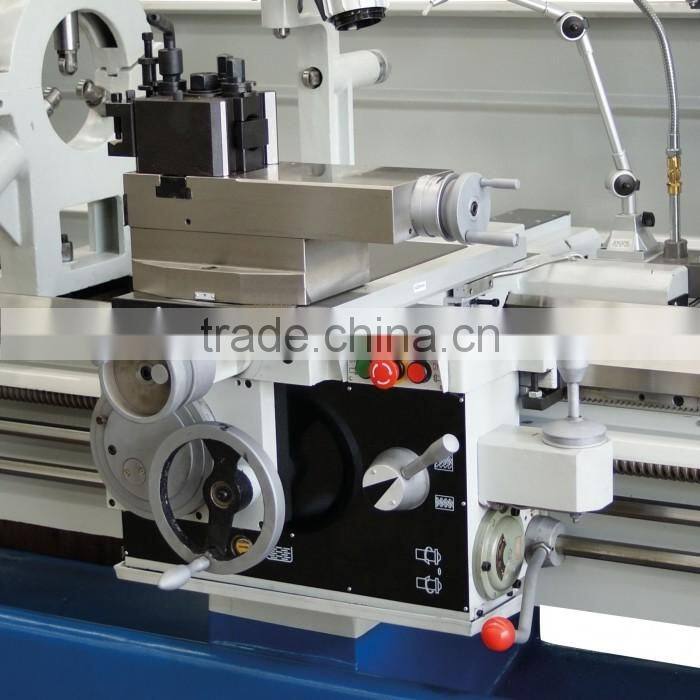

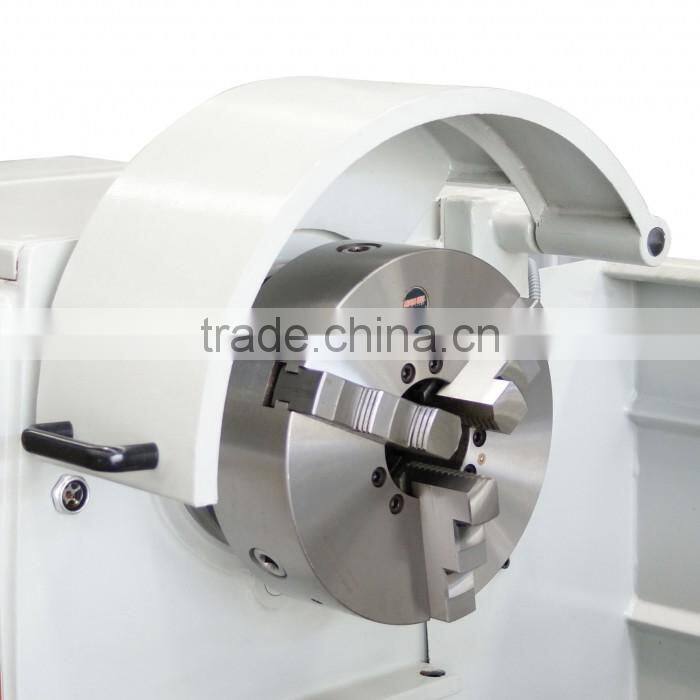

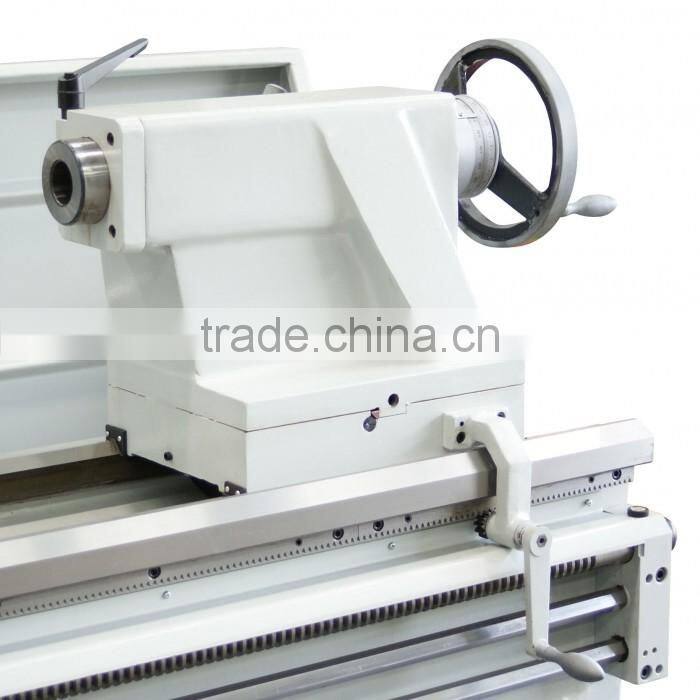

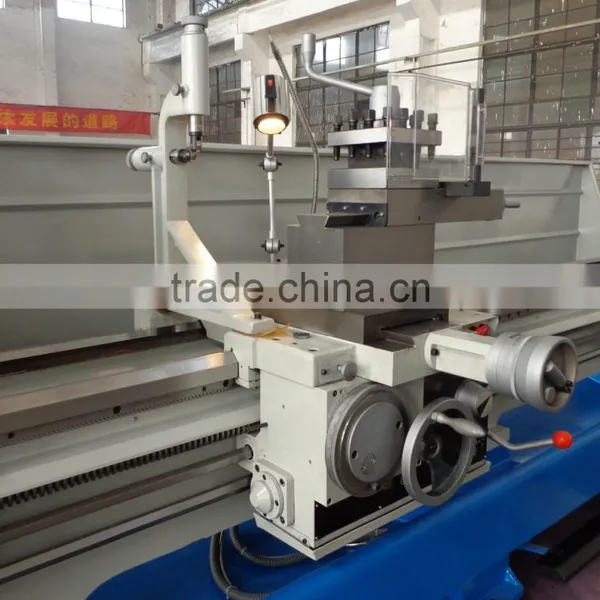

• Spindle (manual 3-jaw chuck) • Carriage • Manual Tailstock
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Changing gears, Dead center,Reduction sleeve, oil gun, Coolant system, Working light

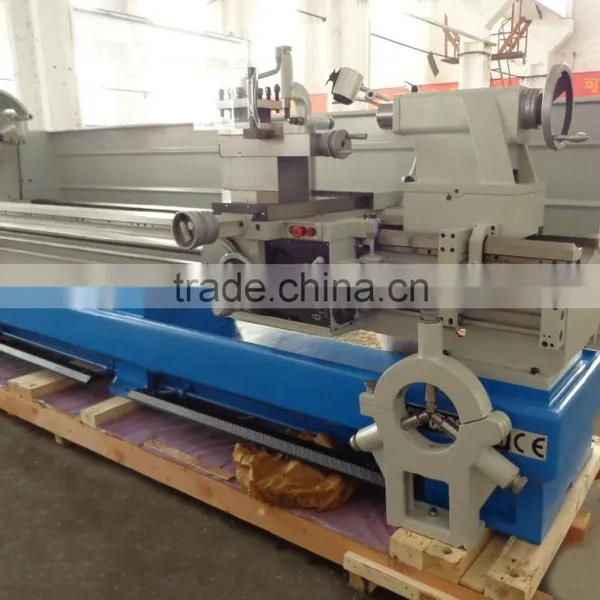

Face plate, Steady rest, Follow rest, Chasing dial indicator
Optional Accessories :
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment

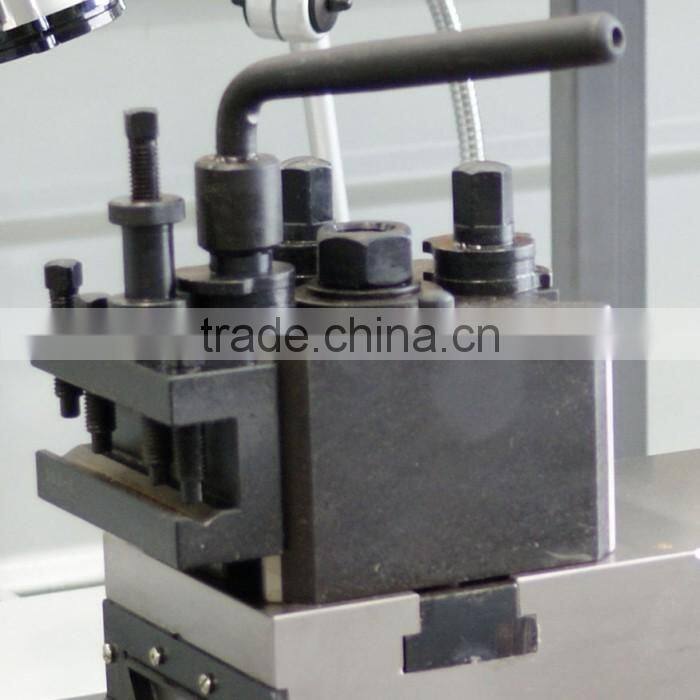

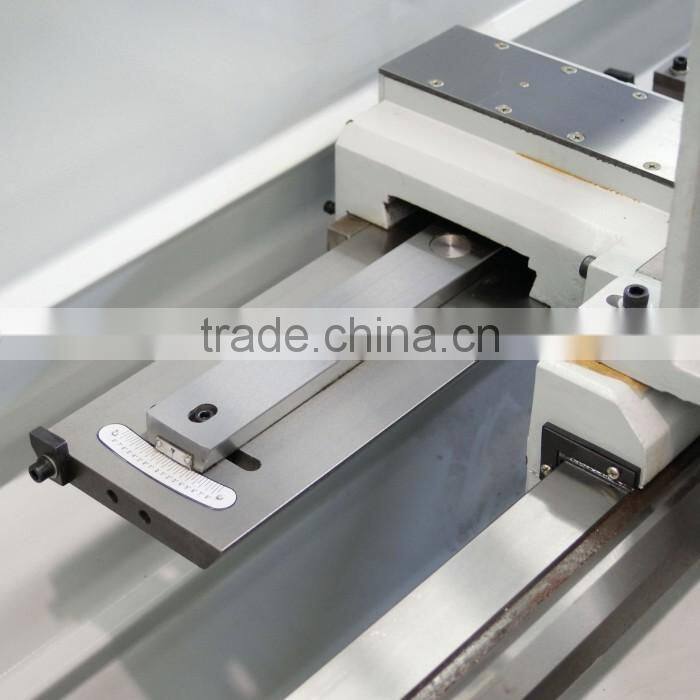

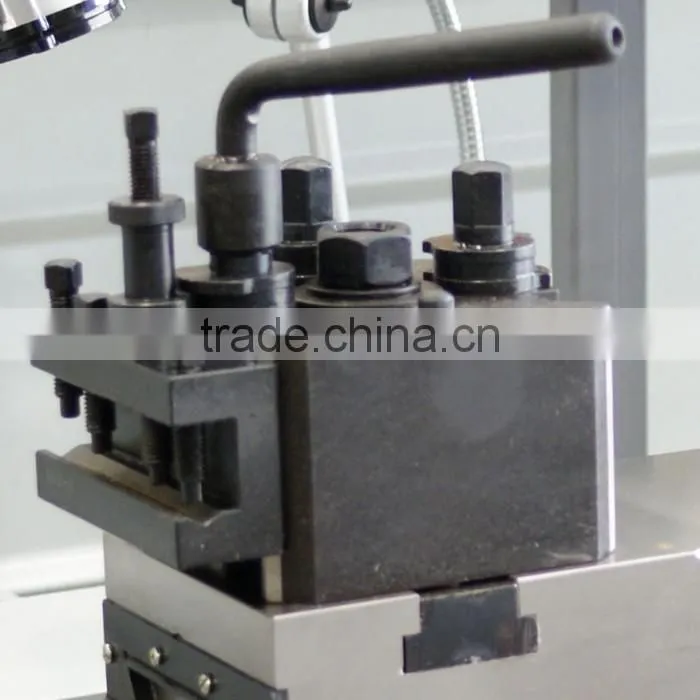

• Taper Turning Attachment • Digital Readout System(DRO) • Quick Change Tool-post
Parameter :
Specification |
Unit |
CL-660 |
CL-800S |
CL-800 |
|
Max. Swing over bed |
mm |
Φ660 |
Φ800 |
||
Max. Swing over cross slide |
mm |
Φ440 |
Φ570 |
Φ560 |
|
Max. Swing in gap |
mm |
Φ900 |
Φ1035 |
Φ1040 |
|
Distance between centers |
mm |
1500/2000/3000 |
|||
Valid length of gap |
mm |
250 |
|||
Width of bed |
mm |
400 |
400 |
510 |
|
Spindle nose |
|
D1-8 |
|||
Spindle bore |
mm |
105 |
|||
Taper of spindle bore |
|
Φ113(1:20) / MT5 |
|||
Range of spindle speed |
rpm |
16changes 25-1600 |
16changes 17-1100 |
||
Max. Travel of top slide |
mm |
230 |
|||
Max. Travel of cross slide |
mm |
368 |
420 |
||
Max. Section of tool |
mm |
25×25(1"×1") |
|||
Pitch thread of lead screw |
mm /T.P.I. |
Φ40mm×2T.P.I. or Φ40mm×12mm |
|||
Longitudinal feeds range |
mm/r |
25 kinds, 0.044-1.48 |
|||
Cross feeds range |
mm/r |
25 kinds, 0.022-0.74 |
|||
Metric threads range |
mm |
0.45-120(54 kinds) |
|||
Inch threads range |
T.P.I. |
7/16-80(54 kinds) |
|||
Diametrical threads range |
mm |
7/8-160 (42 kinds) |
|||
Module threads range |
MP |
0.25-60 (46 kinds) |
|||
Diameter of tailstock sleeve |
mm |
Φ90 |
|||
Travel of tailstock sleeve |
mm |
235 |
|||
Taper of tailstock sleeve |
|
No.5 Morse |
|||
Power of main motor |
kw |
7.5k(10HP) 3PH |
1115HP) |
||
Power of coolant pump |
w |
0.1(1/8HP) 3PH |
|||
Overall dimension |
cm |
3210/3710/4710×1230×1670 |
3210/3710/4710×1360×1670 |
||
Packing size |
cm |
3240/3740/4740×1140×1910 |
3240/3740/4740×1270×1910 |
||
Net weight |
kg |
2800/2900/3300 |
2850/3050/3450 |
3100/3300/3900 |
|
Gross weight |
kg |
3100/3200/3700 |
3180/3450/3980 |
3450/3750/4450 |
|
