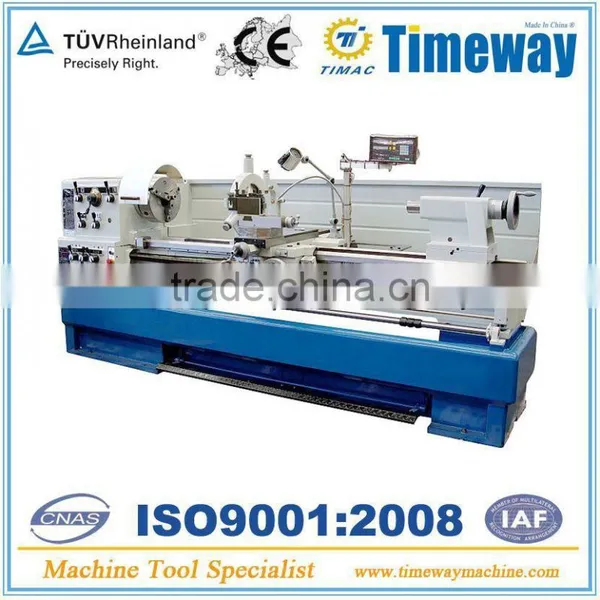

Precision Gap Bed Lathe Machine With Detailed Specification ( CL-560 )

Name: Precision Gap Bed Lathe Machine With Detailed Specification ( CL-560 )
Brand: TIMAC
SKU: 140796436
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 89,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 560mm

Brand Name TIMAC

Model Number CL-560

Voltage as customer's request

Power(W) 7.5 kw

Dimension(L*W*H) 290/340*112*143 cm

Weight net weight : 2370/2720 kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Precision Gap Bed Lathe Machine With Detailed Specification, Lathe Machine For Sale

Product Description

Standard Accessories :

3 jaw chuck , Dead center , Reduction sleeve , Oil gun , Coolant system , Working light,4 jaw chuck ,

Face plate , Steady rest , Follow rest , Chasing dial indicator , Liver center

Optional Accessories:

Digital readout system (DRO) , quick change tool post & holders , taper turning attchment

Parameter :

Model	Unit	CL-560
Max. Swing over bed	mm	560
Max. Swing over cross slide	mm	350
Max. Swing in gap	mm	788
Distance between centers	mm	1500/2000
Valid length of gap	mm	200
Width of bed	mm	350
Spindle nose		D1-8
Spindle bore	mm	80
Taper of spindle bore		Morse No. 7
Range of spindle speed	rpm	12changes, 25-1600
Max. Travel of top slide	mm	130
Max. Travel of cross slide	mm	326
Max. Section of tool	mm	25×25
Pitch thread of leads screw		6 mm/4 T.P.I
Longitudinal feeds range	mm/r	35 kinds, 0.059-1.646
Cross feeds range	mm/r	35 kinds, 0.020-0.573
Metric threads range	mm	47kinds, 0.2-14
Inch threads range	T.P.I	60kinds, 2-112
Diametrical threads range	D.P	50kinds, 4-112
Module threads range	M.P	39kinds, 0.1-7
Diameter of tailstock sleeve	mm	75
Travel of tailstock sleeve	mm	180
Taper of tailstock sleeve		Morse No.5
Power of main motor	kw	7.5
Power of coolant pump	kw	0.1
Overall dimension (L×W×H)	cm	290/340×112×143
Packing size (L×W×H)	cm	296/346×113×182
Net weight	kg	2370/2720
Gross weight	kg	2740/3110
