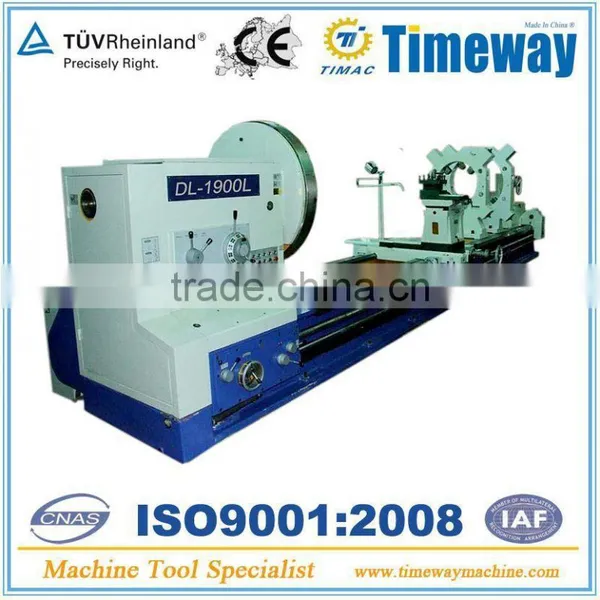

Heavy Duty Horizontal Lathe Machine For Sale ( DL-1900 )
Features :
1. The machine can perform to turn end faces, cylindrical surfaces and internal holes of various parts a well as
metric, inch, module, and pitch threads . .
2. The top slides can be operated individually by power for cutting short taper surface , it also can be turned
automatically through the compound movement combining longitudinal feed with the top slide feed, moreover
the machine may be used for drilling , boring ,and trepanning.
3. They are characteristics of power, high spindle speed, and high rigidity.
4. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Standard Accessories :
1. four-jaw chuck Φ 1250mm
2. Steady rest Φ120--480mm (for 1250/1400/1600) , Φ400--700mm(for 1800/1900)
3. Follow rest
4. Morse No.6 Center
5. Foundation bolts
Optional Accessories :
1. Metric chasing dial device
2. Inch chasing dial device
3. Inch leadscrew
4. T-type toolpost
Parameter :
Specification |
Unit |
DL-1900L |
Max. Swing over bed |
mm |
1900 |
Max. Swing over cross slide |
mm |
1500 |
Width of bed |
mm |
1100 |
Max. Length of workpiece |
mm |
1000-8000 |
Spindle nose |
|
A15 |
Spindle bore diameter |
mm |
130 |
Taper of spindle bore |
|
Metric NO. 140# |
Range of spindle speed |
rpm |
3.15-315 (21kinds) |
Longitudinal feed range |
mm/r |
0.1-12 ( 56 kinds) |
Transverse feed range |
mm/r |
0.05-6 (56kinds) |
Metric thread range |
mm |
1-120 ( 44kinds) |
Inch thread range |
T.P.I |
3/8-28 ( 31kinds) |
Module thread range |
M.P |
0.5-60 ( 45kinds) |
Diametrical thread range |
D.P |
1-56 (25kinds) |
Tailstock sleeve taper |
|
Metric 80# |
Tailstock sleeve diameter |
mm |
260 |
Tailstock sleeve travel |
mm |
200 |
Main motor power |
kw |
30 |
Rapid motor power |
kw |
1.5 |
Coolant pump motor |
kw |
0.125 |
