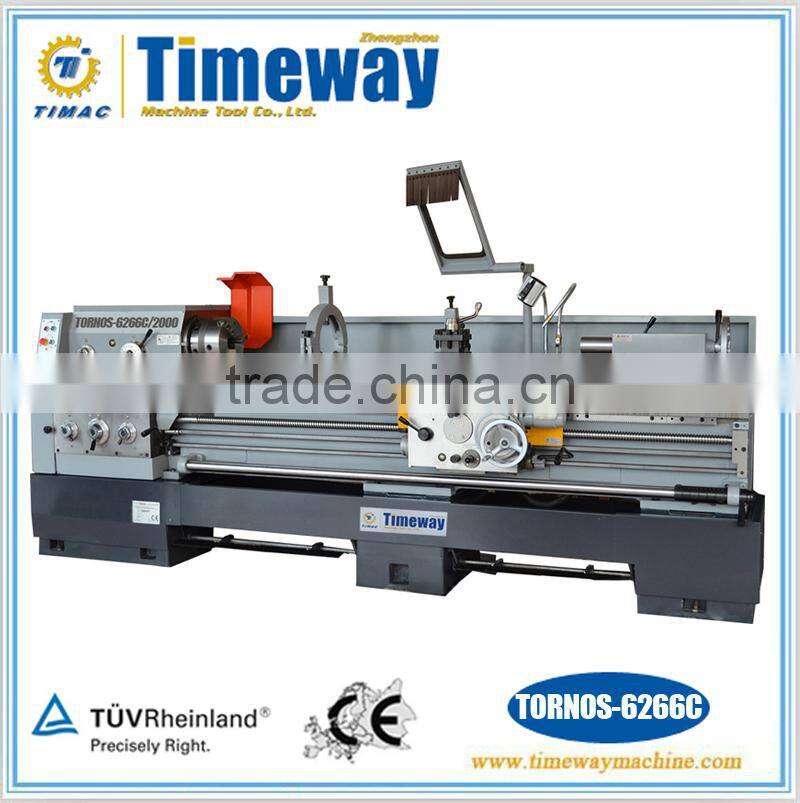

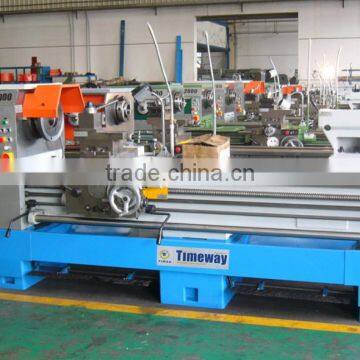

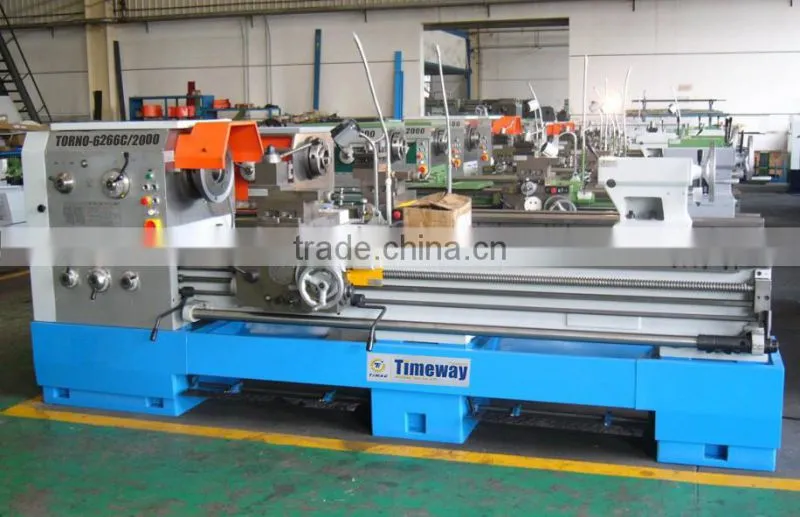

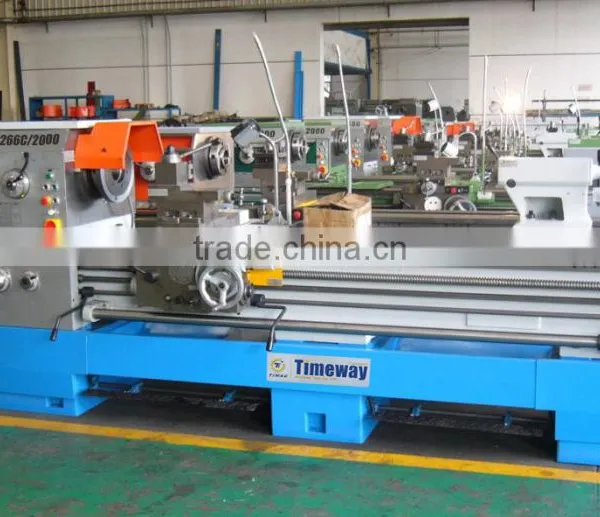

Horizontal Gap-bed Lathe (TORNOS-6266C)
Feature:
1.Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2.Threading Inch, Metric, Module and D.P;
3.Perform drilling, boring and groove broaching;
4.Machine all kinds of flat stocks and those in irregular shapes;
5.Respectively with through-hole spindle bore, that can hold barstocks in larger diameter;
6.Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7.There are hand brake and foot brake for users to choose.
Parameter:
Specification | Unit | TORNOS-6240B | TORNOS-6250B | TORNOS-6266B | TORNOS-6280B | TORNOS-6250C | TORNOS-6266C | TORNOS-6280C | |||||||||
Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ800 | Φ500 | Φ660 | Φ800 | |||||||||
Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ1000 | Φ710 | Φ870 | Φ1000 | |||||||||
Max. swing dia. over slides | mm | Φ220 | Φ300 | Φ420 | Φ560 | Φ300 | Φ420 | Φ560 | |||||||||
Max. workpiece length | mm | 1000/1500/2000/3000 | 2000/3000 | 1000/1500/ 2000/3000 | 2000/3000 | ||||||||||||
Spindle bore diameter | mm | Φ52 | Φ82 | Φ105 | |||||||||||||
Type of spindle nose | no | 6240B:ISO 702/III NO.6 bayonet lock;others:ISO 702/II NO.8 com-lock type | |||||||||||||||
Spindle speed | rpm | 24 steps 9-1600 | 24 steps 8-1400 | 12 steps 36-1600 | 12 steps 30-1400 | ||||||||||||
Diameter of quill | mm | Φ75 | Φ90 | Φ75 | Φ90 | ||||||||||||
Max. travel of quill | mm | 150 | |||||||||||||||
Taper of quill (Morse) | MT | 5 | |||||||||||||||
Tool O.D. size | mm | 25X25 | |||||||||||||||
Max. X travel | mm | 145 | |||||||||||||||
Max. Z travel | mm | 320 | 310 | 320 | |||||||||||||
X feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.063-2.52 | ||||||||||||||
Z feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 | ||||||||||||||
Metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 | ||||||||||||||
Inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 | ||||||||||||||
Module threads | πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 | ||||||||||||||
Diametric pitch threads | t.p.i.π | 42 kinds 56-1/4 | 24 kinds 56-4 | ||||||||||||||
Spindle motor power | kw | 7.5 | |||||||||||||||
Cooling pump motor power | kw | 0.06 | |||||||||||||||
*** Standard accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Reduction sleeve, Oil gun, Coolant system, Foot brake, Working light, Chasing dial indicator, Operation manual (English edition).
*** Optional accessories:
Digital readout system (DRO),
Quick change tool post & holders,
Taper turning attachment
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2635*1150*1750MM N.W./G.W.: 2050/2250KG
Container loaded: 4 sets / 20'GP
