Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > 24"-40" Precision Gap Bed Lathe Machine For Sale At Low Price

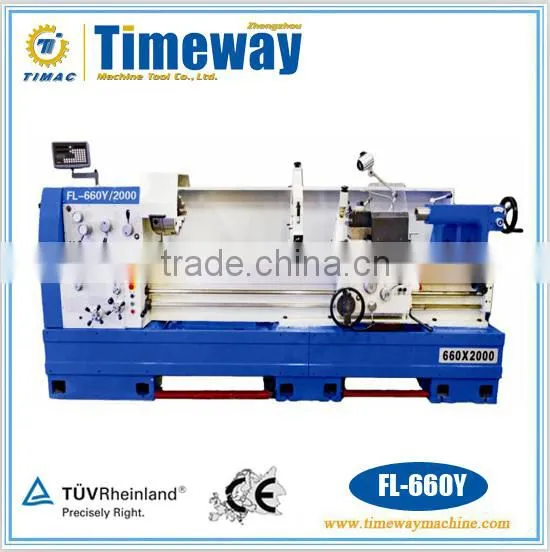

24"-40" Precision Gap Bed Lathe Machine For Sale At Low Price

Name: 24"-40" Precision Gap Bed Lathe Machine For Sale At Low Price
Brand: TIMAC
SKU: 140796418
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

24"-40" Precision Gap Bed Lathe Machine For Sale At Low Price thumbnail-1

24"-40" Precision Gap Bed Lathe Machine For Sale At Low Price photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Chiana Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 600-1000mm

Brand Name TIMAC

Model Number FL-600Y, FL-660Y, FL-800Y, FL-1000Y

Voltage as customer's request

Power(W) 5.5/7.5kw

Dimension(L*W*H) 2450*1150*1750mm

Weight 1600/2000kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

24"-40" Precision Gap-bed Lathe Machine For Sale At Low Price

Product Description

Standard Accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).

Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution

Parameter:

Specification		Unit	FL-600Y	FL-660Y	FL-800Y	FL-1000Y
Capacity	Max.swing over bed	mm	600	660	800	1000
	Max.swing over cross slide	mm	405	435	545	745
	Max.swing in gap	mm	800	860	1000	1200
	Effective length of gap	mm	280
	Distance between centers	mm	1000/1500/2000/3000/4000
	Width of bed	mm	400
Headstock	Spindle bore	mm	103(Optional: 165)
	Spindle nose		ISO-D111(Optional:ISO-D15)
	Spindle taper		Metric 115
	Spindle speed(No.)	rpm	9-1275(ccw/18), 16-816(cw/6)
Feeds	Longitudinal feeds range	mm/r	72kinds 0.073-4.066/rev
	Cross feeds range	mm/r	72kinds 0.036-2.033/rev
	Metric threads range	mm	72kinds 0.5-112
	Inch threads range	T.P.I	72kinds 1/4-56
	Module threads range	mm	36kinds 0.5-7
	Diametral Threads range		36kinds 4-56
Carriage	Max.travel of top slide	mm	110
	Max.travel of cross slide	mm	325
	Max.size of toolshank	mm	32×32
Tailstock	Dia.of tailstock sleeve	mm	90
	Taper of tailstock sleeve		MT6
	Max.travel of tailstock	mm	150
Motor	Main drive motor	kw	7.5		11
	Rapid traverse motor	w	250
	Coolant pump motor	w	125
Packing Size	Center distance:1000mm	cm	285×115×185
	1500mm	cm	335×115×185
	2000mm	cm	385×115×185
	3000mm	cm	585×115×185
	4000mm
Net/gross weight	Center distance:1000mm	kg	2900/3100	3100/3300	3300/3500	3500/3700
	1500mm	kg	3100/3300	3300/3500	3500/3700	3700/3900
	2000mm	kg	3300/3600	3500/3800	3700/4000	3900/4200
	3000mm	kg	3700/4100	3900/4300	4100/4500	4300/4700
	4000mm	kg	4100/4600	4300/4800	4500/5000	4700/5200
