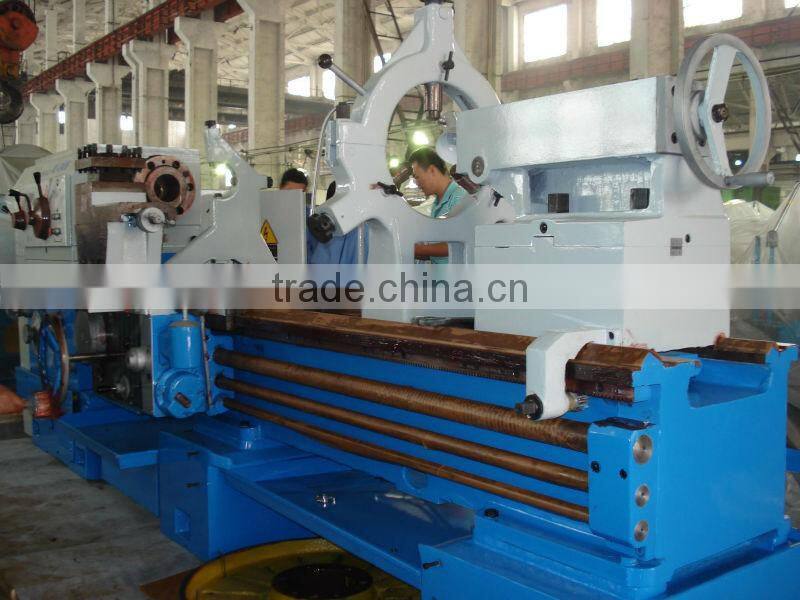

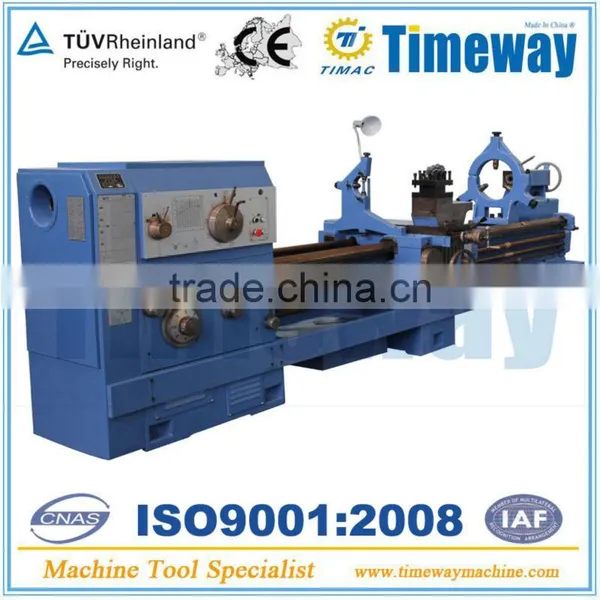

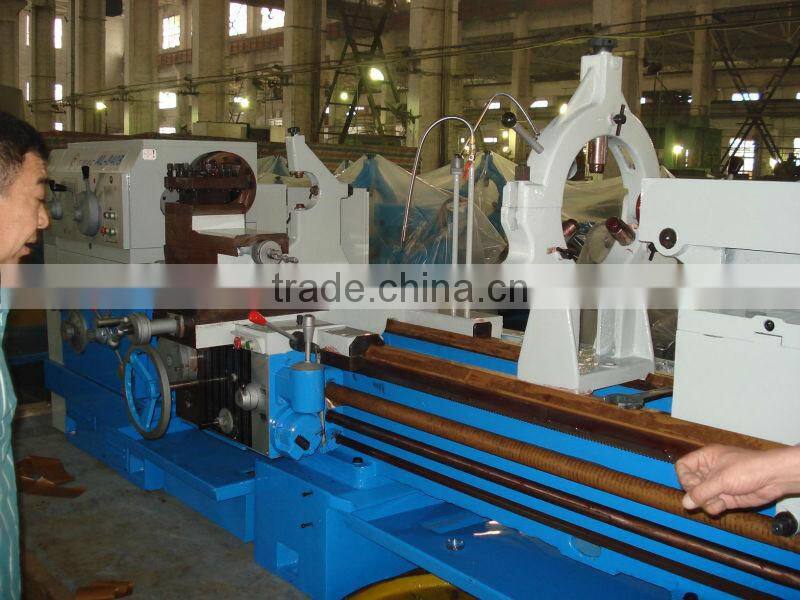

800mm Swing Gap Bed Lathe / Horizontal Lathe Machine AL-800B

Specifications

- Horizontal gap bed lathe
- Swing dia. 630mm
- Different turning length 750-10000mm
- Spindle bore 110mm
- Bed width 550mm

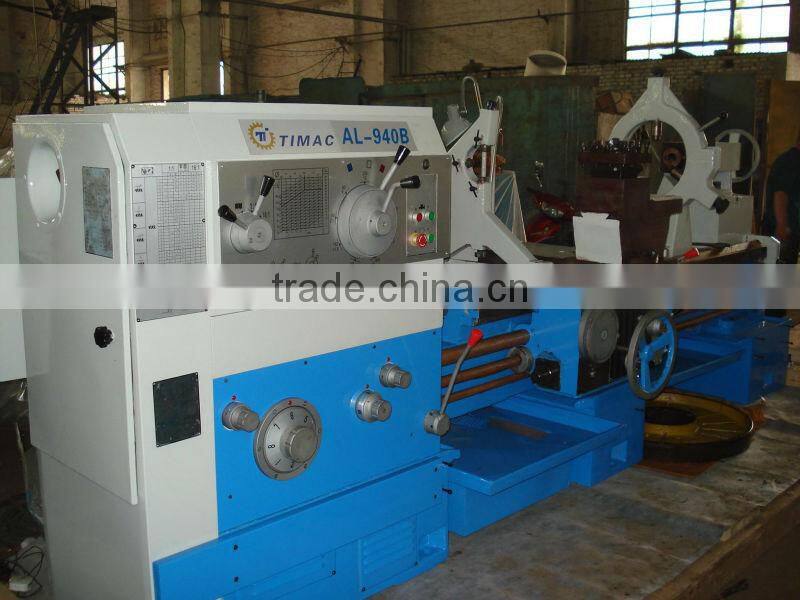

Gap bed Lathe Machine AL-630B, AL-800B, AL-940B

These gap bed  lathes are suitable mainly for turning internal and external cylindrical, conical and other swing surfaces as well as various metric, inch module and diametric pitch threads. They can also be used for broaching oil grooves and keyways.



Features:

1. The side wall of bed is constructed with double-rib plates, and the shape of internal ribs is of box type and bevel ribs combination.

2. On apron, there is a device operated by a single lever, used for rapid traverse of the carriage.

Spindle’s braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.

3. The saddle guideway is glued by “TSF” soft belt wear resisting materials.

4. We can equip the lathe with automatic feeding mechanism.

  The top slid can be used independently for turning short cone, or in combination with longitudinal feeding turing long taper surface.



Specification		Unit	AL-630B	AL-800B	AL-940B
Capacities	Swing over bed	mm	630	800	940
	Swing over carriage	mm	350	520	660
	Max. length of workpiece	mm	750 1000 1500 2000 3000 4000  5000 6000 7000 9000 10000
	Max. turning length	mm	600 850 1350 1850 2850 3850  4850 5850 6850 8850 9850
	Swing over gap	mm	830	1000	1140
	Effective width of gap	mm	300
	Span of guideway	mm	550
Spindle	Spindle nose		C11
	Spindle hole	mm	110
	Taper hole of spindle		1:20/120
	Range of spindle speeds	r/min	7.5~1000	6~800	6~800
	Number of spindle speeds		18kinds
Feed motion	Longitudinal and cross	r/min	64; 0.1~24.32
	Cross-to-longitudinal feed rate		1/2
	Screw pitch of leadscrew	mm	12
	Number and range of metric thread	mm	50; 1~240mm
	Number and range of inch thread	T.P.I	26; 14~1
	Number and range of module thread	mm	53; 0.5~120mm
	Number and range of diametrical pitch thread	T.P.I	24; 28~1
	Rapid traverse speed of carriage	mm/min	4000
	Max. travel of cross slide	mm	440	540	570
	Max. travel of top slide	mm	200
	Section of tool shank	mm	32
Tailstock	Diameter of tailstock quill	mm	100
	Travel of tailstock quill	mm	250
	Taper hole of tailstock quill		Morse 5
Other	Main motor power	kw	11
	Machine mass	kg	3200 3400 3700 4200 4700 5800 6800 7800 8800 10800 11800	3400 3600 3900 4400 4900 6000 7000 8000 9000 11000 12000	3900 4100 4400 4900 5400 6500 7500 8500 9500 11500 12500
Machine overall dimension	Length	mm	2958 3275 3725 4225 5225 6275  7355 8355 9275 11275 12275
	Width	mm	1393	1437	1430
	Height	mm	1537	1622	1690













1. Free replacing parts available in the warranty period.

    Cost price replacing parts available beyond the warranty period.

2. Quick action and reply for the technical questions at any time in the whole life of the machine.

3. Overseas after service center available in some region.

4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

ISO, CE, TUV, SGS certified company.

* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.

* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
