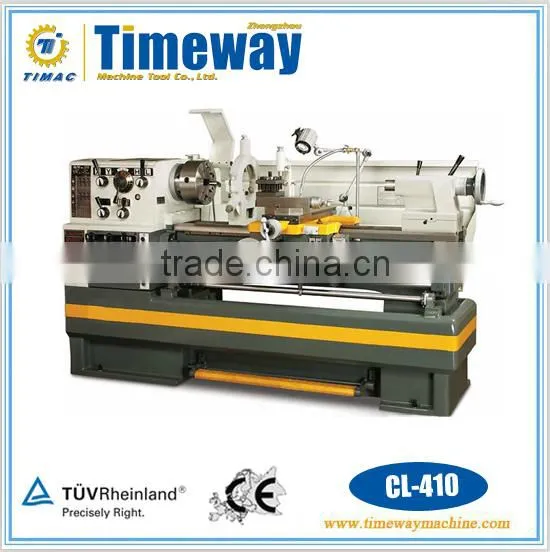

High Precision Horizontal Gap Bed Lathe Machine For Sale (CL-410)

Name: High Precision Horizontal Gap Bed Lathe Machine For Sale (CL-410)
Brand: TIMAC
SKU: 140796406
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 410mm

Brand Name TIMAC

Model Number CL-410

Voltage as customer's request

Power(W) 5.5 kw

Dimension(L*W*H) 220*108*137 cm

Weight 1670kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

High Precision Horizontal Gap Bed Lathe Machine For Sale

Product Description

Standard Accessories :

3 jaw chuck , dead center , reduction sleeve , oil gun , coolant system , working light

Optional Accessories :

4 jaw chuck , face plate , steady rest , follow rest , chasing dial indicator , liver center

Optional Equipment :

Digital readout system (DRO) , quick change tool post & holders , taper turning attchment

Parameter :

Model	Unit	CL-410
Max. Swing over bed	mm	410
Max. Swing over cross slide	mm	220
Max. Swing in gap	mm	640
Distance between centers	mm	1000/1500/2000
Valid length of gap	mm	165
Width of bed	mm	300
Spindle nose		D1-6
Spindle bore	mm	58
Taper of spindle bore		Morse No. 6
Range of spindle speed	rpm	12changes, 25-2000
Max. Travel of top slide	mm	128
Max. Travel of cross slide	mm	285
Max. Section of tool	mm	25×25
Pitch thread of leads screw		6 mm/4 T.P.I
Longitudinal feeds range	mm/r	42 kinds, 0.031-1.7
Cross feeds range	mm/r	42 kinds, 0.014-0.784
Metric threads range	mm	41kinds, 0.1-14
Inch threads range	T.P.I	60kinds, 2-112
Diametrical threads range	D.P	50kinds, 4-112
Module threads range	M.P	34kinds, 0.1-7
Diameter of tailstock sleeve	mm	60
Travel of tailstock sleeve	mm	128
Taper of tailstock sleeve		Morse No.4
Power of main motor	kw	5.5
Power of coolant pump	kw	0.1
Overall dimension (L×W×H)	cm	220/275/325×108×137
Packing size (L×W×H)	cm	225/280/330×112×162
Net weight	kg	1670/1920/2070
Gross weight	kg	1980/2265/2450
