CNC Milling Machine Standard Type/ KBM-1354B

Zhengzhou Timeway Machine Tool Co., Ltd.

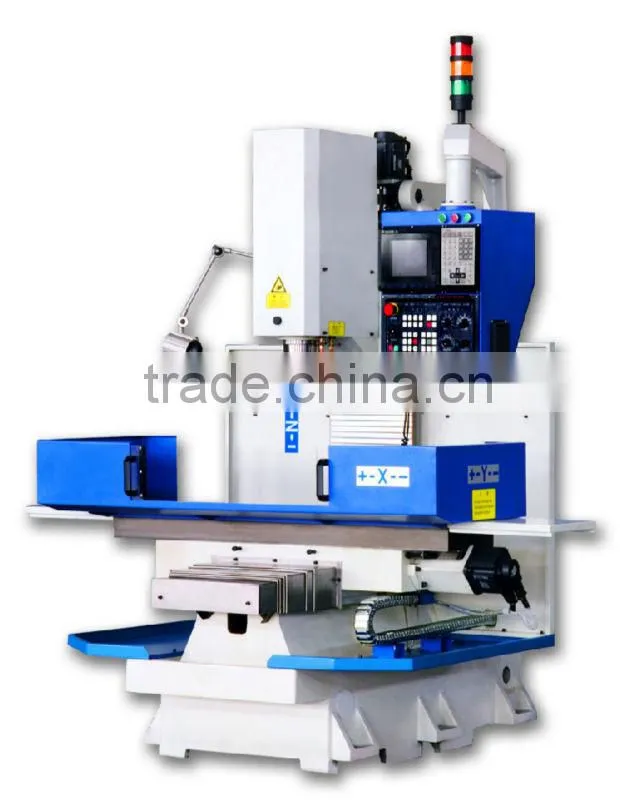

CNC Milling Machine Standard Type/ KBM-1354B thumbnail-1

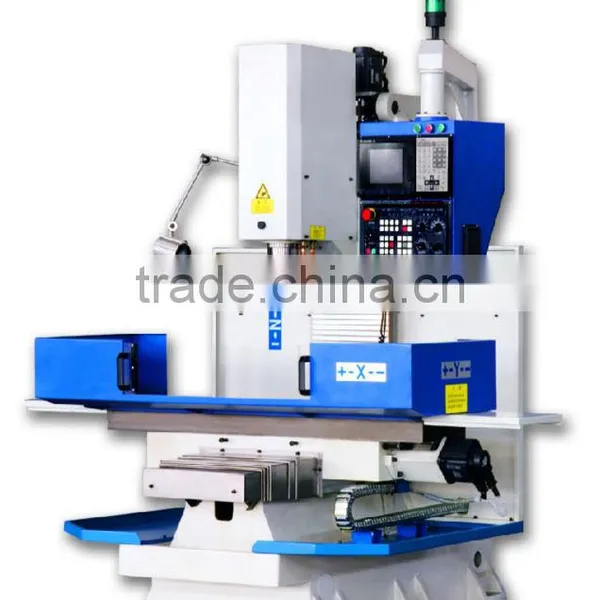

CNC Milling Machine Standard Type/ KBM-1354B photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
KBM-1354B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMAC
Model Number KBM-1354B
Type Vertical
CNC or Not CNC

Specifications

CNC Milling Machine
1.Worktable size:330*1370mm
2.Spindle speed:40~6000 r.p.m
3.CE norms

 CNC Milling Machine / KBM-1354B (Standard Type)

 CNC Milling Machine Standard type/ KBM-1354B

Feature:



CNC Milling Machinary



1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading. It's mainly used for boring and milling big surface and  big case parts.

2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.

3. Radial tool holder of facing head on the headstock head for radial machining

4. Optional digital readout device, reading accuracy 0.01 mm, positioning accuracy 0.05mm





Parameter:


ModelKBM-1354BKBM-1654KBM-2063KBM-2473
Table size  (LxW/mm)                                 1370x3301370x4061600x5101854x610
Table loading capacity(kg)40080012001500
T-slots(W/mmxNO)16x316x518x518x5
X-axis(mm)800100012001500
Y-axis(mm)450480700700
Z-axis(mm)480600600700
Max.move speed(mm/min)800080001000010000
Max.feed speed(mm/min)3000300040004000
Spindle speed(rpm/min)RANGE:40~6000
Spindle noseBT40BT40BT40/ BT50BT40 /BT50
Spindle motor(kw)5.57.57.57.5
Servo motor(kw)X/Y:1.0,Z:1.5X/Y/Z:1.5X/Y/Z:2.0X/Y/Z:2.0
Spindle quill diameter(mm)120150150/160150/160
Spindle to column surface(mm)450520640695
X-axis(mm)32x5p4Double nuts   32x5p4Double nuts  40x10p4Double nuts
Y-axis(mm)32x5p4Double nuts40x5p4Double nuts40x10p4Double nuts
Z-axis(mm)32x5p4Double nuts40x5p4Double nuts40x10p4Double nuts
Positioning accuracy±0.015mm±0.015mm±0.015mm±0.015mm
Repeatability±0.008mm±0.008mm±0.008mm±0.008mm
Packing dimension(mm)                    Semi-close cover 2250x2280x24502500x2280x26502900x2950x28002900x3150x2900
Close cover         2950x2280x24503200x2280x26504500x2750x2800/
Machine weight(kg)Semi-close cover2600380050006000
Semi-close cover340047206400/



  Standard accessories:

* Semi-isolated table shield;

* Auto. Lubrication system;

* Spindle air flow;

* Working light;

* Level adjusting screw and block;

* Clamping appratus



  Optional accessories:

* The Forth axis revolving table;

* Vertical arm type ATC;

* Full closed safety cover;

* Cutter length measuring unit;

* Edge finder;

* Shank
