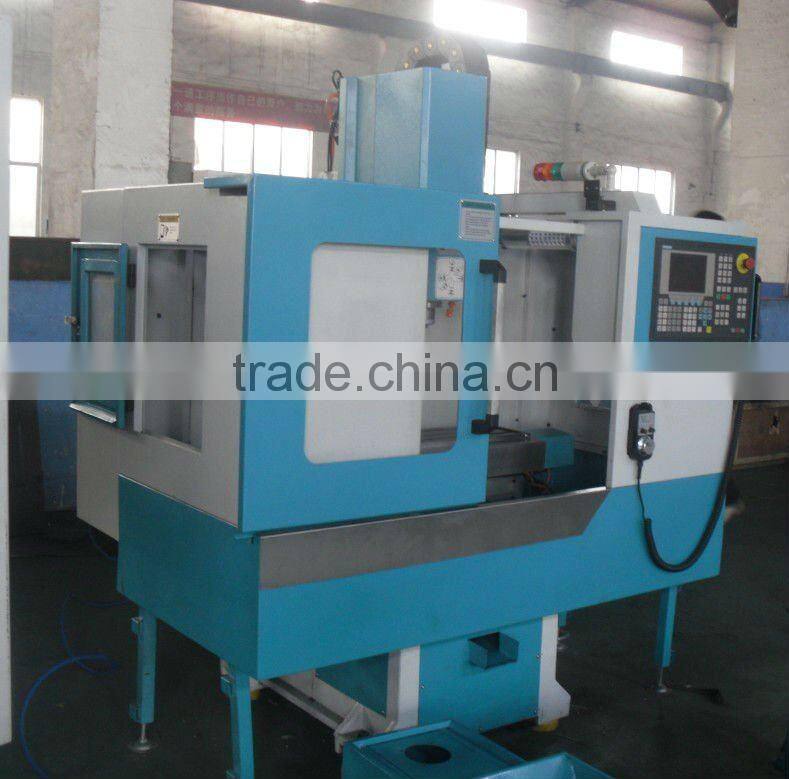

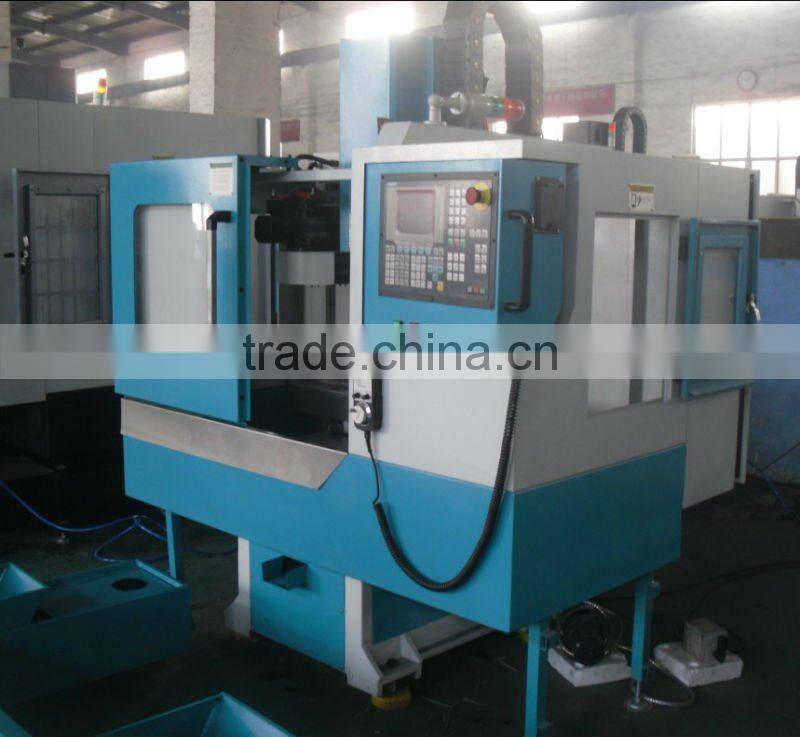

Small Sized CNC Milling Machine XK7133/XH7133

Name: Small Sized CNC Milling Machine XK7133/XH7133
Brand: TIMAC
SKU: 140796308
Availability: InStock

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name TIMAC

Model Number XK7133 XH7133

Type Vertical

CNC or Not CNC

Specifications

1. CNC milling machine
2. Taiwan 3 axis linear guideway
3. GSK218M CNC system
4. Taiwan BT30 spindle
5. Full guard structure

SMALL SIZED CNC MILLING MACHINE

Features:

1. Resin sand castings with high rigidity;

2. Taiwan 3 axis linear guideway;

3. GSK218M or SIEMENS 802C CNC system;

4. BT30, Taiwan high speed spindle unit 8000rpm;

5. Separated hand-wheel;

6. Full guard structure;

7. Adjustable sizing block and screw;

8. Automatic intermittent lubrication.

9. With 6 stations tool magazine on model XH7133.

Specification		Unit	XK7133/XH7133
Table size (LxW)		mm	690x210
T slot QTY / width / interval distance		mm	3/16/63
Max. load		kg	100
X travel		mm	330
Y travel		mm	220
Z travel		mm	320
Spindle nose to table		mm	90-410
Spindle center to column		mm	280
Spindle taper			BT30
Max. spindle speed		Rpm	8000
Main motor		kw	2.2
Feed motor	X torque	N.M	3.3
	Y torque	N.M	4
	Z torque	N.M	5
	Max. install size	mm	X: square 90x90, diameter φ80 Y,Z: square 110x110, diameter φ95
Rapid moving speed		m/min	10
Cutting speed		mm/min	1-4000
Ball screw (diameter / pitch)		mm	20/5
Linear guide way width		mm	20
Accuracy	Positioning accuracy	mm	0.016
Accuracy	Repeatability accuracy	mm	0.008
Tool changer	Funnel type (optional) BT30		6
Tool changer	Tool changing time	s	8
Air pressure		Mpa	0.6
Machine overall size (LxWxH)	Frame	mm	720x860x1160
Machine overall size (LxWxH)	Complete machine	mm	1200x1100x2000
