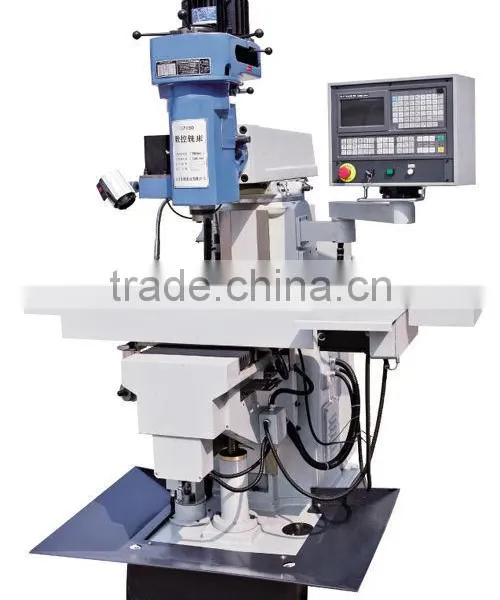

Economical CNC Milling Machine
US$ 6,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
KTM7130
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Tooth Milling Machine (CNC Gear Milling Machine )US$ 50,000 - 500,000MOQ: 1 Set -
CNC Bed-type Vertical Turret Milling MachineUS$ 11,000 - 20,000MOQ: 1 Set
-
CNC Bed-type Milling MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
Heavy Duty Large Size Strong Cutting CNC Milling MachineUS$ 60,000 - 100,000MOQ: 1 Set
-
Large Size Strong Cutting CNC Milling MachineUS$ 50,000 - 70,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
KTM7130
Type
Vertical
CNC or Not
CNC
Voltage
As require
Power(W)
0.85/1.5KW
Dimension(L*W*H)
1560x1340x2130mm
Weight
1300kg
Certification
TUV
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
| Specification | Unit | KTM7130 | |
| Spindle taper | 7:24 ISO30 | ||
| X-axis travel | mm | 460 | |
| Y-axis travel | mm | 210 | |
| Z-axis travel | mm | 380 | |
| Maximum spindle speed | rpm | 115-1750/8steps | |
| Spindle travel | mm | 100 | |
| Distance spindle nose to table | mm | 80-460 | |
| Spindle center to column guideway surface distance | mm | 200-500 | |
| X / Y axis rapid feed | mm/min | 3000 | |
| Z-axis rapid feed | mm/min | 3000 | |
| Cutting feed | mm/min | 1-2000 | |
| Table area | mm | 1000×280 | |
| Maximum load capacity | kg | 200 | |
| Worktable "T" slots | Number of slots | 5 | |
| Width | mm | 14 | |
| Space | mm | 63 | |
| Main motor power | kW | 0.85/1.5 | |
| Machine weight | kg | 1300 | |
| Overall dimensions | mm | 1560×1340×2130 | |
Standard:
GSK983MCNC controller
Optional:
Other China make CNC controller
