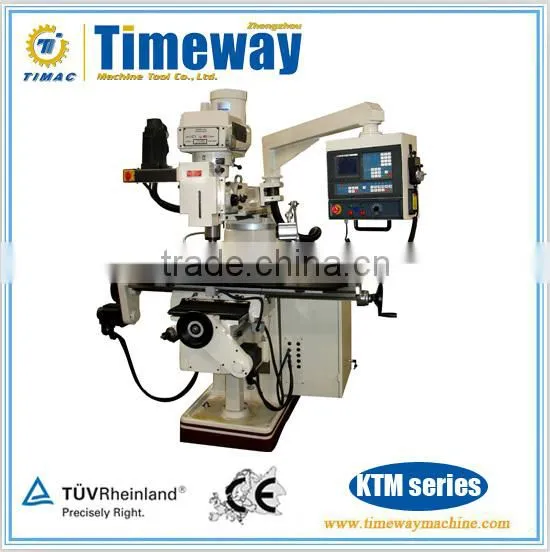

CNC Vertical Milling Machine For Sale at a LOW Price
Features:
* The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading.
* The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
* Radial tool holder of facing head on the headstock head for radial machining.
Parameter:
Specification | Unit | KTM-230A | KTM-250 | KTM-250C | KTM-250D | ||
Table size | mm | 230×1067 | 254×1270 | ||||
230×1246 | 254×1370 | ||||||
T-slot |
| 3×16 | |||||
Table loading | kg | 200 | 280 | ||||
X axis travel(Longitudinal) | mm | 550 | 750 | ||||
740 | 850 | ||||||
Y axis travel(Cross) | mm | 300 | 400 | ||||
Z axis (Quill move) travel | mm | 127 | |||||
X/Y/Z axis rapid feed | mm/min | 5000 | |||||
X/Y/Z axis servo motor | kw | 1 | |||||
Knee vertical travel | mm | 380 | 400 | ||||
Ram travel | mm | 315 | 465 | ||||
Distance from spindle to table | mm | 0-380 | 0-400 | ||||
Milling | Spindle | Standard:16 steps | r.p.m | 50HZ:60-4500/60HZ:80-5440 | |||
Optional:Variable | 65-4200 | ||||||
Spindle taper |
| Standard:R8/Optional:ISO40 | |||||
Power of motor | HP | 3HP | |||||
Head | Swiveling | º | 90º | ||||
Tilting | º | 45º | 45º |
| 45º | ||
CNC controller |
| FANUC/GSK/KND | |||||
Packing size | cm | 165×190×200 | 190×200×223 | ||||
Gross weight | kg | 1200 | 1500 | 1700 | |||
Standard accessories:
Draw bar, Tool box and tools, Working lamp, Electro lubricating pump, Hung up control panel, Cooling system
Oil collecting plate, Plastic splashing guard
Optional accessories:
Air draw bar, Machine vise, Universal clamping kits, Collets and chuck
