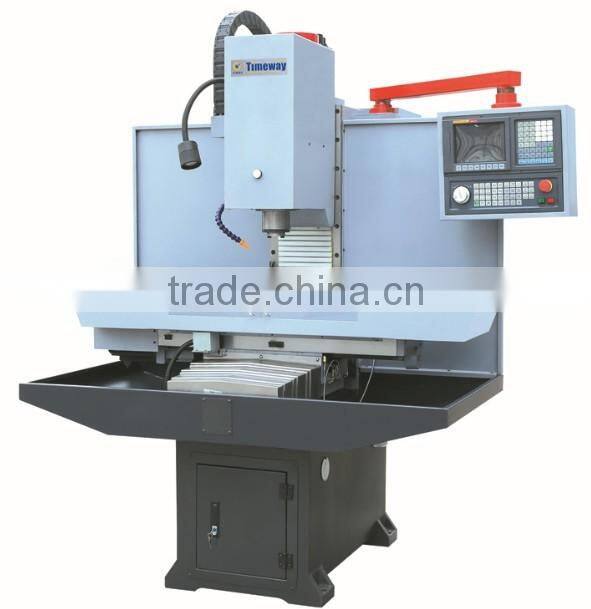

Economic Type CNC Vertical Bed-type Miller

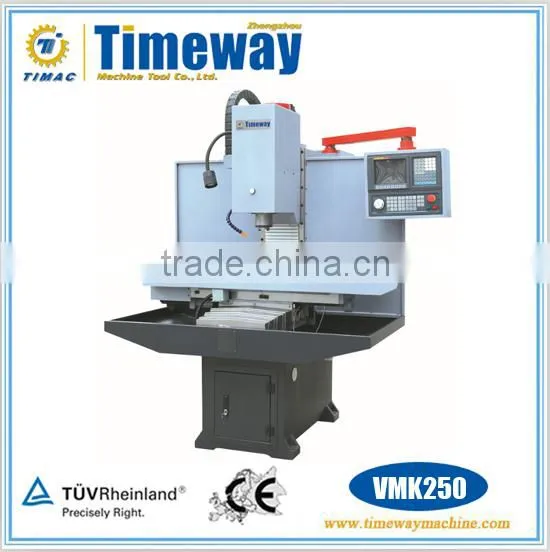

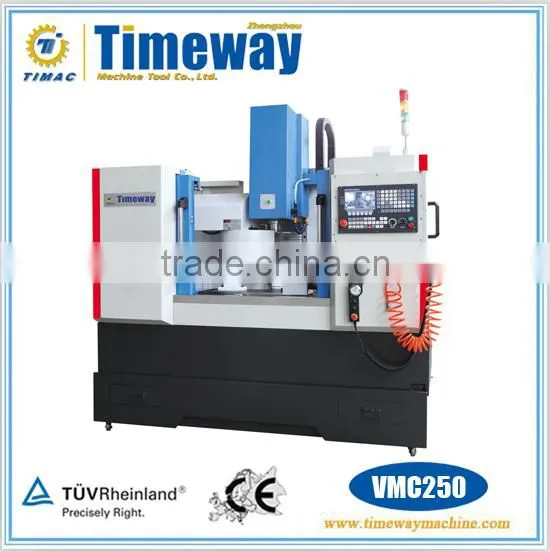

VMK250 VMC250
Technical Parameters
Specification |
Unit |
VMC250 |
XK7125 |
Main motor power |
kw |
2.2 |
2.2 |
Highest spindle speed |
rpm |
6000 |
6000(optional 3000) |
Z-axis motor torque |
N.m |
7.7 |
7.7 |
X-axis motor torque |
N.m |
6 |
6 |
Y-axis motor torque |
N.m |
6 |
6 |
The spindle taper hole |
|
BT30 |
BT30 |
Worktable size |
mm |
900x250 |
900*250 |
Tool storage capacity |
T |
10 |
- |
Stroke (X/Y/Z-axis) |
mm |
450x260x380 |
450x260x380 |
The spindle axis to guide the distance the post |
mm |
330 |
330 |
The distance of spindle end face to the worktable |
mm |
50-430 |
50-430 |
Rapid movement(X/Y/Z-axis) |
m/min |
6/5/4 |
6/5/4 |
The spindle axis to the vertical tolerance of worktable face |
mm |
≤0.02 |
≤0.02 |
Positioning accuracy |
mm |
0.02 |
0.02 |
Repeat positioning accuracy |
mm |
0.01 |
0.02 |
Machine dimension(L*W*H) |
mm |
2200x1650x2200 |
1200*1500*2100 |
Machine weight |
kg |
1800 |
1400 |
Standard Configuration
GSK 150im CNC system
Optional Configuration
HNC-18i/21 MD
GSK-983M CNC system
KND 100M CNC system
