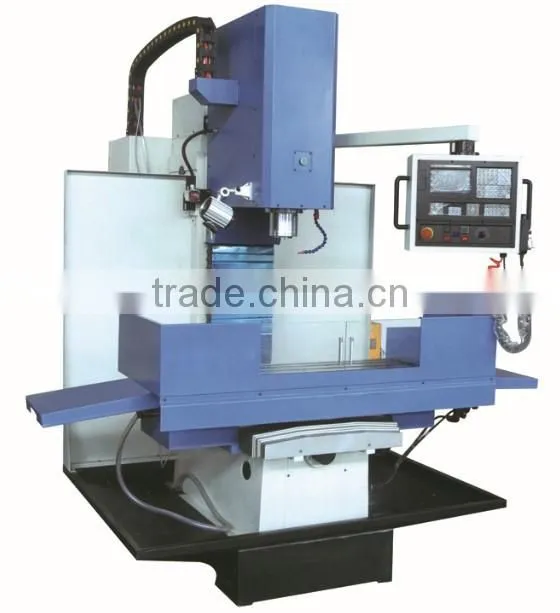

Bed-type Vertical CNC Miller
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
VMK-360
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Economic Type Vertical Bed-type CNC MillerUS$ 10,000 - 100,000MOQ: 1 Set -
CNC High Speed Dry Cutting Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
CNC High Efficiency Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
High Efficiency CNC Gear Shaving MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
CNC High Speed Gear Hobbing MachineUS$ 60,000 - 150,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
VMK-360
Type
Vertical
CNC or Not
CNC
Voltage
380V 50Hz
Power(W)
5.5KW
Dimension(L*W*H)
2220*1850*2350mm
Weight
2200kg
Certification
CE ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

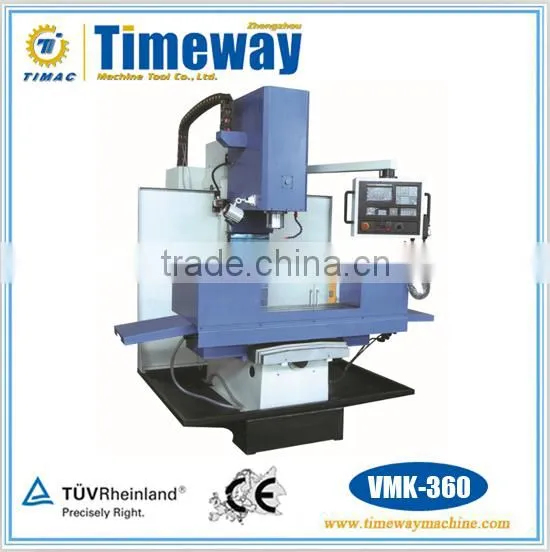

Economic Type CNC Vertical Bed-type Miller
VMK-360
Main Outlook
Specifications List
Technical Parameters
Specification |
Unit |
VMK-360 |
X-axis travel |
mm |
900 |
Y-axis travel |
mm |
350 |
Z-axis travel |
mm |
500 |
Distance from spindle nose to worktable surface |
mm |
100-600 |
Distance from spindle center to column surface |
mm |
460 |
X/Y-axis rapid feed speed |
mm/min |
5000-10000 |
Z-axis rapid feed speed |
mm/min |
4000-8000 |
Cutting feed speed |
mm/min |
1-2000 |
Worktable size |
mm |
1250*360 |
Max. load of worktable |
kg |
300 |
T-slot(Number/Width/Distance) |
mm |
3/18/80 |
Max. spindle speed |
rpm |
8000 |
Main motor power |
kw |
5.5 |
Spindle hole taper |
|
BT40 |
Machine weight |
kg |
2200 |
Machine dimension(L*W*H) |
mm |
2220x1850x2350 |
Standard Configuration
KND 1000M CNC system
Semi-protection
Optional Configuration
HNC-18i/21MD CNC system
GSK-983M CNC system
