Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Vertical Knee-type Turret CNC Milling Machine

Vertical Knee-type Turret CNC Milling Machine

Name: Vertical Knee-type Turret CNC Milling Machine
Brand: TIMAC
SKU: 140796222
Availability: InStock

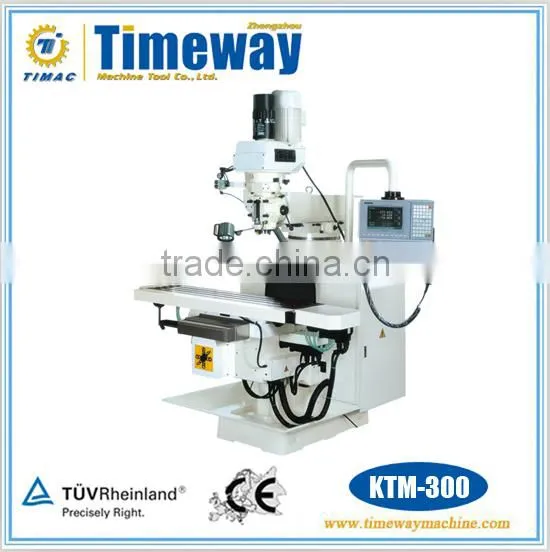

Vertical Knee-type Turret CNC Milling Machine thumbnail-1

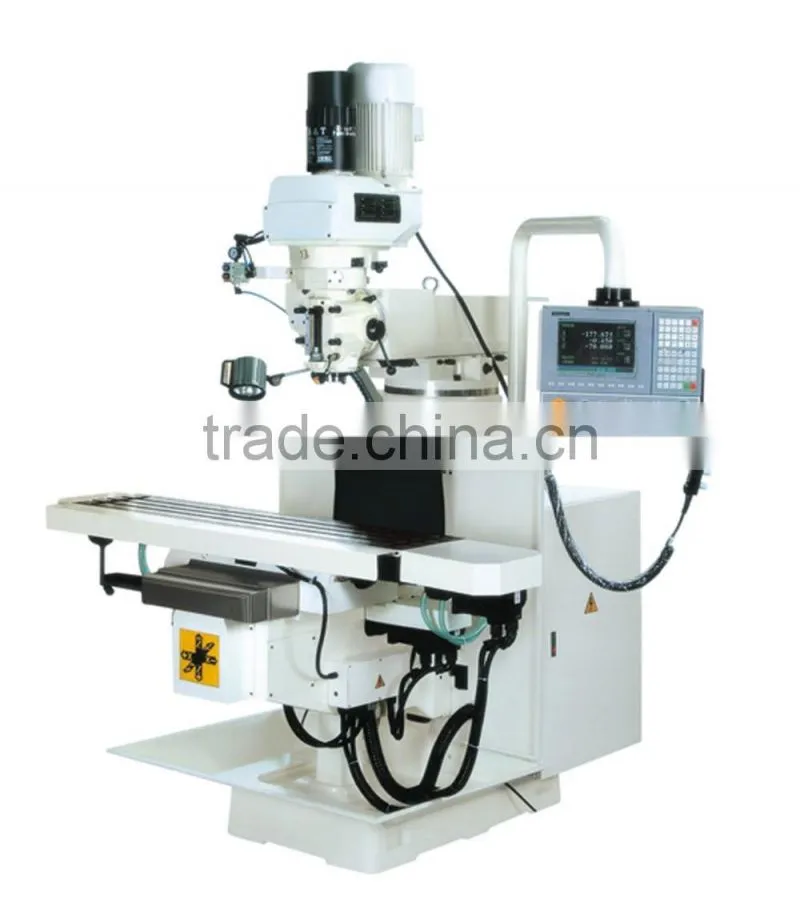

Vertical Knee-type Turret CNC Milling Machine photo-1

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

TIMAC

Model Number:

KTM-300

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name TIMAC

Model Number KTM-300

Type Vertical

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 3.75KW

Dimension(L*W*H) 1770*1580*2600mm

Weight 1720kg

Certification CE ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Vertical Knee-type Turret CNC Milling Machine

KTM-300

Main Outlook

Specifications List

Technical Parameters

Specification	KTM-300
Spindle taper	NT40
Diameter of quill	Φ105mm
Spindle travel	127mm
Spindle speed	100-1000/1000-4000r/min
Distance from spindle nose to table	80-460mm
Distance from spindle to column	140-640mm
Table size	1370x305mm
Max.weight of workpiece	400kg
T-slot size	3-16mm
Table travel (X/Y/Z)	700/380/380mm
Rapid movement X/Y/Z	5/5/1m/min
Motor power	3.75kw
X/Y/Z axis servo motor	1.6/1.6/2.4kw
X/Y/Z axis servo motor torque	10/10/15N.M
Air lock PSI	>6kgs
Single set accurate	X:0.06mm Y/Z:0.05mm
Single repeat set accurate	0.025mm
The opposite tolerance of axis	0.025mm
Overall diamensions WLH	1770x1580x2600mm
N.W/G.W(kgs)	1720kgs

Standard Configuration
KND 1000Mi-A CNC system

Optional Configuration
GSK 980M CNC system
FANUC 0i mate-MD

Performance and Feature
The spindle is Taiwan high speed precision milling head.
A dividing head, can realize four axis linkage.
X/Y/Z three axis ultra wide hard guide rail.
The steel is good, simple operation.
