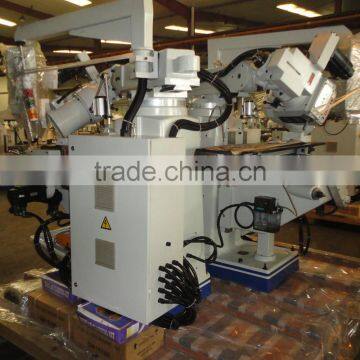

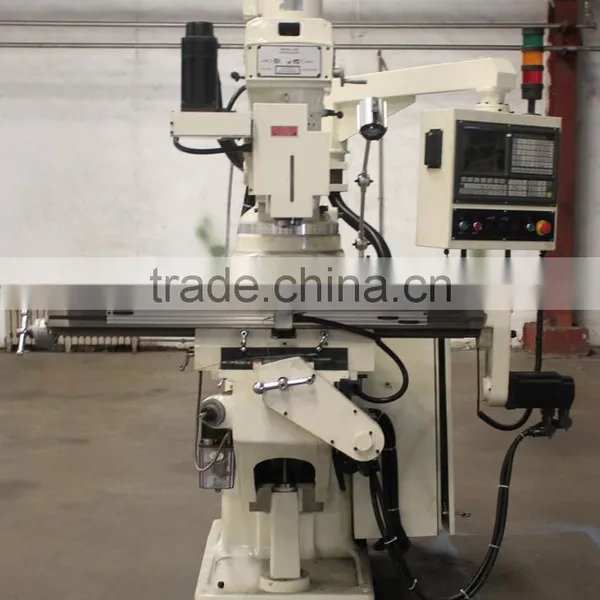

Economical Type CNC Milling Machine
Feature:
CNC Milling Machine
1. The spindle system features strong rigidity, it's suitable for rough machining and forcecutting; hence improve machining efficiency, features long travel, heavy loading. It'smainly used for boring and milling big surface and big case parts.
2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
3.Radial tool holder of facing head on the headstock head for radial machining.
Parameter:
Model | Unit | KTM-230A | KTM-230B | KTM-250 | KTM-250A | KTM-250B | KTM-250C | KTM-250D | KTM-300 | KTM-300A | ||||
Table size | mm | 230x1067 | 254x1270 | 305x1370 | ||||||||||
230x1246 | 254x1370 | 305x1500 | ||||||||||||
T slots | 3x16 | |||||||||||||
Table loading | kg | 200 | 280 | 350 | ||||||||||
X axis travel (Longitudinal ) | 550 | 750 | 800 | |||||||||||
740 | 850 | 900 | ||||||||||||
Y axis travel (cross) | 300 | 400 | 380 | 380 | 400 | 400 | 360 | 360 | ||||||
Z axis(Quill move)travel | 127 | |||||||||||||
X/Y/Z axis rapid feed | mm/min | 5000mm/min | ||||||||||||
X/Y/Z axis servo motor | Kw | 1 | ||||||||||||
Knee vertical travel | mm | 380 | 400 | 410 | ||||||||||
Ram travel | mm | 315 | 465 | 500 | ||||||||||
Distance from spindle table | mm | 0-380 | 0-400 | 0-410 | ||||||||||
Milling head | Spindle speed | Standard: 16steps | rpm | 50HZ:60-4500/60HZ:80-5440 | ||||||||||
Optional: Variable | 65-4200 | 60-3750 | ||||||||||||
Spindle taper | Standard:R8/Optional:ISO40 | ISO40 | ||||||||||||
Motor power | HP | 3HP | 5HP | |||||||||||
Head rotating | Swiveling | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | ||||
Tilting | 45°45° | 45° | 45° | 45° | 45° | - | 45° | 45° | - | |||||

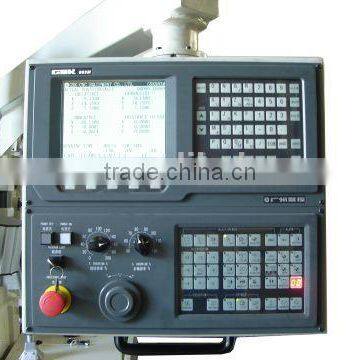

CNC | GSK/FANUC/SIEMENSE/MITSUBISH/FAGOR | |||||||||||||
Package size | cm | 165x190x200 | 190x200x223 | 200x200x225 | ||||||||||
G.W | kg | 1200 | 1500 | 1700 | 1900 | |||||||||
***Standard accessories:
Draw bar, Tool box and tools, Working lamp, Electro lubricating pump, Hung up control panel, Cooling system,
Oil collecting plate, Plastic splashing guard.
***Optional accessories:
Air draw bar, Machine vise, Universal clamping kits, Collets and chuck
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 1900*2000*2230MM N.W./G.W.: 1500/1700KG
Container loaded: 3 sets / 20'GP
