CNC High Efficient Horizontal Spline Shaft Milling Machine

Name: CNC High Efficient Horizontal Spline Shaft Milling Machine
Brand: TIMAC
SKU: 140796212
Availability: InStock

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

HMK6016

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number HMK6016

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) As actual situation

Dimension(L*W*H) 5100*2135*1990mm

Weight 13000kg

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

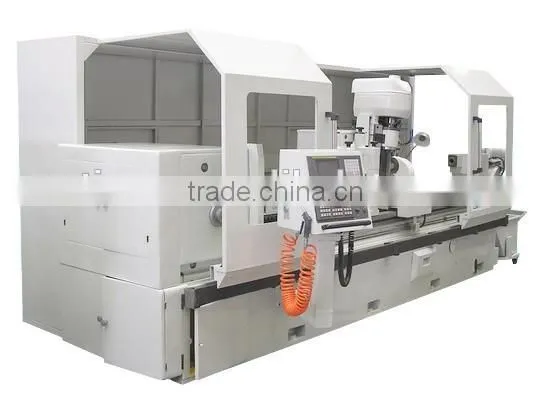

CNC High Efficient Horizontal Spline Shaft Milling Machine

HMK6012 HMK6012/1 HMK6016

Main Outlook

Product Description

Performance and Feature

The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.
All machanical system and parts with high rigidity compact constructions and fine protection functions,the hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min, the maximum speed of workpiece is 100 rotor, and the cutting efficiency is rather high.
In addition,the dry cutting can be come true in the condition of wind cooling.

Specifications List

Technical Parameter

Specification	HMK6012	HMK6012/1	HMK6016
Max.diameter to be machined	Φ125mm	Φ125mm	Φ160mm
Max.module to be machined	4mm	4mm	5mm
Max.length of the workpiece	750mm	1500mm	3000mm
Max.length of the machined	600mm	1350mm	2750mm
Range of teeth to be machined	4~60(teeth)	4~60(teeth)	4~60(teeth)
Center high of machine	370mm	370mm	370mm
Max.size of milling cutter to be mounted	Φ130x200mm	Φ130x200mm	Φ130x200mm
Max.travel of tailstock sleeve	50mm	50mm	50mm
Adjusting angle of milling head	±15(degree)	±15(degree)	±15(degree)
No.of axes to be countrolled	2 axis	2 axis	2 axis
No.of axes to be followed	2 axis	2 axis	2 axis
Gears to be machined	straight teeth	straight teeth	straight teeth
Oveall dimensions (LxWxH)	2530x1835x2100mm	3175x1835x2100mm	5100x2135x1990mm
Weight of the machine	8500kg	9000kg	13000kg
