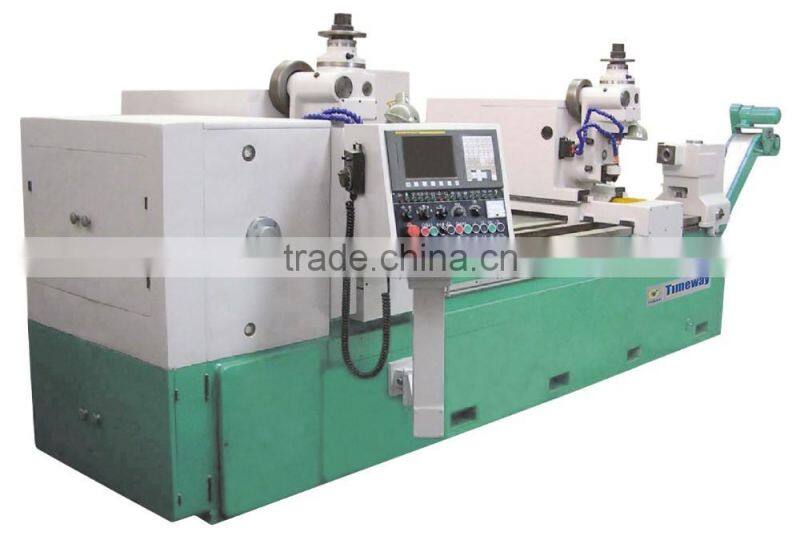

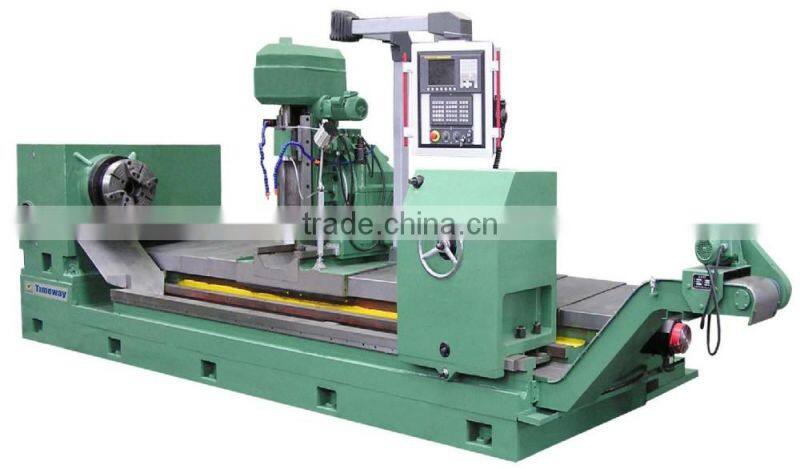

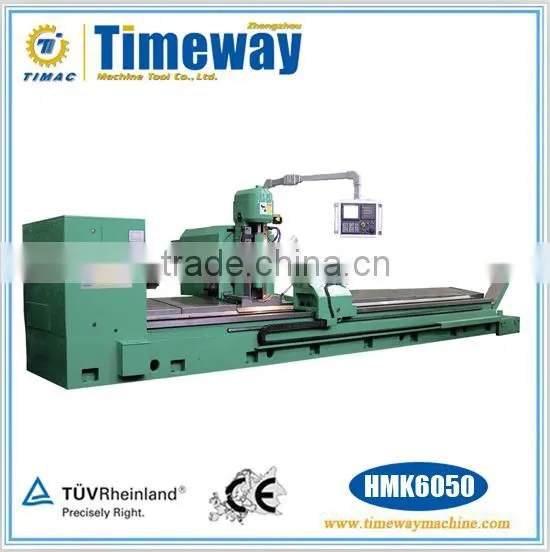

CNC Horizontal Spline Shaft Hobbing Machine (Spline Shaft Miller)

Name: CNC Horizontal Spline Shaft Hobbing Machine (Spline Shaft Miller)
Brand: TIMAC
SKU: 140796210
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 50,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

HMK6020*1500

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number HMK6020*1500

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) As actual situation

Dimension(L*W*H) 3250*2470*2450mm

Weight 12000kg

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Spline Shaft Hobbing Machine (Spline Shaft Miller)

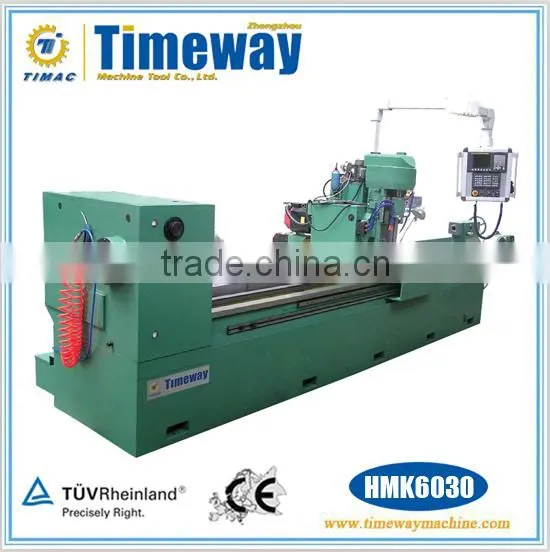

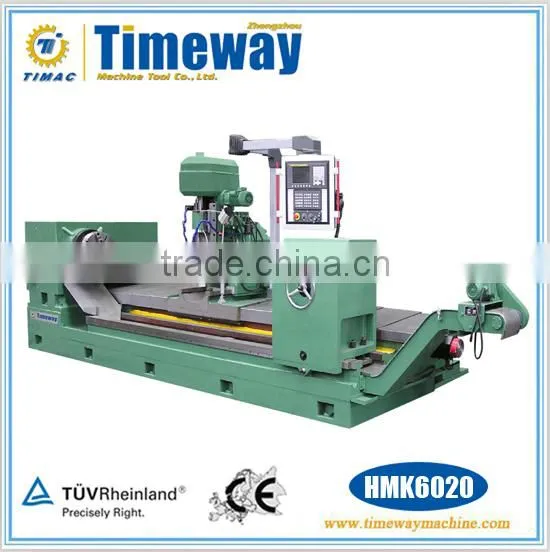

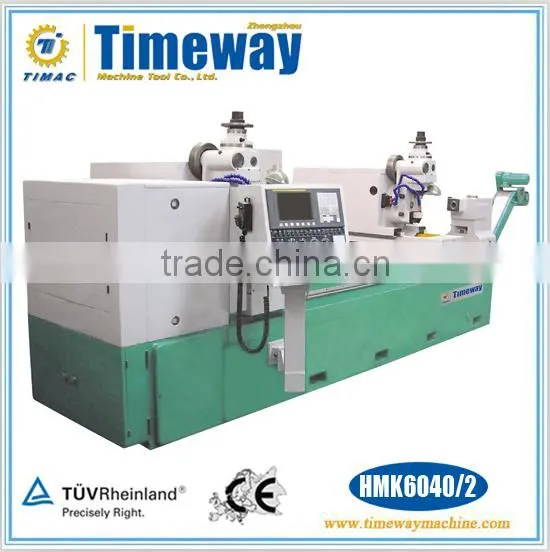

HMK6020 HMK6030 HMK6040

Main Outlook

Product Description

Performance and Feature

The machine is used for cutting straight-tooth and helicaitooth spline shaft, and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method. It can also hob straight-tooth and helical-tooth connecting shaft gear, and cutting taper spline, cone bottom spline as well as stepped gear.
The machine controls index by using electrical gear cabinet, the action of adjustment drive and shift of hob is finished automatically by CNC. And the precision is very high, it has wider range of speed of hobbing cutter. The hobbing speed is adjustable from 200r/min to 1200r/min steplessly. The maximum speed of workpiece is 200 rotors, and the cutting efficiency is rather high, as well as the cry cutting can be come ture in the condition of wind colling.
The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.
Two different specification hobbing cutters can be mounted on the machine at the same time. It can cut different specification spline shaft and gear by installing the workpiece only once.
It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries. It can adopt six axis CNC.

Specifications List

Technical Parameter

Specifications	HMK6020	HMK6030	HMK6040
Max.diameter to be machined	Φ200mm	Φ300mm	Φ400mm
Max.module to be machined	5mm	10mm	12mm
Max.length of the workpiece	750~1500mm	3000~6000mm	3000~6000mm
Max.length of the machined	650~1350mm	2500~5500mm	2500~5500mm
Range of teeth to be machined	4~200(teeth)	Arbitraty	Arbitraty
Center high of machine	370mm	470mm	470mm
Max.size of milling cutter to be mounted	Φ130x200mm	Φ180x230mm	Φ200x240mm
Max.travel of tailstock sleeve	70mm	70mm	70mm
Adjusting angle of milling head	±45(degree)	±45(degree)	±45(degree)
No.of axes to be countrolled	6 axis	4~6 axis	4~6 axis
No.of axes to be followed	4 axis	4 axis	4 axis
Gears to be machined	straight teeth/helical teeth	straight teeth/helical teeth	straight teeth/helical teeth
Oveall dimensions (LxWxH)	2500~3250x2470x2450mm	6600~8800x2220	6600~8800x2200x2220mm
Weight of the machine	9000~12000kg	16000~23000kg	16500~23500kg
