Large Size CNC High Efficient Universal Horizontal Spline Shaft Miller

Name: Large Size CNC High Efficient Universal Horizontal Spline Shaft Miller
Brand: TIMAC
SKU: 140796206
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 50,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

HMK6050*6000

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number HMK6050*6000

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) As actual situation

Dimension(L*W*H) 8300*2465*2354mm

Weight 25500kg

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

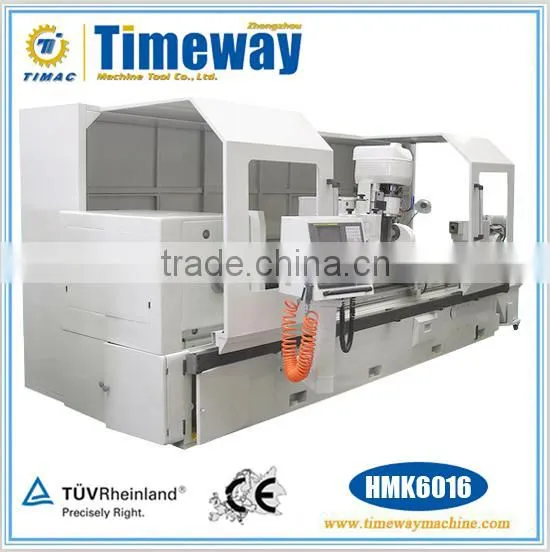

Large Size CNC High Efficient Horizontal Spline Shaft Miller

HMK6050 HMK6063 HMK62120

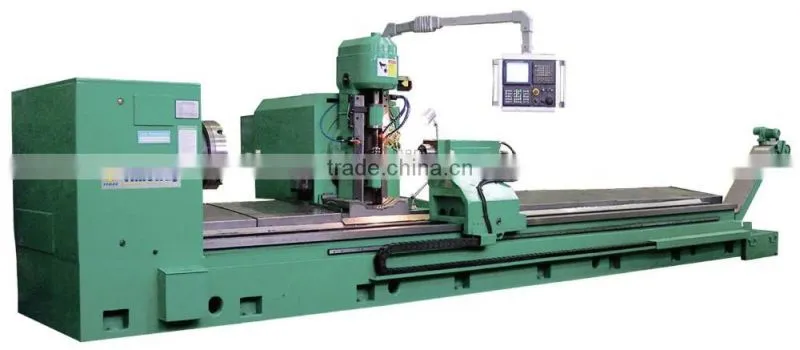

Main Outlook

Product Description

Performance and Feature

The machine is used for cutting straight-tooth and helicaitooth spline shaft, and straight-tooth, helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method. It can also hob straight-tooth and helical-tooth connecting shaft gear, and cutting taper spline, cone bottom spline as well as stepped gear.
The machine controls index by using electrical gear cabinet, the action of adjustment drive and shift of hob is finished automatically by CNC. As well as the cutting efficiency is rather high, the cry cutting can be come ture in the condition of wind colling.
The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.
Two different specification hobbing cutters can be mounted on the machine at the same time. It can cut different specification spline shaft and gear by installing the workpiece only once.
It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.

Specifications List

Technical Parameter

Specifications	HMK6050	HMK6063	HMK62120
Max.diameter to be machined	Φ500mm	Φ630mm	Φ1200mm
Max.module to be machined	14mm	16mm	Hob milling 30mm
Max.length of the workpiece	3000~6000mm	3000~6000mm	3000~6000mm
Max.length of the machined	2500~5500mm	2500~5500mm	2500~5500mm
Range of teeth to be machined	Arbitraty	Arbitraty	Arbitraty
Center high of machine	600mm	600mm	1050mm
Max.size of milling cutter to be mounted	Φ220x250mm	Φ280x300mm	Φ360x400mm
Max.travel of tailstock sleeve	100mm	100mm	100mm
Adjusting angle of milling head	±45(degree)	±45(degree)	±45(degree)
No.of axes to be countrolled	4~6 axis	6 axis	6 axis
No.of axes to be followed	4 axis	4 axis	4 axis
Gears to be machined	straight teeth/helical teeth	straight teeth/helical teeth	straight teeth/helical teeth
Oveall dimensions (LxWxH)	8300x2465x2354	8300x2500x2400	8300x4200x3100
Weight of the machine	18000~25500kg	18500~26000kg	60000kg
