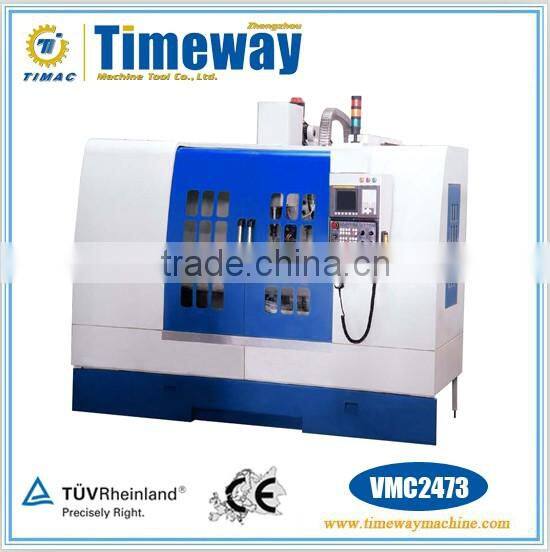

Help CenterBed Type Vertical CNC Milling Machine KBM- Series
Related Products
-
Large-Scale and Heavy-Duty CNC Gear Hobbing MachineUS$ 200,000 - 300,000MOQ: 1 Set -
CNC Gear Rolling Machine (CNC Gear Burnishing Machine)US$ 100,000 - 120,000MOQ: 1 Set
-
Ten-axis High Precision CNC Universal Gear Grinding MachineUS$ 300,000 - 400,000MOQ: 1 Set
-
High Precision and High-Efficiency CNC Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Large Module and High Efficiency CNC Gear Hobbing MachineUS$ 50,000 - 230,000MOQ: 1 Set
Vertical CNC Machining Center
Features:
1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
2. The milling machine can be used for drilling, boring, lathing and milling.
3. The milling machine adopts rectangular guide ways, features strong rigidity and high accuracy.
4. Radial tool holder of facing head on the headstock head for radial machining.
5. Optional digital readout device, reading accuracy 0.01mm, positioning accuracy 0.05mm.
Standard accessories:
Full closed safety cover, Vertical arm type ATC,
Cutting fluid circulation system, Auto. Lubrication system, Spindle air flow,
Working light, Level adjusting screw and block, Clamping apparatus.
Optional accessories:
The forth axis revolving table, Cutter length measuring unit, Edge finder, Shank
Specification |
KBM-1354B |
KBM-1654 |
KBM-2063 |
KBM-2473 |
|
Table size(LxW/mm) |
1370x330 |
1370x406 |
1600x510 |
1854x610 |
|
Table loading capacity(kg) |
400 |
800 |
1200 |
1500 |
|
T-slots(W/mmxNO) |
16x3 |
16x5 |
18x5 |
18x5 |
|
X-axis(mm) |
800 |
1000 |
1200 |
1500 |
|
Y-axis(mm) |
450 |
480 |
700 |
700 |
|
Z-axis(mm) |
480 |
600 |
600 |
700 |
|
Max.move speed(mm/min) |
8000 |
8000 |
10000 |
10000 |
|
Max.feed speed(mm/min) |
3000 |
3000 |
4000 |
4000 |
|
Spindle speed(rpm/min) |
RANGE:40~6000 |
||||
Spindle nose |
BT40 |
BT40 |
BT40/ BT50 |
BT40 /BT50 |
|
Spindle motor(kw) |
5.5 |
7.5 |
7.5 |
7.5 |
|
Servo motor(kw) |
X/Y:1.0,Z:1.5 |
X/Y/Z:1.5 |
X/Y/Z:2.0 |
X/Y/Z:2.0 |
|
Spindle quill diameter(mm) |
120 |
150 |
150/160 |
150/160 |
|
Spindle to column surface(mm) |
450 |
520 |
640 |
695 |
|
X-axis(mm) |
32x5p4Double nuts |
40x10p4Double nuts |
|||
Y-axis(mm) |
32/x5p4Double nuts |
40x5p4Double nuts |
40x10p4Double nuts |
||
Z-axis(mm) |
32x5p4Double nuts |
40x5p4Double nuts |
40x10p4Double nuts |
||
Positioning accuracy |
±0.015mm |
±0.015mm |
±0.015mm |
±0.015mm |
|
Repeatability |
±0.008mm |
±0.008mm |
±0.008mm |
±0.008mm |
|
Machine weight(kg) |
2600 |
3800 |
5000 |
6000 |
|
***With full-closed safety cover & 12tools ATC
***With Semi-closed table shield & 12tools ATC
***With Semi-closed table shield
***Wooden plate or Plywood case as require
