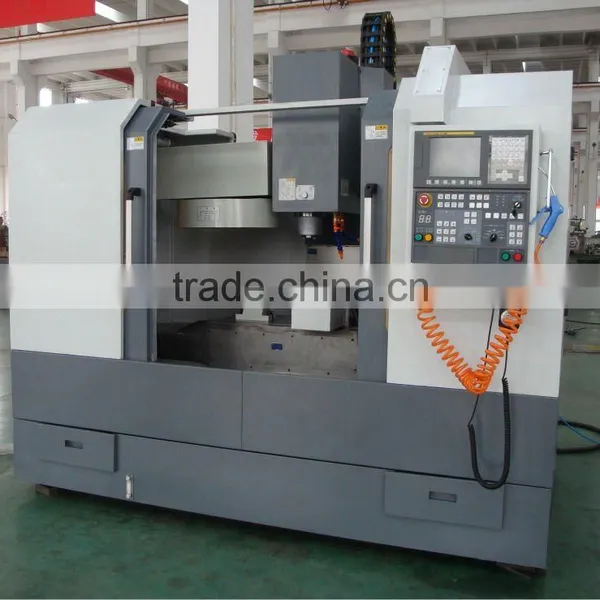

Vertical Machining Center VMC846, VMC1050

Specifications

Vertical Machining Center

VMC846: Table size-800x460mm, Travel-800x460x500mm;

VMC1050 : Table size-1100x510mm, Travel-1000x510x510mm;

Features:
1. The machine adopts Meehanite cast iron, and the base use wide rectangular guideways, which have high rigidity.
2. X, Y, Z axes are all wide box ways, which through the medium frequency quenching and precision grinding, ensure the machine's rigidity.
3. Taiwan made spindle unit (8000rpm) with high speed, high precision.
4. Taiwan made 16 tools armless tool magazine.
5. Cooling system adopts large fluid and high pressure coolant pump, to make sure the enough cooling under the high speed processing condition;
6. The machine adopts full close type protection guard; make the clean circumstance and safety of the operator.

Standard items:

FANUC 0i mate MD controller; FANUC servo main motor; FANUC servo feed motors on three axes; Taiwan 16 stations armless type tool magazine; RS232 I/O interface; Movable electronic handwheel (MPG); Spindle blowing chips system; Work light; Tricolor alarm light;

Optional items:

The 4^th axis; Taiwan 24 stations arm type tool magazine; Automatic chip conveyor.
