Specifications

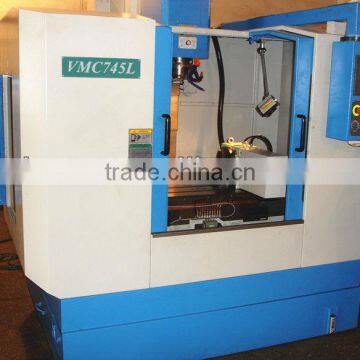

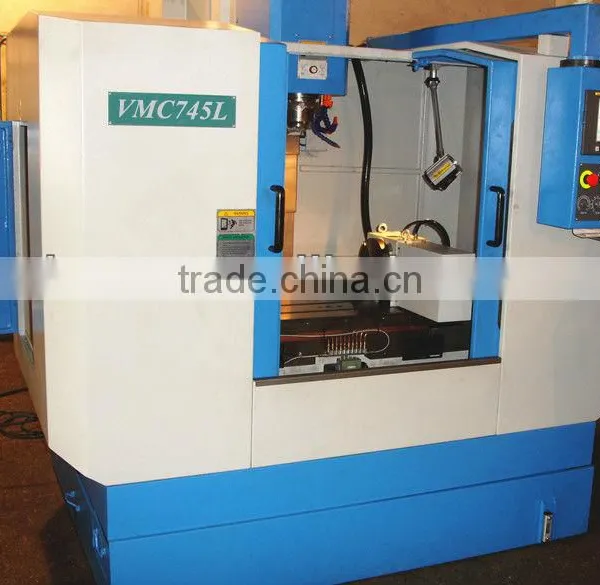

1. Vertical Machining Center VMC745L;2. FANUC 0i mate MD CNC system;
3. X/Y/Z axis travel: 600mm/450mm/500mm.
Standard accessories:
FANUC 0i mate MD CNC system; 3-axis linear guide-ways; High precision and speed spindle unit; Armless type magazine with 16 tools capacity; Separated type electronic hand wheel(MPG); RS232 interface; Oil and water separated design; Interval auto-lubricating; Full splash guard; Tricolor alarm light; Operational manuals(English edition).
Model | Unit | VMC745L |
X-axis travel | mm | 600 |
Y-axis travel | mm | 450 |
Z-axis travel | mm | 500 |
Spindle nose to table | mm | 130-630 |
Spindle center to column guideway face | mm | 485 |
Rapid feeding of X,Y axis | mm/min | 24000 |
Rapid feeding of Z axis | mm/min | 18000 |
Feeding speed | mm/min | 1-5000 |
Table size | mm | 800x450 |
Max. loading capacity of table | kg | 550 |
T-slot NO./width/distance of table |
| 3/18/160 |
Spindle max. speed | r/min | 8000 |
Main motor rated power | kw | 5.5/7.5 |
Spindle nose taper |
| BT40 |
Magazine capacity | pcs | 16 |
Magazine style |
| Umbrella |
Max. diameter of tool | mm | 80 |
Max. length of tool | mm | 300 |
Max. weight of tool | kg | 6 |
Pneumatic press | mpa | 0.6 |
N.W | kg | 3500 |
Overall dimension (LxWxH) | mm | 2500x2000x2450 |
