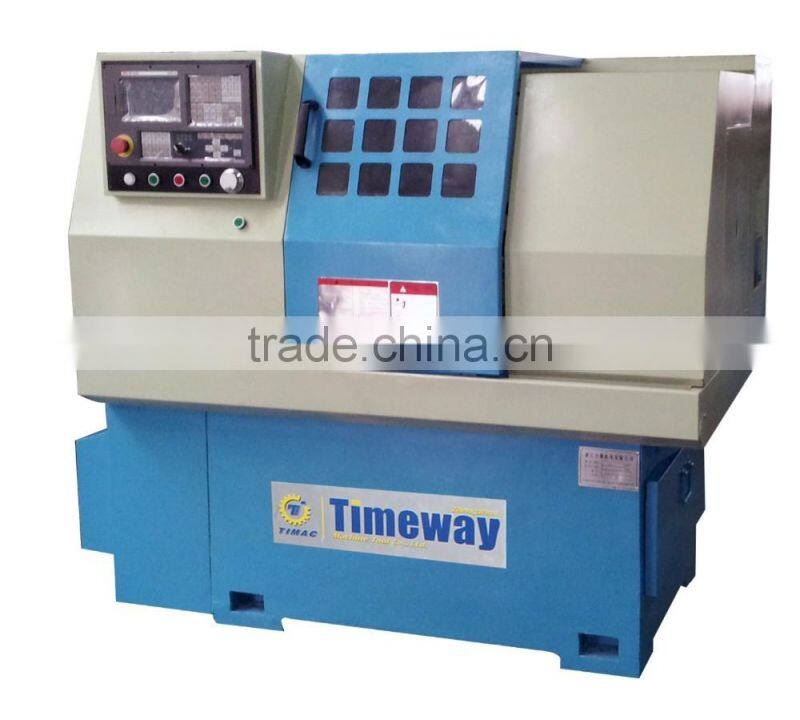

Help CenterSmall-type High Precision and High Quality CNC Horizontal Instrument Lathe Machine
Related Products
-
Flat Bed CNC Lathe CK-400NUS$ 10,988 - 22,100MOQ: 1 Set -
Flat Bed CNC Lathe AK-520US$ 10,988 - 19,259MOQ: 1 Set
-
Cutting 20" Diameter Horizontal Flat-bed CNC Lathe MachineUS$ 5,000 - 25,000MOQ: 1 Set
-
SIEMENS Big Spindle Bore Flat Bed CNC Lathe MachineNegotiableMOQ: 1 Set
-
Flat Bed CNC Lathe CK6140BUS$ 10,988 - 22,100MOQ: 1 Set

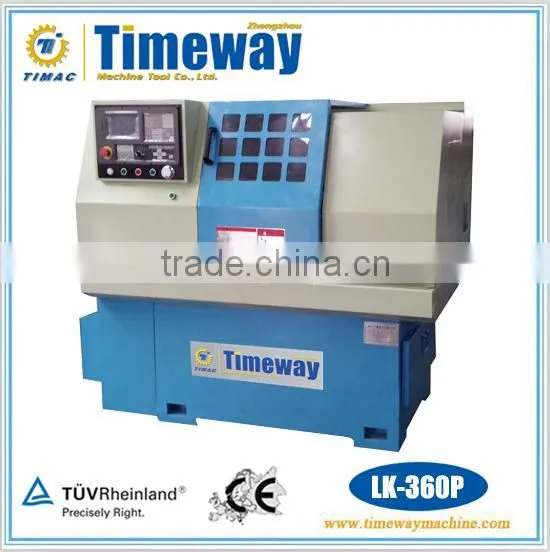

Small High Precision and High Quality CNC Horizontal Instrument Lathe Machine
LK-360P
Main Functions and Features
1. The lathe is a high precision CNC lathe, the machine uses the whole bed(bed base integrated design, to avoid the cumulative error generated when the assembly).
2. The main drive stepless frequency control, enabling constant speed cutting function.
3. The machine moves with high precision linear motion guide; movement without noise, to ensure that the workpiece has a better surface roughness(non-ferrous metals up to 0.4) and faster processing speed.
4. All castings using high-grade resin sand molding casting, and after artificial aging treatment; rails using telescopic protection, improved waterproof, anti-litter capacity. machine guide, carriage, screw adopt automatic periodic lubrication.
5. The machine uses wide range; applicable to instruments, meters, light, standrad parts, autoparts industry and processing of plumbing parts, especially for non-ferrous metals, stainless steel and many other high-speed precision machining of small parts.
6. Standard configuration of the machine is Beijing KND control system, manual clamping chuck, in order to meet customer needs can choose other control system and clamping chuck(pneumatic or hydraulic).
Technical Parameters
| Specifications | Units | LK-360P |
| Working range | ||
| Max. swing dia. over bed | mm | Φ360 |
| Max. swing dia. over skateboard | mm | Φ160 |
| Max. X-axis travel | mm | 280 |
| Max. Z-axis travel | mm | 450 |
| Spindle | ||
| Dia. of spindle bore | mm | Φ48 |
| Taper of spindle bore | 40° | |
| Range of spindle speeds | rpm | 60-3000 |
| Max. range of collet chuck | mm | Φ30 |
| Tool | ||
| Tool cross section | mm | 20*20 |
| Station No. of gang tool | 4-6 | |
| Motor power | ||
| Main motor power | kw | 4 |
| X-axis servo/stepping motor power | kw | 1.2(4N.m) |
| Z-axis servo/stepping motor power | kw | 1.2(4N.m) |
| Coolant pump motor power | DB-12A | |
| Feed | ||
| Min. longitudinal feed set unit | mm | 0.001 |
| Min. longitudinal feed stroke | mm | 0.001 |
| Min. transverse feed set unit | mm | 0.001 |
| Min. transverse feed stroke | mm | 0.0005 |
| Longitudinal rapid feed | mm/min | 8000 |
| Transverse rapid feed | mm/min | 10000 |
| Longitudinal feed range | mm/min | 2-2000 |
| Transverse feed range | mm/min | 2-1000 |
| Accuracy | ||
| Roundness | mm | 0.004 |
| Cylindricity | mm | 0.005/100 |
| Smooth and clean | um | 0.8-0.16 |
| Others | ||
| Gross weight | kg | 1280 |
| Net weight | kg | 1200 |
| Machine dimensions(L*W*H) | mm | 1550*960*1460 |
Note: X and Z axis motors can choose stepping motors with power 1.2kw(4N.m).
Standard Accessories Optional Accessories
Three-jaw chuck FANUC CNC system
Accessprial tools SIEMENS CNC system
System manual Hydraulic chuck
User manual Pneumatic chuck
