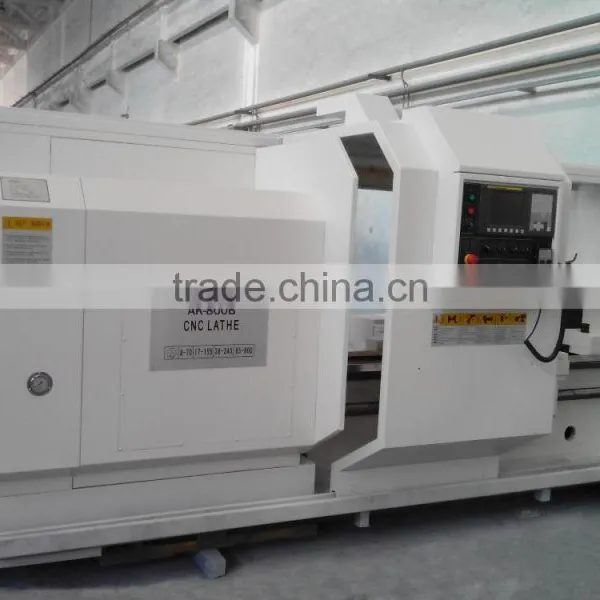

AK-800B Horizontal CNC Lathe Machine

Name: AK-800B Horizontal CNC Lathe Machine
Brand: TIMAC
SKU: 140795930
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 40,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 800mm

Place of Origin Henan, China

Brand Name TIMAC

Model Number AK-800B

Voltage As request

Power(W) 15kw

Dimension(L*W*H) As length

Weight 3000kg

Certification ISO, CE Standard

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Lathe

AK-800B AK-800BJ AK-1000B AK-1000BJ

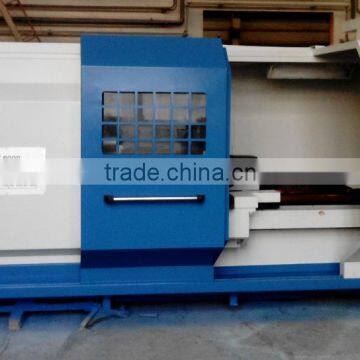

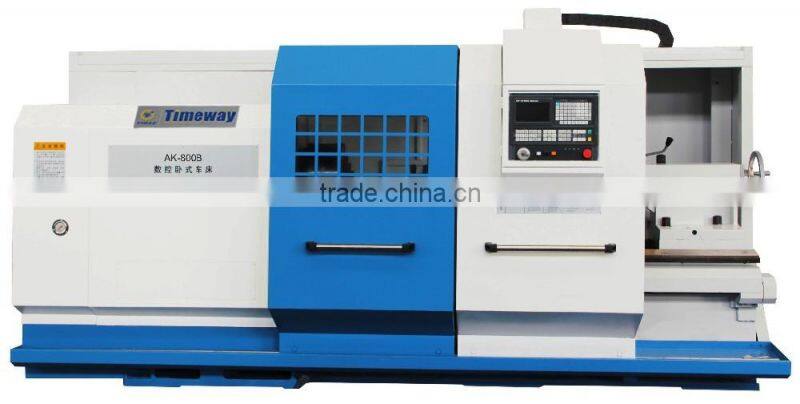

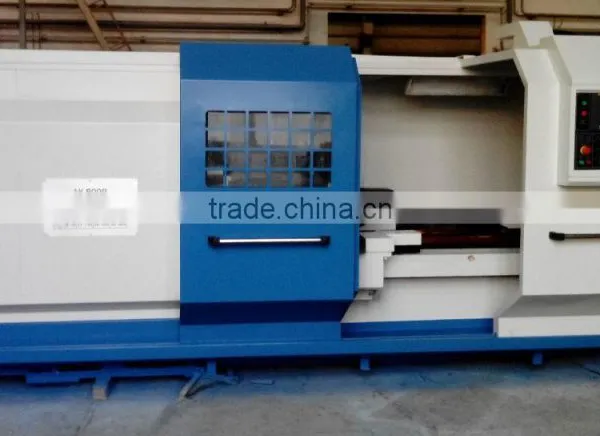

Main Outlook

Product Description

Features:

The lathe is economical and practical CNC lathe. With optimized structures, unfailing performance, high quality, simple programming, and easy handling.
They are suitable for turning of complicated shaft, sleeve, and disk type workpieces such as turning of internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And it is especially fit for turning of diversified workpieces on small and medium batches.
It is of high versatility, high efficiency, low inferiority and good comformability. So to be widely used in various trades, such as automobile industry,petroleum industry, military industry, and so on.
It accomplish stepless spindle speed-changing by means of main motor frequency conversion and 4-shift hydraulic gear change.

Technical Parameter:

Specification	Unit	AK-800B		AK-1000B
		AK-800BJ		AK-1000BJ
Swing over bed	mm	800		1000
Swing over carriage	mm	480		680
Maximum length of workpiece	mm	1000/1500/2000/3000/4000/5000
Maximum turning length	mm	850/1350/1850/2850/3850/4850
Span of guideway	mm	600
Spindle nose		C11(C15)
Chuck(Manual)	mm	400
Spindle bore	mm	100(140)
Taper hole of spindle		1:20/120(1:20/150)
Spindle speed and range	rpm	AK-800B,AK-1000B: auto 4 gear steps, stepless speed change in step. 8-800
	rpm	AK-800BJ,AK-1000BJ: 18 gear speed, 6-750
Tool-post working position		Vertical V4(Standard)
Turret specification size	mm	240*240
Max.allowance cutting power	N	14700
Max.allowance longitudinal feed force	N	5880
Max.allowance transverse feed force	N	4078
Rapid speeds of X-/Z-axis	m/min	3-4/6-8
Section of tool shank	mm	32
Diameter of tailstock quill	mm	100
Travel of tailstock quill	mm	250(Standard)
Taper hole of tailstock quill		Morse 6

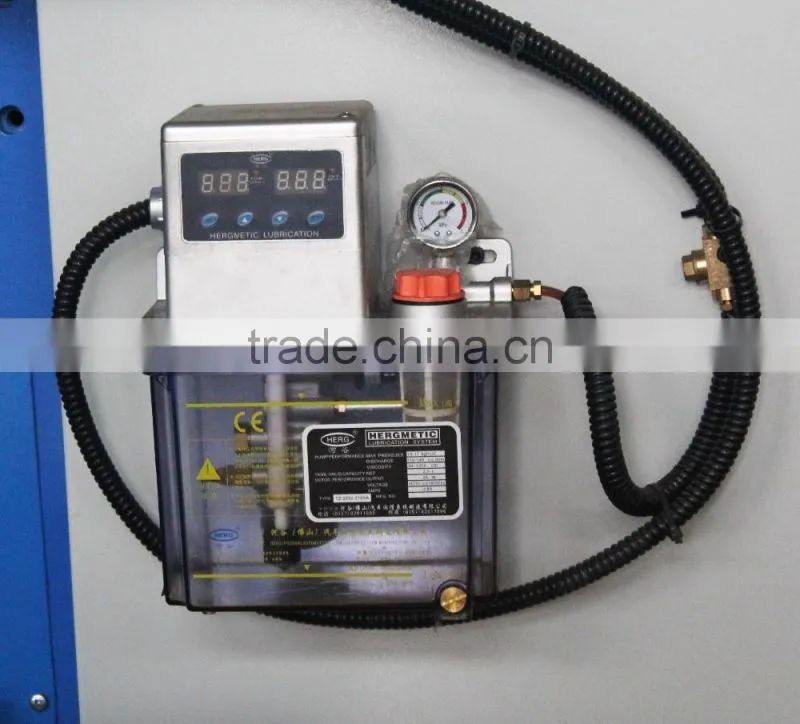

Automatic lubrication installation		AM0-II-150S
Gear wheel pump type		CB-B6
Gear wheel pump rated pressure	Mpa	2.54(25kgf)
Gear wheel pump flow	L/min	6
Gear wheel pump electric machine type		AO2-7124
Oil cylinder working pressure	Mpa	0.98-1.176(10-12kgf)
Cooling pump type		YWP18GA
Cooling pump the motor power	W	120	120
Cooling pump flow	L/min	45	45
Main motor(frequency conversion)type		CTB4015BJB50-6L3	CTB4015BJB50-6L3
Main motor power	kw	15	15
Main motor speed	r/min	970	970
Turret motor power	w	180(4-position)	180(4-position)
Turret motor speed	r/min	1400	1400
