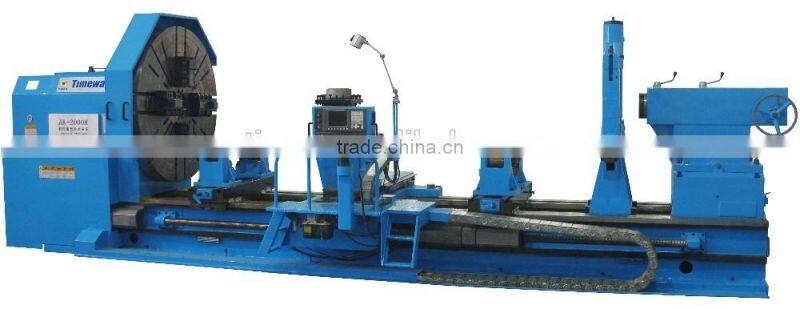

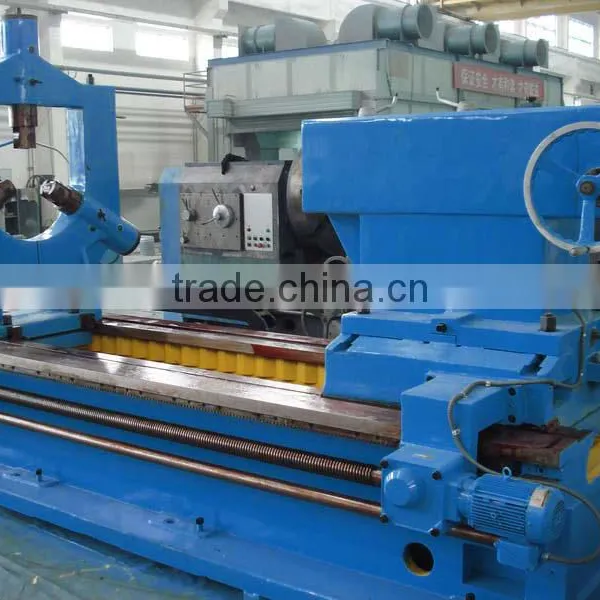

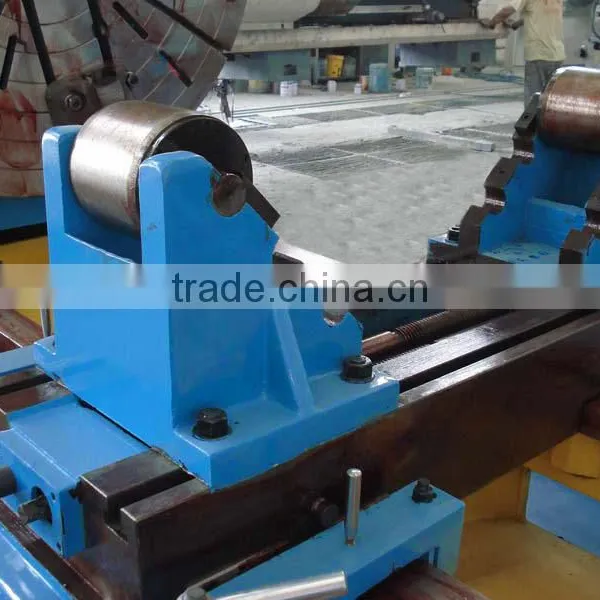

Heavy-Duty CNC Horizontal Lathe

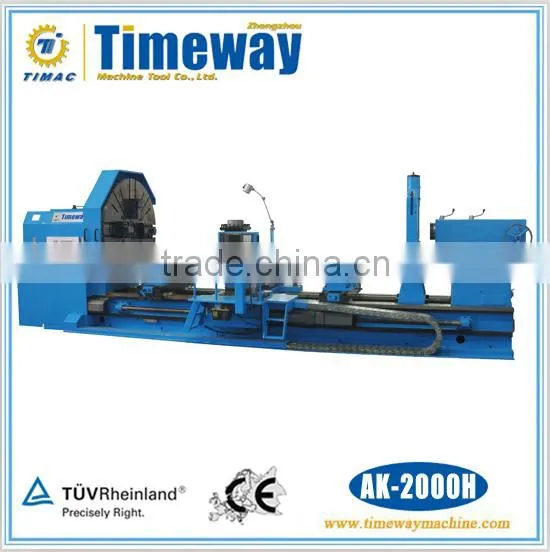

AK-1250H AK-1250HJ AK-1600H AK-1600HJ AK-2000H AK-2000HJ
Features:
1. This series heavy-duty CNC lathe is developed and made according to market demand which has semi-closed loop control function.
2. This series machine can process a variety of shaft, disk type parts, it can also turn many kinds of thread, the circular arc, and the rotary cone inner and outer surfaces, it meets the high-speed cutting of ferrous metals and non-ferrous metal speed requirements.
3. These lathes are suitable for ship, locomotive, aerospace, military industry, metallurgy and other industries when do rotating parts for efficient, multitudinous, high-precision processing use.
4. The rigidity of the bed, spindle, tailstock and other key components are matched reasonable, it improves the rigidity of the machine greatly ans ensure the stability of heavy-cutting.
5. AK...H series: the spindle speed change use hydraulic 4-step, in step is stepless.
6. AH...HJ series spindle speed change is by hand.
7. Feed system uses AC servo motor.
8. The machine makes program easily, and operate simply, they are large scale mechanical processing equipment.
Technical Parameter:
| Specification | Unit | AK-1250H | AK-1600H | AK-2000H | |
| AK-1250HJ | AK-1600HJ | AK-2000HJ | |||
| * Capacity | Centre height | mm | 625 | 800 | 1000 |
| Max.Swing dia.over bed | mm | 1250 | 1600 | 2000 | |
| Max.Swing dia.over slide | mm | 900 | 1250 | 1650 | |
| Max.weight of workpiece | Kg | 160000 | |||
| piece length | mm | 3000/5000/6000/8000/10000/12000 | |||
| Max.cutting length | mm | 2800/4800/5800/7800/9800/11800 | |||
| Form of bed guide way | double rectangles | ||||
| *Spindle | Spindle nose | A2-15 (1:4; 285.775mm) | |||
| Diameter of chuck/form of chuck | 4-JAW CHUCK 1250 | 4-JAW CHUCK 1400 | 4-JAW CHUCK 1600 | ||
| Spindle bore | mm | 100 | |||
| Inner taper of spindle nose | mm | metic system 140 | |||
| Spindle speed and range | r.p.m | AK...H series: auto 4 gear steps,stepless speed change in the step.3 ~ 320 | |||
| AK...HJ series: foreward:3.15 ~ 315(manual 21 gear speed) reversal: 3.5 ~ 291(manual 12 gear speed) | |||||
| Rapid speeds of x-/z-axis | mm/min | 4000/6000 | 4000/6000 | 4000/6000 | |
| Drive mechanism of z-axis | screw or pinion and rack | ||||
| *Carriage | Tool-post working position | Vertical 4-position | |||
| Size of tool post | mm | 380×380 | 380×380 | 380×380 | |
| Max.travel | mm | 800 | |||
| Size of tool shank | mm | 50 | |||
| *Tailstock | Diameter of Tailstock quill | mm | 260 | ||
| Travel of tailstock quill | mm | 300 | |||
| Taper Hole of tailstock quill | Morse | metic system 80 | |||
| *CNC system | Alternatives | FANUC/SIEMENS | |||
| *Other | Speed | m/min | 3.2 | 3.2 | 3.2 |
| Workpiece accuracy | IT7 | IT7 | IT7 | ||
| Surface roughness | µm | Ra2.5 ~ Ra3.2 | Ra2.5 ~ Ra3.2 | Ra2.5 ~ Ra3.2 | |
| Main power | KW | 30 | 30 | 30 | |
| Length | mm | 6120/8120/9120/11120/13120/15120 | |||
| Width | mm | 2360 | 2360 | 2360 | |
| Height | mm | 2120/2670/2870 | 2120/2670/2870 | 2120/2670/2870 | |
| Weight | Kg | 19700(5m) | 23200(5m) | 27200(5m) | |
Standard Configuration:
1.CNC controller: FANUC 0i TD
2.X/Z-axis feeding driver servo motor is FANUC
3. Inverter spindle speed with 4 setps and stepless within per step;
4. Spindle speed grade set up by M code in PLC, auto. stepless speed within per step controlled by S code, it can realize stepless speed and constant - linear turning speed.
5. The bed is integral box structure, adopts high performance cast iron (HT300) processed by second aging; Guideway surface with medium frequency quencying and precision ground by imported guideway grinder.
6. 4- jaw chuck: Jianhua ()
7. 4-station electric tool post: Yasun ()
8. X/Y-axis ball screw pair: Hanjiang (/)
9. Spindle bearing: HRB ()
10.Electric moving tailstock
11.Auto. lubrication: China-Japan joint, Liubian ()
12.Dynamic precision test and offset: RENISHAW laser detector, UK
13.Voltage: 380V, 3-phase, 50HZ
