Condition
New
Type
Horizontal
CNC or Not
CNC
Brand Name
TIMAC
Model Number
CK6140B, CK6150B
Specifications
1. CNC lathe machine;2. Max. dia: 400mm, 500mm
3. Spindle bore: 77mm
4. Length: 0.75, 1, 1.5, 2M
5. CK6140B, CK6150B

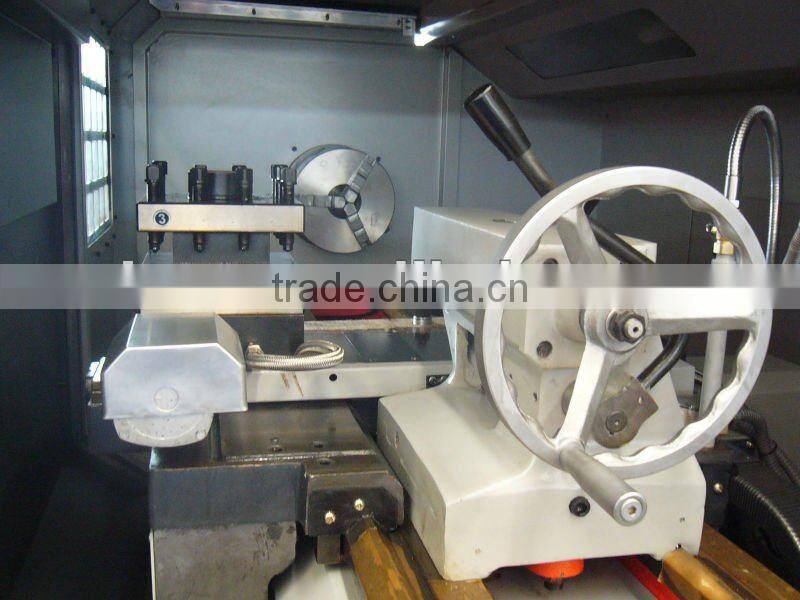

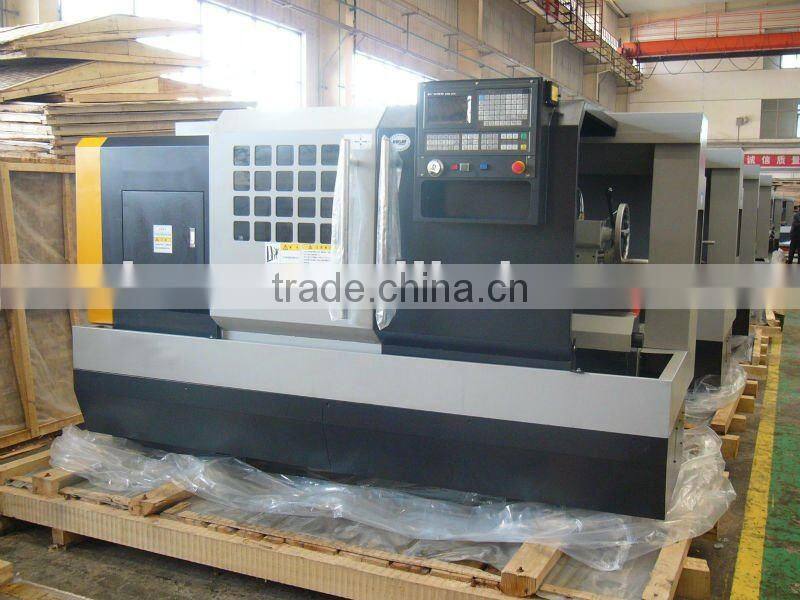

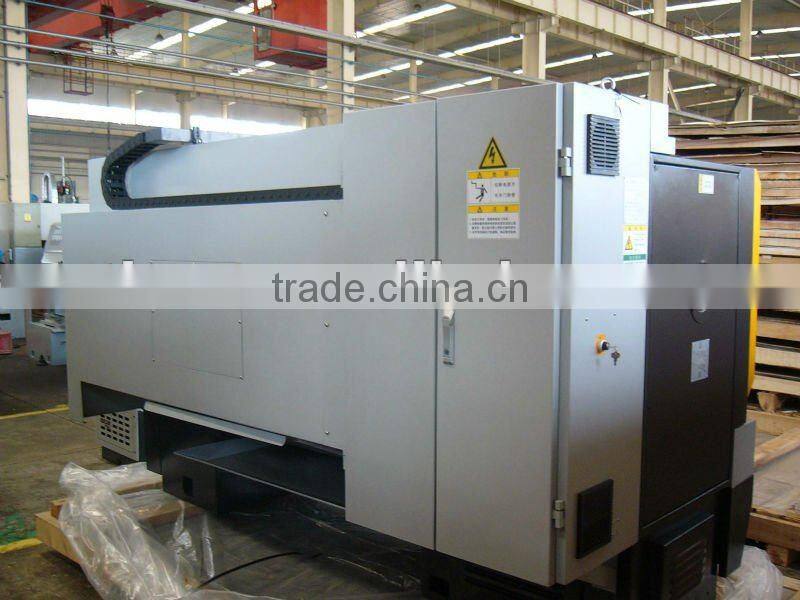

CNC lathe machine
Features:
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.

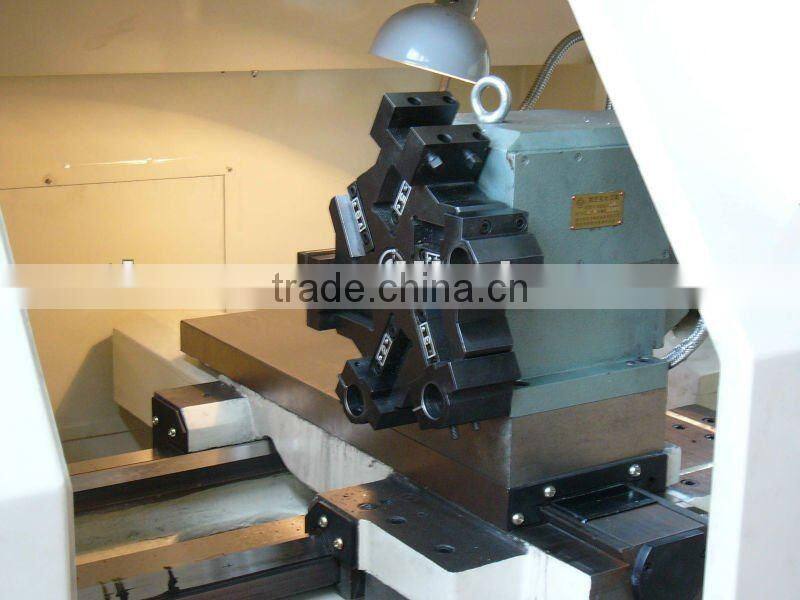

2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
| Specification | Unit | CK6140B | CK6150B | |
| Capacity | Max. swing over bed | mm | Φ400 | Φ500 |
| Max. swing over cross slide | mm | Φ200 | Φ280 | |
| Max. turning dia. | mm | Φ400 / Φ350* | Φ500/Φ350* | |
| Distance between centers | mm | 710/960/1460/1960/(620/870/1370/1870)* | ||
| Max.turning length | mm | 570/820/1320/1820/(500/750/1250/1750)* | ||
| Spindle | Spindle nose | ISO 702/IID8 or ISO 702/IA2-8 | ||
| Spindle thru-hole | mm | Φ77 | ||
| Spindle speeds | r/min | 3 gears stepless 21-1620, H:162-1620 M:66-660 L:21-210 | ||
| Spindle motor power | kw | 7.5 | ||
| Tailstock | Tailstock quill diameter | mm | Φ75 | |
| Tailstock quill taper | MT No. | Morse No.5 | ||
| Max.quill travel | mm | 150 | ||
| Tailstock cross movement | mm | ±15 | ||
| Turret | X/Z-axis rapid traverse rate | m/min | 6/12 | |
| Number of tool stations | 4(standard)/6(optional) | |||
| Tool section | mm | 25X25 | ||
| Turret travel | mm | X-axis: 275 Z-axis: 650/900/1400/1900 | ||
| Others | Dimensions(LXWXH) | mm | 2250/2500/3000/3500x1370x1690 | |
| Package dimensions(LxWxH) | mm | 2550/2800/3300/3800x1920x2200 | ||
| Net weight | kg | 2050/2100/2150/2200 | 2100/2150/2200/2260 | |
Notes: Items with * only for 6-station turret.
